VERTICAL MOTOR  WRENCH

VERTICAL MOTOR WRENCH

  • Body・Jaw are forged. High load residence.
  • Wide range of use. 15°Vertical shape. efficient piping work in narrow place.
  • Jaw is about 10mm thin. Suits to tighten pipe connecting joint.
  • TRAP WRENCH(Vertical Aluminum Motor Wrench) would be useful to use together.
  • Able to tighten/loose large diameters.
  • TMW-250 has groove on the side of jaw to tighten/loose drain trap.
  • Handle of TMW-400 is designed to be able to apply loads easily.

Material:S55C



Item No. Price
(¥)
Opening size
(mm)
Weight(g) Torque
(N・m)
Inner package JAN Code
TMW-250 9,450 16~75 660 440 6 371201
TMW-400 13,700 38~88 1,260 490 6 371171

※JAN codes are shown without the first 7 digital numbers of Maker code (4975180).
※List Price is for each unit.

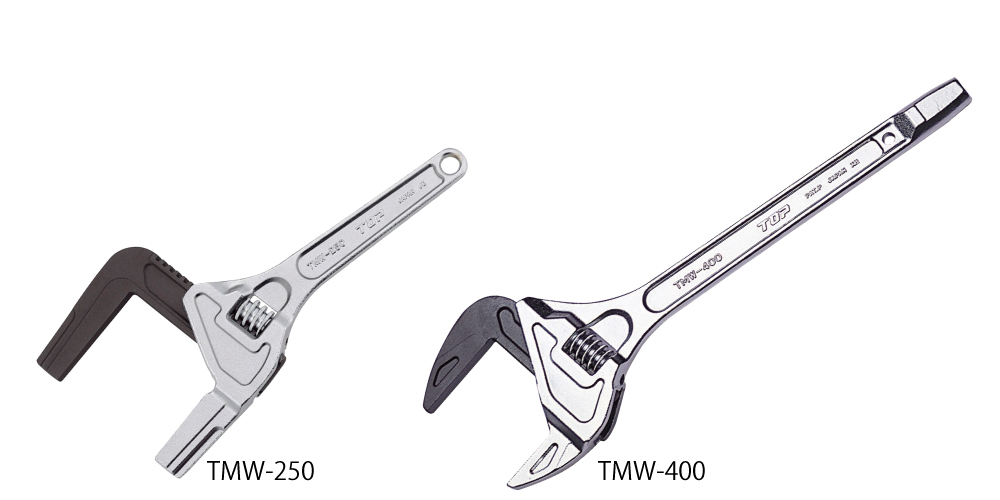

Item No. :TMW-250 TMW-400

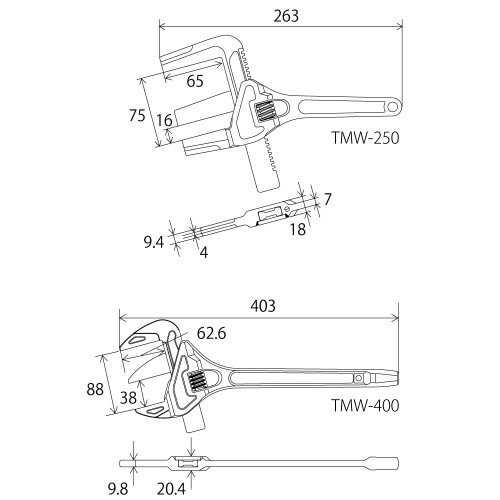

VERTICAL MOTOR  WRENCHDrawings

  • PAT

    PATPATENTED

Use

  • For tightening large diameter nut of piping work.
  • Able to tighten connecting joint/valve which nominal diameter is 50mm.
  • Able to use for less power works by aluminum trap wrench.

Caution

  • Not same resistance as monkey wrench.
  • Adjust jaw to the both-side width of bolt/nut.
  • Do not install additional pipe.
  • Do not use as a hammer.
  • Usage is only as hand tool.
