IMPACT ONE OPERATION TYPE UNIVERSAL SOCKET ADAPTER

IMPACT ONE OPERATION TYPE UNIVERSAL SOCKET ADAPTER(Square Drive 12.7mm)

  • Able to change the square drive 19.0mm(3/4”) to 12.7mm(1/2”).
  • Able to use a socket for a socket wrench by impact wrench without caring about falling off.
  • Able to use a socket for a impact wrench without O-ring and pin.
  • Using celected low materials, all made in Japan and provide safety and security.
  • Able to change the square drive 19.0mm(3/4”) to 12.7mm(1/2”).
  • Able to use a socket for a socket wrench by impact wrench without caring about falling off.
  • Able to use a socket for a impact wrench without O-ring and pin.
  • Using celected low materials, all made in Japan and provide safety and security.
  • With O-ring and pin.
  • If you have lost the O-ring and pin set and need to purchase them separately, please use OP-4.

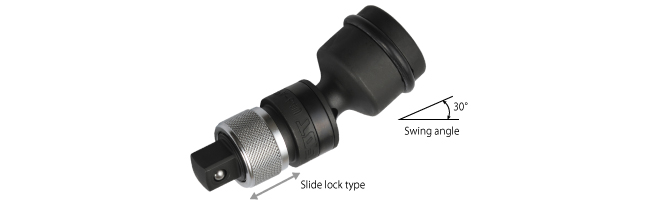

Swing angle 30 °, able to attach and detach the adopter without retainer ring and pin.



Material：SCM435

Item No. JAN Code List Price (￥） S1（mm） S2（mm） Length L（mm） Weight（ｇ） Inner Box
EPA-4U 738240 8,800 12.7（1/2”） 12.7（1/2”） 88 290 6
Item No. D1
（mm）		 D2
（mm）		 O-ring ・Pin Pin Material Package

H×W（mm）
EPA-4U 28 30 OP-4 OP-4-5P SCM435 119×40
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.

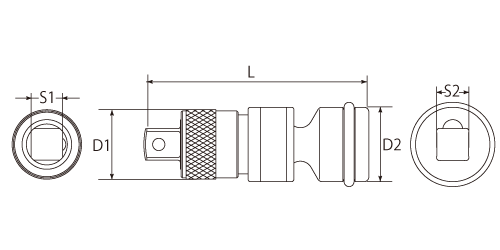

IMPACT ONE OPERATION TYPE UNIVERSAL SOCKET ADAPTERDrawings

  • impact wrench

    impact wrenchcan be used with impact wrench.

Use

  • Construction and civil engineering work.
  • Motor vehicle.
  • Suitable for assembly and dismantling of mechanical equipment.

Caution

  • Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
  • DO NOT use this tool slant and shallowly to bolt and nut.
  • DO NOT use for anything other than the purpose of use of hand tool.
