| Item No. | JAN Code | List Price （￥） |
Square Drive （mm） |
Content | Weight （ｇ） |
Inner Box | D
(mm) |
d
(mm) |
T
(mm) |
L
(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| OP-3S | 730015 | 500 | 9.5(3/8″) | O-ring ×1 Pin×1 |
3 | 10 | 13 | 3.5 | 2.5 | 14.5 |
| OP-3 | 730022 | 500 | 9.5(3/8″) | O-ring ×1 Pin×1 |
3 | 10 | 16 | 3.5 | 2.5 | 17.5 |
| EPW-3-OP | 896155 | 400 | 9.5(3/8″) | O-ring ×1 Pin×1 |
2 | 10 | 16 | 2.5 | 2.5 | 15.5 |
| Item No. | Applicable Item No. | ||||
|---|---|---|---|---|---|
| Socket | Deep Socket | Extension Bar | Universal Joint | Adapter | |
| OP-3S | PT-306～312 | PT-306L～PT-312L | – | – | EPA-3 |
| OP-3 | PT-313～323 | PT-313L～PT322L | PX-3075・3125 | PUN-3 | PAD-34 |
| EPW-3-OP | – | – | – | – | EPW-3N |
| Item No. | JAN Code | List Price （￥） |
Square Drive
（mm） |
Content | Weight （ｇ） |
Inner Box | D
(mm) |
d
(mm) |
T
(mm) |
L
(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| OP-4S | 730039 | 500 | 12.7(1/2″) | O-ring ×1 Pin×1 |
13 | 10 | 19 | 4.0 | 3.5 | 20 |
| OP-4 | 730046 | 500 | 12.7(1/2″) | O-ring ×1 Pin×1 |
13 | 10 | 24 | 4.0 | 3.5 | 25 |
| EPW-4-OP | 896070 | 400 | 12.7(1/2″) | O-ring ×1 Pin×1 |
13 | 10 | 20 | 3.0 | 3.5 | 20 |
| Item No. | Applicable Item No. | |||||||
|---|---|---|---|---|---|---|---|---|
| Socket | Deep Socket | Super Long Socket | Universal Socket | Impact Sewerage Pipe Universal Socket | Extension Bar | Universal Joint | Adapter | |
| OP-4S | PT-408~414・PHB-404~408 | PT-408L~414L | PT-410SL~414SL | – | – | – | – | EPA-4・PAD-43 |
| OP-4 | PT-415~436・PHB-410~419・ZNS-3P | PT-417L~436L | PT-417SL~36SL | PUS-417~432 | PUS-424L・PUS-430L | PX-4075・4125・425 | PUN-4S・4 | EPA-4U・46・PAD-46 |
| EPW-4-OP | ESS-17CP・EFS-21P・EPS-12GP | EPD-17L~24L | – | – | – | – | – | EPW-4N |
| Item No. | JAN Code | List Price
（￥） |
Square Drive （mm） |
Content | Weight
（ｇ） |
Inner Box | D
(mm) |
d
(mm) |
T
(mm) |
L
(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| OP-64 | 730091 | 600 | 19.0(3/4″) | O-ring ×1 Pin×11 |
5.4 | 10 | 28 | 5.0 | 4.0 | 29 |
| OP-6 | 730053 | 900 | 19.0(3/4″) | O-ring ×1 Pin×1 |
7.2 | 10 | 36 | 5.0 | 4.0 | 35 |
| OP-6M | 730107 | 1,100 | 19.0(3/4″) | O-ring ×1 Pin×1 |
9.0 | – | 45 | 5.0 | 4.0 | 45 |
| Item No. | Applicable Item No. | |||||
|---|---|---|---|---|---|---|
| Socket | Deep Socket | Universal Socket | Extension Bar | Universal Joint | Adapter | |
| OP-64 | – | – | – | – | PUN-64 | EPA-64・64U |
| OP-6 | PT-617～646 | PT-619L～646L | PUS-624～646 | PX-6175・625・633 | PUN-6 | EPA-6・PAD-64・68 |
| OP-6M | PT-650・655 | PT-650L・655L | – | – | – | – |
| Item No. | JAN Code | List Price （￥） |
Square Drive （mm） |
Content | Weight （ｇ） |
Inner Box | D
(mm) |
d
(mm) |
T
(mm) |
L
(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| OP-8 | 730060 | 1,000 | 25.4(1″) | O-ring ×1 Pin×1 |
18.3 | 10 | 45 | 7.0 | 5.0 | 45 |
| OP-8M | 730114 | 1,200 | 25.4(1″) | O-ring ×1 Pin×1 |
21 | – | 57 | 7.0 | 5.0 | 57 |
| OP-8L | 730121 | 3,000 | 25.4(1″) | O-ring ×1 Pin×1 |
27 | – | 75 | 7.0 | 5.0 | 75 |
| Item No. | Applicable Item No. | ||||
|---|---|---|---|---|---|
| Socket | Deep Socket | Extension Bar | Universal Socket | Adapter | |
| OP-8 | PT-821～865※ | PT-822L～855L※ | PX-8175・825 | PUN-8 | PAD-86 |
| OP-8M | PT-850～870※ | PT-850L～865L※ | – | – | – |
| OP-8L | PT-875・880 | – | – | – | – |
*Socket (PT-850・854・855・858・860・863・865), Deep Socket（PT-850L・855L）of O-rings and pins is different depending on the specifications.
Please check the outside diameter size of the square drive and select the appropriate O-ring and pin.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.
*List Price is for each unit.
インパクトレンチ用Oリングピンセット インパクトレンチ用オーリングピンセット OP3S OP3 EPW3OP EPW30P OP4S OP4 EPW4OP OP64 OP6 OP8

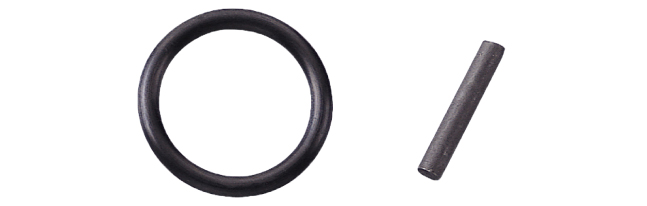

Use
- Please use this as you lost the pin or pin is deteriorated.
Caution
- Please DO NOT attach the other company’s product.
- Use it with our IMPACT SOCKETS.
- Pin is expendable.
- Please replace it as soon as possible, if you notice any abnormalities such as deformation, wear, or deterioration.
