Material:SCM435
Item No. | List Price (¥) |
Width Across Flats S(mm) |
L (mm) |
H (mm) |
D1 (mm) |
D2 (mm) |
Weight (g) |
Inner Box
(丁) |
JAN Code |
---|---|---|---|---|---|---|---|---|---|
PT-410SL | 2,700 | 10 | 80 | 10 | 15.5 | 24 | 140 | 5 | 736796 |
PT-412SL | 2,800 | 12 | 80 | 12 | 18 | 24 | 162 | 5 | 736833 |
PT-413SL | 2,800 | 13 | 80 | 13 | 19.2 | 24 | 162 | 5 | 736871 |
PT-414SL | 2,800 | 14 | 80 | 14 | 20.5 | 24 | 174 | 5 | 736918 |
PT-417SL | 2,800 | 17 | 80 | 17 | 24.2 | 29 | 232 | 5 | 736956 |
PT-419SL | 2,950 | 19 | 80 | 19 | 26.7 | 29 | 259 | 5 | 736994 |
PT-421SL | 3,200 | 21 | 80 | 21 | 29.2 | 29 | 265 | 5 | 737038 |
PT-422SL | 3,250 | 22 | 85 | 22 | 30.5 | 29 | 290 | 5 | 737090 |
PT-423SL | 3,700 | 23 | 85 | 23 | 31.7 | 29 | 300 | 5 | 737137 |

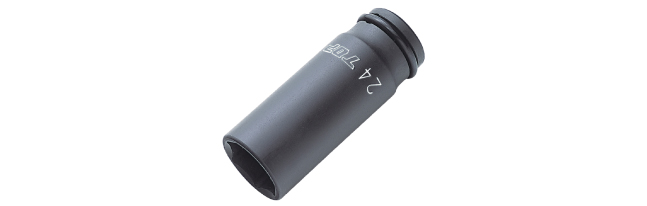

PT-424SL | 3,400 | 24 | 85 | 24 | 33 | 29 | 329 | 5 | 737175 |
PT-426SL | 3,700 | 26 | 85 | 26 | 35.5 | 29 | 350 | 5 | 737212 |
PT-427SL | 4,450 | 27 | 85 | 27 | 36.7 | 29 | 385 | 5 | 737250 |
PT-430SL | 5,500 | 30 | 85 | 30 | 40.5 | 29 | 457 | 5 | 737298 |
PT-432SL | 6,250 | 32 | 85 | 32 | 43 | 29 | 542 | 5 | 737335 |
PT-436SL | 7,100 | 36 | 85 | 36 | 48 | 29 | 635 | 5 | 737359 |
Item No. | O-ring・Pin | Pin |
---|---|---|
PT-410SL | OP-4S | OP-4S-5P |
PT-412SL | OP-4S | OP-4S-5P |
PT-413SL | OP-4S | OP-4S-5P |
PT-414SL | OP-4S | OP-4S-5P |
PT-417SL | OP-4 | OP-4-5P |
PT-419SL | OP-4 | OP-4-5P |
PT-421SL | OP-4 | OP-4-5P |
PT-422SL | OP-4 | OP-4-5P |
PT-423SL | OP-4 | OP-4-5P |
PT-424SL | OP-4 | OP-4-5P |
PT-426SL | OP-4 | OP-4-5P |
PT-427SL | OP-4 | OP-4-5P |
PT-430SL | OP-4 | OP-4-5P |
PT-432SL | OP-4 | OP-4-5P |
PT-436SL | OP-4 | OP-4-5P |
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.
Use
- For attaching and detaching a bolt and nut.
- Suiteble for tightenning steel connection bolts such as H steel.
Caution
- O-ring and pin are consumable.
- Please replace it as soon as possible if you notice any abnormalities such as deformation, wear, or deterioration.
- Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
- DO NOT use for anything other than the purpose of use of hand tool.
