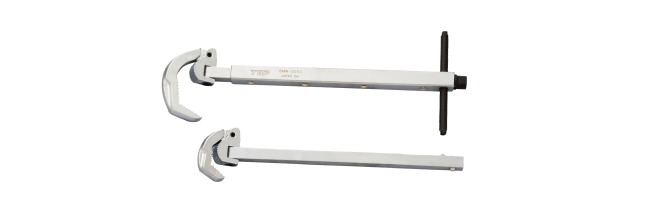

WASHSTAND SINK WRENCH SET

WASHSTAND SINK WRENCH SET

  • A convenient set that can be used as both a wash wrench and a sink wrench by simply exchanging the head.
  • It includes WASHSTAND WRENCH (SMW-1032H), SINK WRENCH(SMW-3050H), and handle.

Material：S55C

Item No. List Price

（￥）

 Set Opening Width
（mm）		 Weight
（g）		 Guaranteed Torque
（ N・m）		 Package
（H×W）		 Inner Box JAN Code
SMW-1050S 16,800 SMW-3050

SMW-1032H

 10～32（SMW-1032H）

30～50(SMW-3050H)

 1,020 100 360×130 3 290502
*JAN Codes are shown by 6 digits numbers which removed maker code (4975180).
*The price is for each unit.
SMW1050S

Ohters

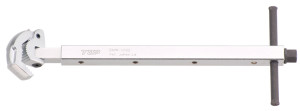

WASHSTAND WRENCH  ( Item No.：SMW-1032）
Use: Best for attaching and detaching to the tighten nut on water shut off valves and water pipes.For installation and removal of washbasins.
SMW-3050  SINK WRENCH(Item No.：SMW-3050）
Use: Best for plumbing work for sinks, washbasins, etc.For attaching nuts of single lever mixer taps.

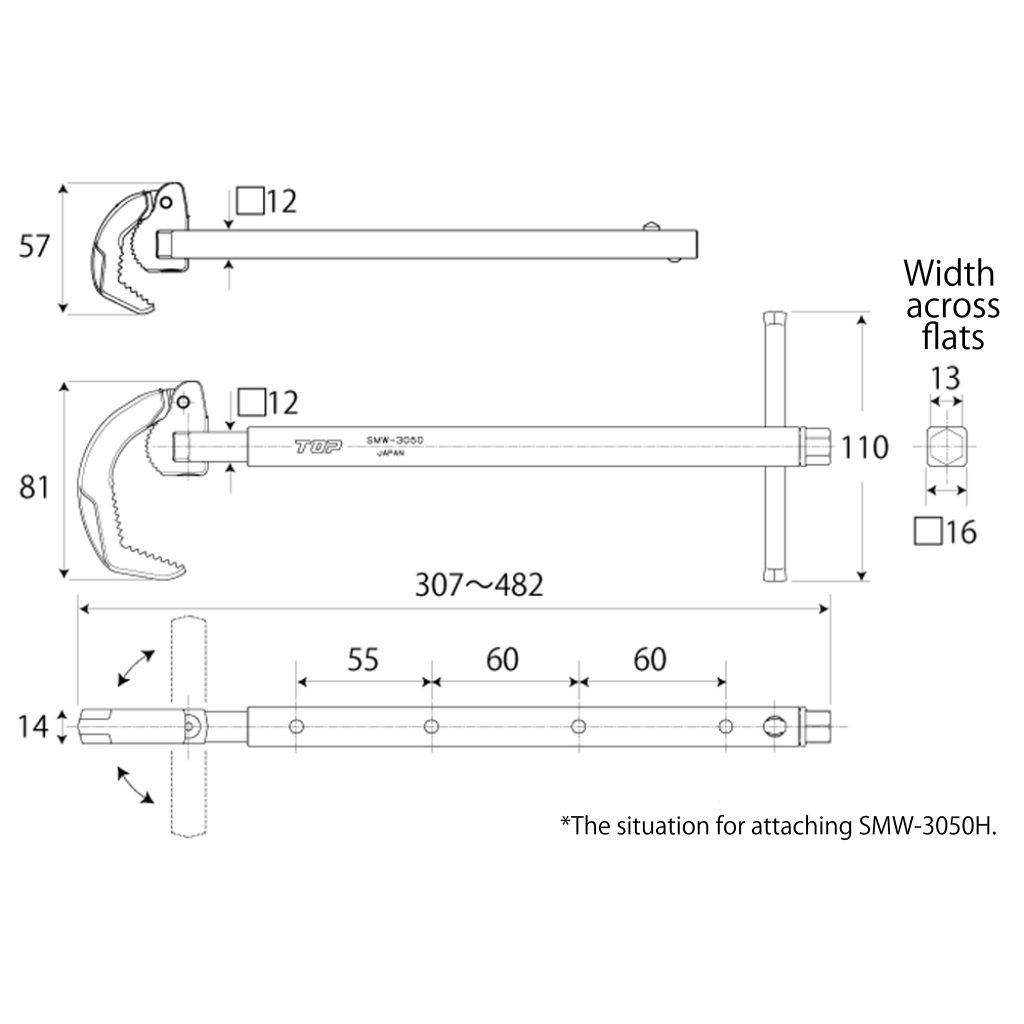

WASHSTAND SINK WRENCH SETDrawings

  • PAT

    PATPATENTED

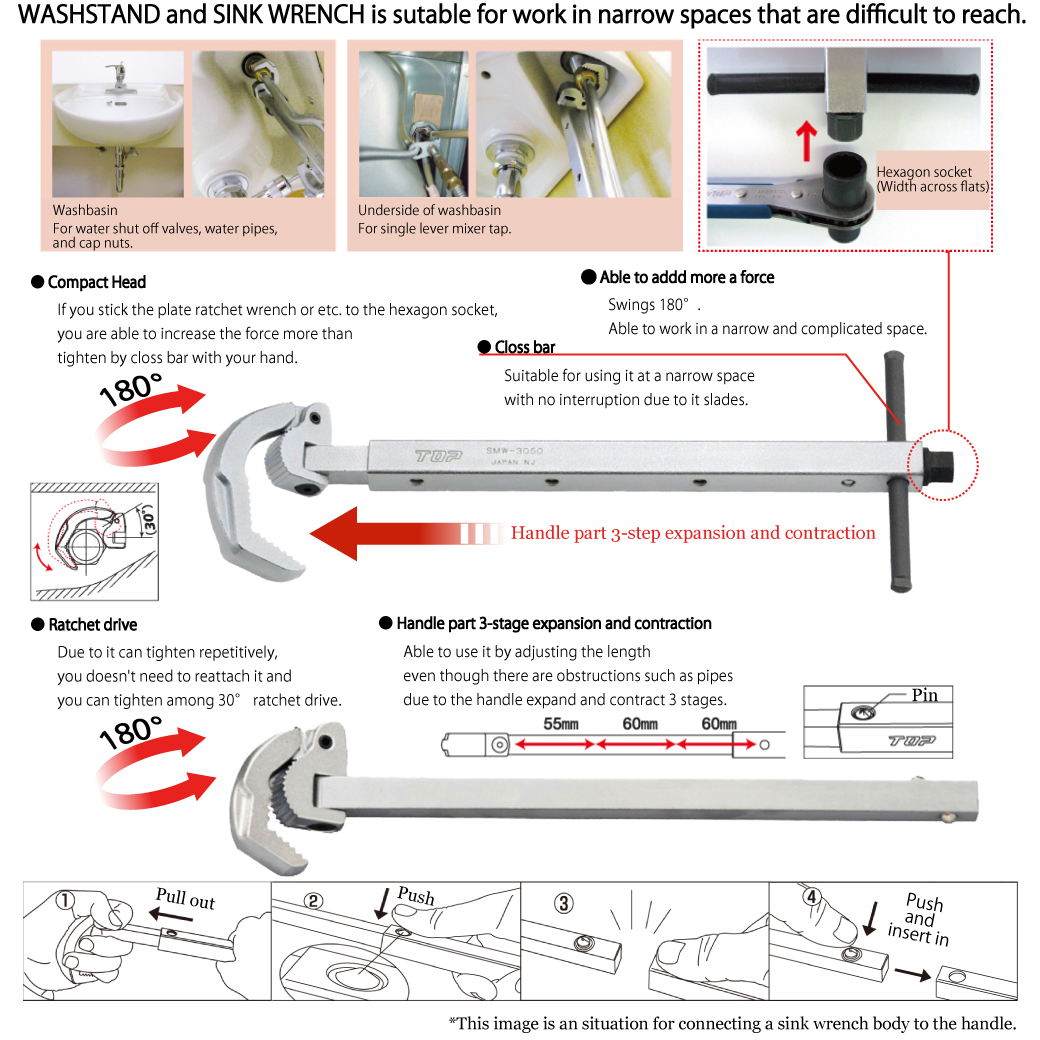

Use

  • Best for attaching and detaching to tighten nuts and cap nuts.
  • For installing and removing wash basin.
  • For plumbing work for sinks, washbowls, and etc.
  • For attaching the nuts of the single lever mixer taps.

Caution

  • DO NOT use it to be slantingly and shallowly.
  • DO NOT stick a pipe into the clossbar to use.
  • Use the wrench and the socket (13 mm) if you tighten more than as you use a cross bar.
  • DO NOT apply excessive force beyond the guaranteed torque value staying the head horizontal and the handle part extended.
  • Please pull the handle part slow. It is dengerous if you pull it vigorously due to the lock does not engage at maximum extension and comes out.
  • Pay attention to do not to get your fingers caught in the handle as you expand and contract the handle and when replacing the head.
  • Set the pin and the hole correctly. If not, it is dangerous due to the pin (conical) and the hole(one side) will not be locked.
  • DO NOT use for purposes other than as a hand tool.
