IMPACT ONE OPERATION TYPE SOCKET ADAPTER

IMPACT ONE OPERATION TYPE SOCKET ADAPTER((Square Drive 9.5mm) (Square Drive 12.7mm) (Square Drive19.0mm))

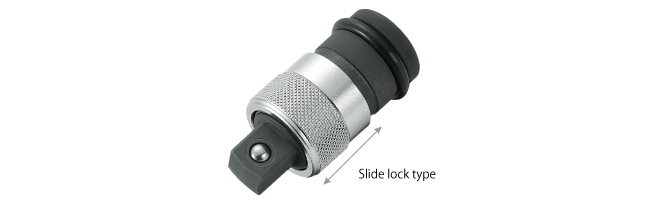

  • It is slide lock type, able to attach and detach the sockets by one operation.
  • In addition to the socket wrenches socket, you do nto need a O-ring and pin.
  • With O-ring and pin.
Item No. JAN Code List Price（￥） S1（mm） S2（mm） L（mm） Weight（ｇ） Inner Box
EPA-3 738226 6,900 9.5（3/8”） 9.5（3/8”） 45 67 6
EPA-4 738233 7,300 12.7（1/2”） 12.7（1/2”） 60 153 6
EPA-6 738301 13,500 19.0（3/4”） 19.0（3/4”） 75 510 2
Item No. D1（mm） D2（mm） Material O-ring・Pin Pin Package（mm）
H×W
EPA-3 22 19 SCM435 OP-3S OP-3S-5P 73×40
EPA-4 28 25 SCM435 OP-4S OP-4S-5P 80×40
EPA-6 42 44 SCM435 OP-6 OP-6-5P 106X44
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.

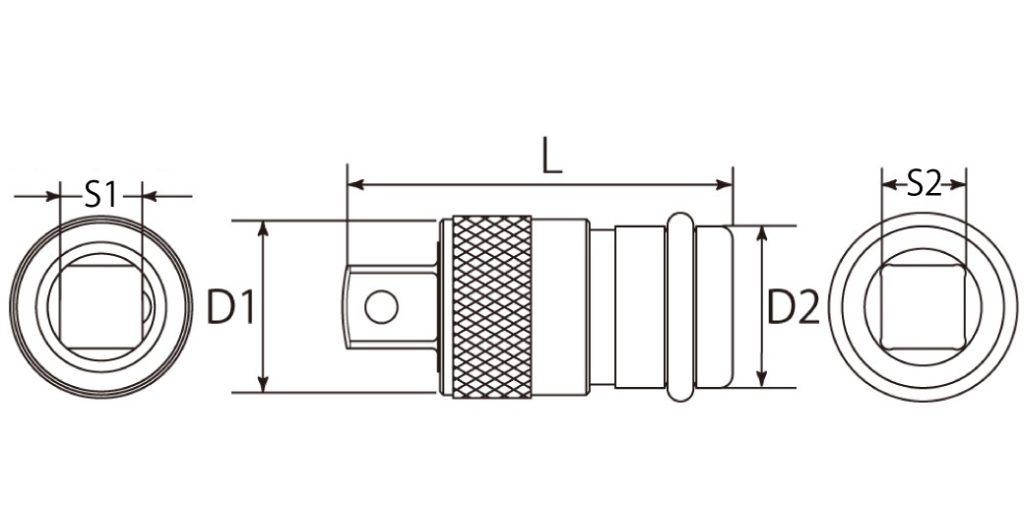

IMPACT ONE OPERATION TYPE SOCKET ADAPTERDrawings

  • impact wrench

    impact wrenchcan be used with impact wrench.

Use

  • Suitable for assembling and dismantling construction, civil engineering, automobile, and machine equipment.

Caution

  • Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
  • DO NOT use this tool slantly and shallowly to bolt and nut.
  • DO NOT use for anything other than the purpose of use of hand tool.
