Material:SCM435
Item No. | List Price (¥) |

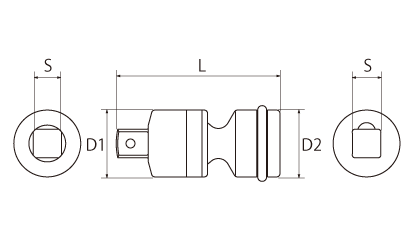

Square Drive
S |
L (mm) |
D1 (mm) |
D2 (mm) |
Weight (g) |
Package(mm) H×W |
Inner Box (丁) |
JAN Code |
---|---|---|---|---|---|---|---|---|---|
PUN-3 | 6,250 | 9.5(3/8″) | 58 | 24 | 22 | 110 | 89×40 | 5 | 722300 |
Item No. | Price No. (¥) |
Square Drive
S |
L (mm) |
D1 (mm) |
D2 (mm) |
Weight (g) |
Package(mm) H×W |
Inner Box (丁) |
JAN Code |
---|---|---|---|---|---|---|---|---|---|
PUN-4 | 7,800 | 12.7(1/2″) | 73.5 | 30 | 30 | 210 | 105×40 | 5 | 737847 |
Item No. | List Price (¥) |
Square DriveS (mm) |
L (mm) |
D1 (mm) |
D2 (mm) |
Weight (g) |
Package(mm) H×W |
JAN Code |
---|---|---|---|---|---|---|---|---|
PUN-6 | 13,500 | 19.0(3/4″) | 108 | 44 | 44 | 790 | 139×44 | 727374 |
Item No. | List Price (¥) |
Square Drive
S |
L (mm) |
D1 (mm) |
D2 (mm) |
Weight (g) |
Package(mm) H×W |
JAN Code |
---|---|---|---|---|---|---|---|---|
PUN-8 | 19,000 | 25.4(1″) | 126 | 54 | 54 | 1,210 | 157×54 | 729828 |
Item No. | O-ring・Pin | Pin |
---|---|---|
PUN-3 | OP-3 | OP-3-5P |
PUN-4 | OP-4 | OP-4-5P |
PUN-6 | OP-6 | OP-6-5P |
PUN-8 | OP-8 | OP-8-5P |
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.
Use
- Suitable for a construction, civil engineering working, motor vehicle, and assembling and dismantling of mechanical equipment.
- Suitable for working near a wall or in a narrow space.
Caution
- Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
- Using this tool slantly and shallowly to bolt and nut might be the cause of breakage.
- DO NOT use for anything other than the purpose of use of hand tool.
