IMPACT ONE OPERATION TYPE SOCKET ADAPTOR

IMPACT ONE OPERATION TYPE SOCKET ADAPTOR(Conversion type) (Square Drive 12.7mm) (Square Drive 19.0mm)

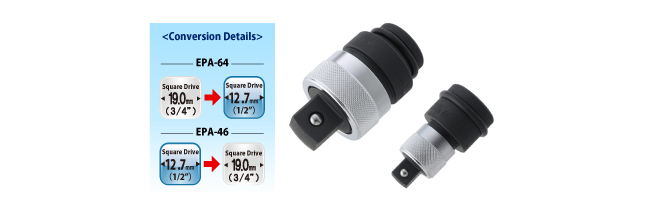

  • This is the conversion type socket adapter that is able to insert the socket which is different with its square drive size.

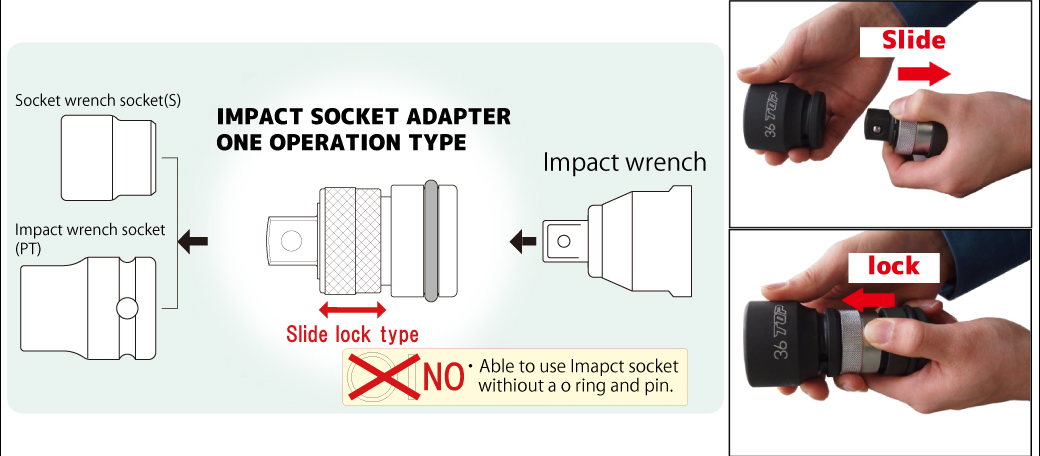

  • Slide lock type, able to attach and detach the socket by one operation.
  • With the O-ring and pin.

Slide lock and one operation type!



Item No. JAN Code List Price
（￥）		 Convex
（mm）		 Concave
（mm）		 Package
（mm）		 Weight（ｇ） O-ring ・Pin Pin Inner Box
EPA-46 738264 11,400 19.0 12.7 115×40 452 OP-4 OP-4-5P 2
EPA-64 738271 11,400 12.7 19.0 110×40 237 OP-64 OP-64-5P 6
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.

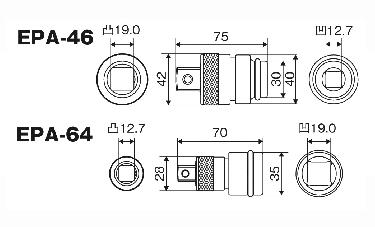

IMPACT ONE OPERATION TYPE SOCKET ADAPTORDrawings

  • impact wrench

    impact wrenchcan be used with impact wrench.

Use

  • Construction and civil engineering work.
  • Motor vehicle.
  • Suitable for assembling and dismantling of mechanical equipment.

Caution

  • Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
  • As you attach an impact socket to an oneoparation type adaptor, please be sure to attach the pin hole to the falling prevention ball of adaptor is matched.
  • DO NOT use for anything other than the purpose of use of hand tool.
