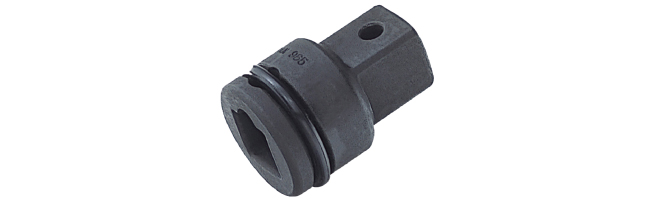

Material:SCM435
Item No. | List Price (¥) |

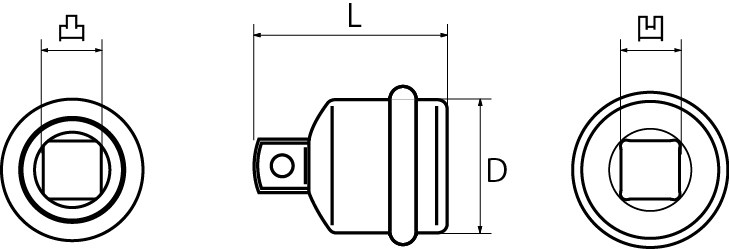

Square Drive | Length
L |
D (mm) |
Weight (g) |
Package(mm) H×W |
Inner Box (丁) |
JAN Code | |
---|---|---|---|---|---|---|---|---|---|
凹(mm) | 凸(mm) | ||||||||
PAD-34 | 3,250 | 9.5(3/8″) | 12.7(1/2″) | 32.5 | 22 | 53 | 74×40 | 5 | 722225 |
Item No. | List Price (¥) |
Square Drive | Length L (mm) |
D (mm) |
Weight (g) |
Package(mm) H×W |
Inner Box (丁) |
JAN Code | |
---|---|---|---|---|---|---|---|---|---|
凹(mm) | 凸(mm) | ||||||||
PAD-43 | 3,400 | 12.7(1/2″) | 9.5(3/8″) | 37.5 | 25 | 135 | 80×40 | 5 | 737687 |
PAD-46 | 3,700 | 12.7(1/2″) | 19.0(3/4″) | 44 | 30 | 146 | 86×40 | 5 | 737724 |
Item No. | List Price (¥) |
Square Drive | Length L (mm) |
D (mm) |
Weight (g) |
Package(mm) H×W |
Inner Box (丁) |
JAN Code | |
---|---|---|---|---|---|---|---|---|---|
凹(mm) | 凸(mm) | ||||||||
PAD-64 | 4,950 | 19.0(3/4″) | 12.7(1/2″) | 54 | 44 | 310 | 94×40 | 5 | 727107 |
PAD-68 | 6,750 | 19.0(3/4″) | 25.4(1″) | 62 | 44 | 435 | 102×40 | 5 | 727299 |
Item No. | List Price (¥) |
Square Drive | Length L (mm) |
D (mm) |
Weight (g) |
Inner Box (丁) |
JAN Code | |
---|---|---|---|---|---|---|---|---|
凹(mm) | 凸(mm) | |||||||
PAD-86 | 7,700 | 25.4(1″) | 19.0(3/4″) | 66.5 | 54 | 580 | 5 | 729743 |
Item No. | O-ring・Pin | Pin |
---|---|---|
PAD-34 | OP-3 | OP-3-5P |
PAD-43 | OP-4S | OP-4S-5P |
PAD-46 | OP-4 | OP-4-5P |
PAD-64 | OP-6 | OP-6-5P |
PAD-68 | OP-6 | OP-6-5P |
PAD-86 | OP-8 | OP-8-5P |
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.
Use
- For connecting different square drive size of socket and wrench.
Caution
- It will cause to break the adapter and get injury to apply too much force by a large wrench.
- Chose proper size witch match with the width across flats or bolt or nut.
- Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
