Item No. | JAN Code | List Price(¥) | Square Drive S(mm) | Length L(mm) | Weight(g) | Inner Box |
---|---|---|---|---|---|---|
EPW-3N | 221858 | 4,000 | 9.5(3/8”) | 42 | 60 | 6丁 |
EPW-4N | 221827 | 4,200 | 12.7(1/2”) | 49 | 80 | 6丁 |
Item No. | Socket Outside Diameter
D(mm) |
Bit (mm) |
Package(mm) | O-ring・Pin | Pin | Material |
---|---|---|---|---|---|---|
H×W | ||||||
EPW-3N | 20 | 6.35 | 82×40 | EPW-3-OP | EPW-3-5P | SCM435 |
EPW-4N | 24 | 6.35 | 89×40 | EPW-4-OP | EPW-4-5P | SCM435 |
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.

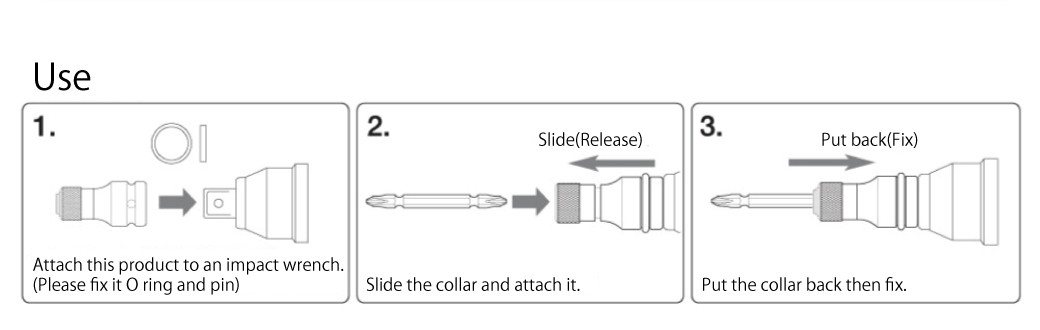

Use

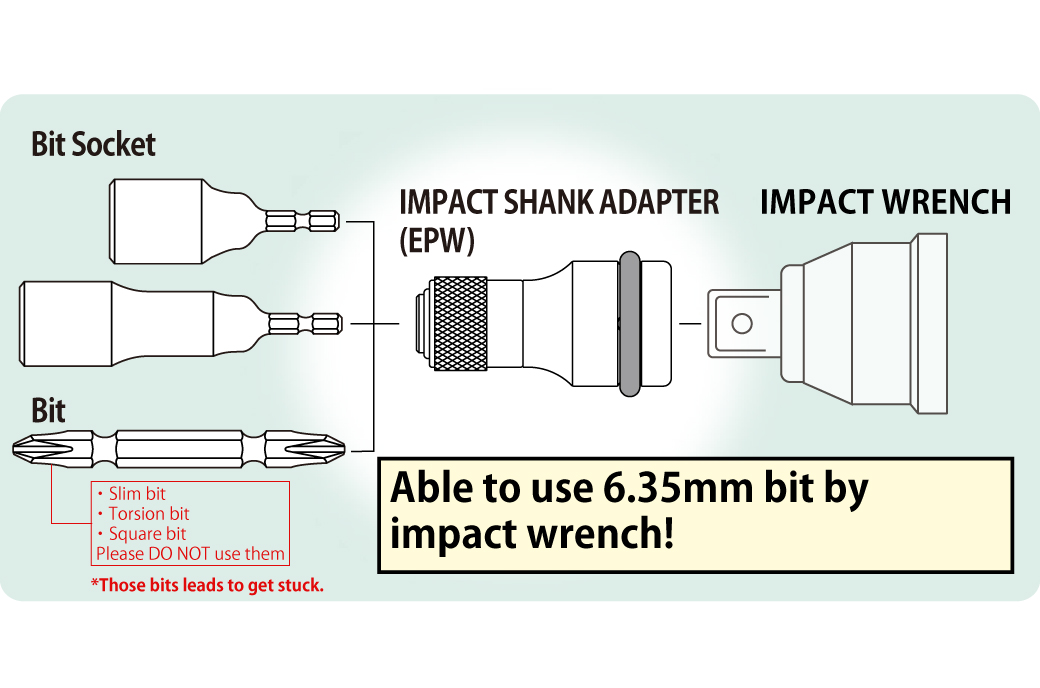

- Able to use 6.35mm bit tool by attaching it to the impact wrench.
- The variety of usable bit tools will be greatly increased.
Caution
- Using slim bits, torsion bits, and square bits may cause getting stuck.
- Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
- Using this tool slantly and shallowly to bolt and nut might be the cause of breakage.
- DO NOT use for anything other than the purpose of use of hand tool.
