Item No. | JAN Code | List Price(¥) | Nominal Size(mm) | Length
L(mm) |
Weight
(g) |
Inner Box |
---|---|---|---|---|---|---|

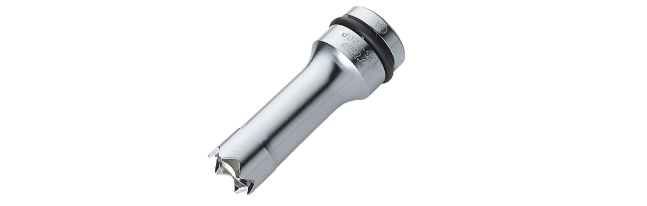

EPS-12GP | 221537 | 2,900 | 12 | 70 | 100 | 6丁 |
Item No. | Socket Outside Diameter
D |
Hexagon Depth
H |
Socket Depth
ℓ |
Package
(mm) |
O-ring・Pin | Pin | Material |
---|---|---|---|---|---|---|---|
H×W | |||||||
EPS-12GP | 25 | 12 | 52 | 110×40 | EPW-4-OP | EPW-4-5P | SCM435 |
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.
Use

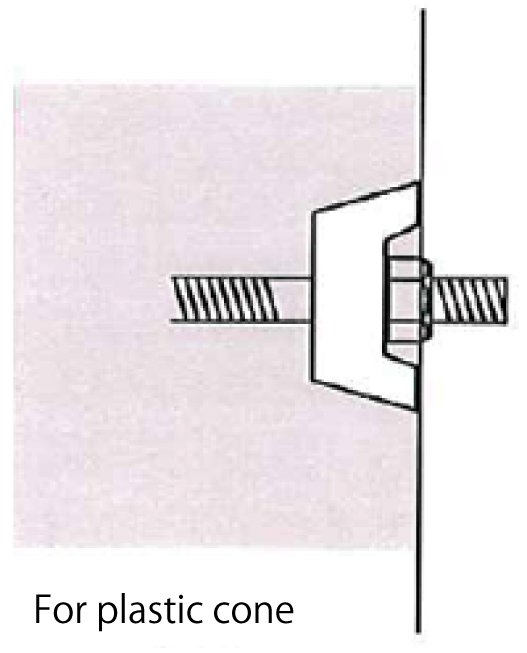

- Suitable for attaching and detaching plastic cones to use an impact wrench.
Caution
- O-ring and pin are consumable.
- Please replace it as soon as possible if you notice any abnormalities such as deformation, wear, or deterioration.
- Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
- DO NOT use for anything other than the purpose of use of hand tool.
