Material:SCM435

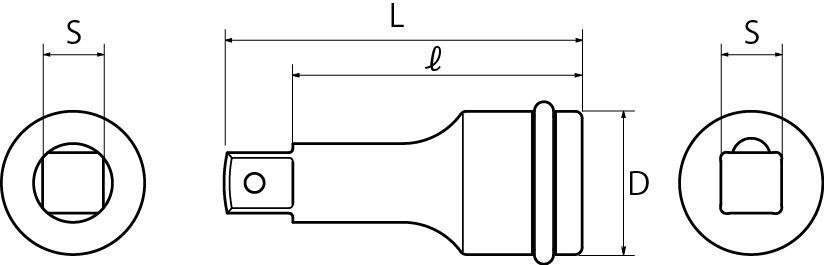

Item No. | List Price (¥) |
Square Drive
S |
L (mm) |
ℓ (mm) |
D (mm) |
Weight (g) |
Package(mm) H×W |
Inner Box (丁) |
JAN Code |
---|---|---|---|---|---|---|---|---|---|
PX-3075 | 2,950 | 9.5(3/8″) | 75 | 64 | 22 | 95 | 117×40 | 5 | 722065 |
PX-3125 | 3,100 | 9.5(3/8″) | 125 | 114 | 22 | 141 | 168×40 | 5 | 722140 |
Item No. | List Price (¥) |
Square Drive
S |
L (mm) |
ℓ (mm) |
D (mm) |
Weight (g) |
Package(mm) H×W |
Inner Box (丁) |
JAN Code |
---|---|---|---|---|---|---|---|---|---|
PX-4075 | 3,800 | 12.7(1/2″) | 75 | 60 | 30 | 188 | 117×40 | 5 | 737502 |

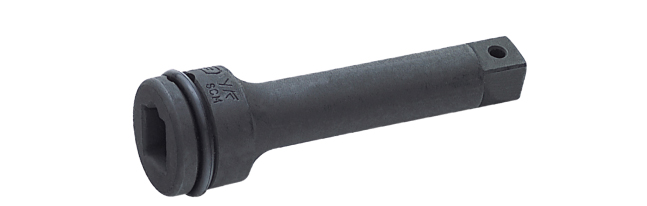

PX-4125 | 4,050 | 12.7(1/2″) | 125 | 110 | 30 | 275 | 168×40 | 5 | 724434 |
PX-425 | 5,250 | 12.7(1/2″) | 250 | 235 | 30 | 480 | 292×40 | 5 | 724519 |
Item No. | List Price (¥) |
Square Drive
S |
L (mm) |
ℓ (mm) |
D (mm) |
Weight (g) |
Package(mm) H×W |
JAN Code |
---|---|---|---|---|---|---|---|---|
PX-6175 | 7,400 | 19.0(3/4″) | 175 | 155 | 44 | 870 | 217×40 | 726803 |
PX-625 | 8,500 | 19.0(3/4″) | 250 | 230 | 44 | 1,150 | 292×40 | 726995 |
PX-633 | 9,950 | 19.0(3/4″) | 330 | 310 | 44 | 1,460 | 372×40 | 727022 |
Item No. | List Price (¥) |
Square Drive
S |
L (mm) |
ℓ (mm) |
D (mm) |
Weight (g) |
JAN Code |
---|---|---|---|---|---|---|---|
PX-8175 | 12,850 | 25.4(1″) | 175 | 149 | 54 | 1,400 | 729583 |
PX-825 | 14,000 | 25.4(1″) | 250 | 224 | 54 | 1,8850 | 729668 |
Item No. | O-ring・Pin | Pin |
---|---|---|
PX-3075 | OP-3 | OP-3-5P |
PX-3125 | OP-3 | OP-3-5P |
PX-4075 | OP-4 | OP-4-5P |
PX-4125 | OP-4 | OP-4-5P |
PX-425 | OP-4 | OP-4-5P |
PX-6175 | OP-6 | OP-6-5P |
PX-625 | OP-6 | OP-6-5P |
PX-633 | OP-6 | OP-6-5P |
PX-8175 | OP-8 | OP-8-5P |
PX-825 | OP-8 | OP-8-5P |
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.
*List Price is for each unit.
Use
- Suitable for a construction, civil engineering working, motor vehicle, and assembling and dismantling of mechanical equipment.
- Suitable for working near a wall or in a narrow space.
Caution
- Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
- Using this tool slantly and shallowly to bolt and nut might be the cause of breakage.
- DO NOT use for anything other than the purpose of use of hand tool.
