| Item No. | JAN Code | List Price（￥） | Nominal Size（mm） | Length
L（mm） |
Weight（ｇ） | Inner Box |
|---|---|---|---|---|---|---|
| EFS-21P | 223067 | 3,500 | 21 | 75 | 180 | 6丁 |
| Item No. | Socket Outside Diameter
D |
Dodecagon Depth
H |
Socket Depth
ℓ |
Package（mm） | O-ring・Pin | Pin | Material |
|---|---|---|---|---|---|---|---|
| H×W | |||||||
| EFS-21P | 29 | 18 | 47 | 115×40 | EPW-4-OP | EPW-4-5P | SCM435 |
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.
*List Price is for each unit.
-

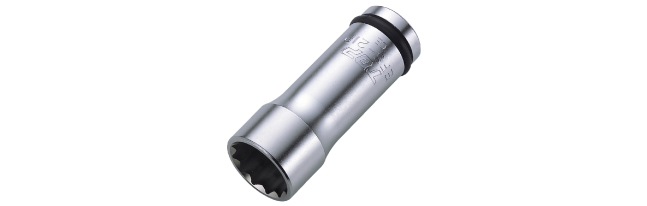

deep socketdeep socket for quick double nuts operation. It also holds nut by depth.
-
12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.
-
impact wrenchcan be used with impact wrench.
Use
- Suitable for disassemling form-ties touse impact wrench.
- Able to tighten ivy form-ties(150mm type) and double tighten a single tube at once.
Caution
- Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
- Using this tool slantly and shallowly to bolt and nut might be the cause of breakage.
- DO NOT use for anything other than the purpose of use of hand tool.
