Item No. | JAN Code | List Price(¥) | Nominal Size(mm) | Length L(mm) | Weight(g) | Inner Box |
---|---|---|---|---|---|---|
EPD-17L | 220479 | 3,850 | 17 | 120 | 180 | 6丁 |
EPD-19L | 220486 | 4,000 | 19 | 120 | 200 | 6丁 |
EPD-21L | 220493 | 4,200 | 21 | 120 | 215 | 6丁 |
EPD-24L | 220509 | 4,500 | 24 | 120 | 250 | 6丁 |
Item No. | Socket Outside Diameter
D |
Hexagon Part Depth
H |
Socket Depth
ℓ |
Package(mm) | O-ring・Pin | Pin | Material |
---|---|---|---|---|---|---|---|
H×W | |||||||
EPD-17L | 25 | 30 | 100 | 160×40 | EPW-4-OP | EPW-4-5P | SCM435 |
EPD-19L | 27.2 | 30 | 100 | 160×40 | SCM435 | ||
EPD-21L | 29.2 | 30 | 100 | 160×40 | SCM435 | ||
EPD-24L | 33 | 30 | 100 | 160×40 | SCM435 |
*Click here for a list of O-rings and pins.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.
*List Price is for each unit.
-
impact drill driverimpact drill driver which is more powerful than ordinary electric impact screw drivers.
-

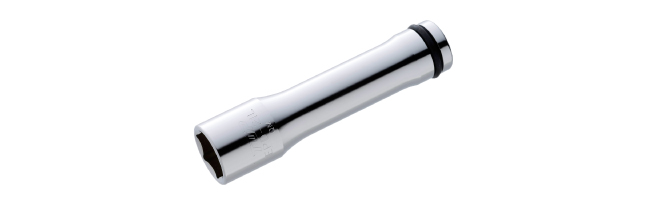

deep socketdeep socket for quick double nuts operation. It also holds nut by depth.
-
6 points (round corners)6 points (round corners) socket has surface fit design which prevents damaging of bolts or nuts. 6 points sockets are standard for electric impact screw driver accessories.
Use
- Suitable for assembling and dismantling formwork or etc to use impact wrench.
Caution
- Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
- Using this tool slantly and shallowly to bolt and nut might be the cause of breakage.
- DO NOT use for anything other than the purpose of use of hand tool.
