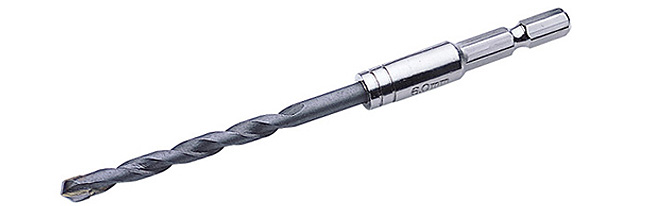

CONCRETE DRILL BIT

CONCRETE DRILL BIT

  • For drilling Mortar/Block/Brick/Plasterboard
  • Brazed cemented carbide chip keeps sharp cutting.
  • Easy fitting as it is hexagon shaft.
Item No. JAN code List Price(¥) Nominal Diameter(㎜) Length(㎜) Weight(g) Inner Box(pcs)
ECD-2.5 886927 1,400 2.5 100 14 6
ECD-3.0 889669 1,400 3.0 100 14 6
ECD-3.2 889676 1,400 3.2 100 14 6
ECD-3.4 889683 1,400 3.4 100 15 6
ECD-3.5 889690 1,400 3.5 100 15 6
ECD-3.8 889706 1,400 3.8 100 15 6
ECD-4.0 889713 1,400 4.0 100 15 6
ECD-4.3 889720 1,500 4.3 108 22 6
ECD-4.4 889737 1,500 4.4 108 22 6
ECD-4.5 889744 1,500 4.5 108 22 6
ECD-4.8 889751 1,500 4.8 108 23 6
ECD-5.0 889768 1,650 5.0 123 24 6
ECD-5.3 889775 1,800 5.3 123 27 6
ECD-5.5 889782 1,800 5.5 123 27 6
ECD-6.0 889799 1,800 6.0 123 28 6
ECD-6.4 889805 1,850 6.4 123 30 6
ECD-6.5 889812 1,850 6.5 123 30 6
Item No. Flute Length
(mm)
Effective Length

ℓ(mm)

Package(mm) Material
H×W
ECD-2.5 30 52 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-3.0 33 52 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-3.2 36 52 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-3.4 39 52 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-3.5 39 52 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-3.8 43 52 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-4.0 43 52 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-4.3 47 56 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-4.4 47 56 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-4.5 47 56 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-4.8 52 56 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-5.0 52 71 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-5.3 52 71 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-5.5 57 71 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-6.0 57 71 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-6.4 63 71 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
ECD-6.5 63 71 180×35 Cemented Carbide Chip
Core:SCM435
Shank:S45C
※JAN codes are shown without the first 7 digital maker code(4975180)
※List Price is for each unit.
※ECD-2.8 is discontinued.

Item No.  ECD-2.5 ECD-2.8 ECD-3.0 ECD-3.2 ECD-3.4 ECD-3.5 ECD-3.8 ECD-4.0 ECD-4.3 ECD-4.4 ECD-4.5 ECD-4.8 ECD-5.0 ECD-5.3 ECD-5.5 ECD-6.0 ECD-6.4 ECD-6.5

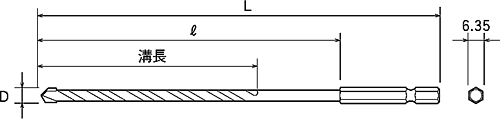

CONCRETE DRILL BITDrawings

Use

  • For drilling mortar/block/brick/plasterboard.

Caution

  • Wear eye-protector while working using the tool.
  • DO NOT wear gloves to use drill.
  • NOT for heat-treated iron plate.
  • Too much impact may damage the tool.
  • To use for small object, fix it by vise pliers.
