COBALT DRILL BIT

COBALT DRILL BIT

  • For drilling Iron/Stainless Steel. Sharp cut.

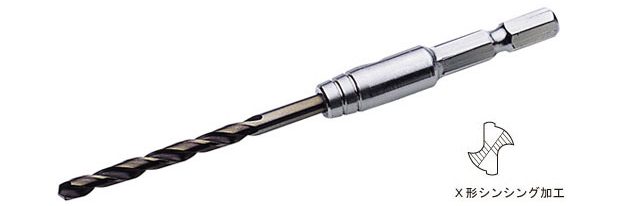

  • Assessed X-shape thinning on the top of the blade.
  • Hexagon shank shaft. Easy to install to impact driver.
Item No. JAN code List Price(¥) Nominal Diameter(㎜) Length L(㎜) Weight(g) Inner Box(pcs)
EOD-2.0 889829 1,350 2.0 79 13 6
EOD-2.5 889836 1,350 2.5 87 13 6
EOD-2.8 889843 1,350 2.8 91 14 6
EOD-3.0 889850 1,350 3.0 91 14 6
EOD-3.2 889867 1,400 3.2 95 15 6
EOD-3.3 889874 1,400 3.3 95 15 6
EOD-3.4 889881 1,400 3.4 100 15 6
EOD-3.5 889898 1,350 3.5 100 15 6
EOD-3.6 889904 1,500 3.6 100 16 6
EOD-3.7 889911 1,500 3.7 100 16 6
EOD-3.8 889928 1,500 3.8 108 21 6
EOD-4.0 889935 1,500 4.0 108 22 6
EOD-4.2 889942 1,900 4.2 108 22 6
EOD-4.5 889959 1,900 4.5 113 25 6
EOD-5.0 889966 1,900 5.0 119 27 6
EOD-5.5 889973 2,300 5.5 126 29 6
EOD-6.0 889980 2,300 6.0 126 31 6
EOD-6.5 889997 2,450 6.5 134 34 6
Item No. Drill

Fulute Length
(mm)

Drill

Effective Length
ℓ(mm)

Package
(mm)
Material
H×W
EOD-2.0 24 31 180×35
Cobalt High Speed Steel(CO HSS)
EOD-2.5 30 39 180×35
Cobalt High Speed Steel(CO HSS)
EOD-2.8 33 43 180×35 Cobalt High Speed Steel(CO HSS)
EOD-3.0 33 43 180×35 Cobalt High Speed Steel(CO HSS)
EOD-3.2 36 47 180×35 Cobalt High Speed Steel(CO HSS)
EOD-3.3 36 47 180×35 Cobalt High Speed Steel(CO HSS)
EOD-3.4 39 52 180×35 Cobalt High Speed Steel(CO HSS)
EOD-3.5 39 52 180×35 Cobalt High Speed Steel(CO HSS)
EOD-3.6 39 52 180×35 Cobalt High Speed Steel(CO HSS)
EOD-3.7 39 52 180×35 Cobalt High Speed Steel(CO HSS)
EOD-3.8 43 56 180×35 Cobalt High Speed Steel(CO HSS)
EOD-4.0 43 56 180×35 Cobalt High Speed Steel(CO HSS)
EOD-4.2 43 56 180×35 Cobalt High Speed Steel(CO HSS)
EOD-4.5 47 61 180×35 Cobalt High Speed Steel(CO HSS)
EOD-5.0 52 67 180×35 Cobalt High Speed Steel(CO HSS)
EOD-5.5 57 74 180×35 Cobalt High Speed Steel(CO HSS)
EOD-6.0 57 74 180×35 Cobalt High Speed Steel(CO HSS)
EOD-6.5 63 82 180×35 Cobalt High Speed Steel(CO HSS)
※JAN codes are shown without the first 7 digital maker code(4975180)
※List Price is for each unit.

Item No.  EOD-2.0 EOD-2.5 EOD-2.8 EOD-3.0 EOD-3.2 EOD-3.3 EOD-3.4 EOD-3.5 EOD-3.6 EOD-3.7 EOD-3.8 EOD-4.0 EOD-4.2 EOD-4.5 EOD-5.0 EOD-5.5 EOD-6.0 EOD-6.5

COBALT DRILL BITDrawings

  • shank

    shank

Use

  • Stainless Steel.
  • For Drilling Iron.

Caution

  • Wear eye protector.
  • Do not wear glove. It may get caught by drill.
  • Cannot use for drilling heat-treated Iron.
  • Too much impact may cause damage to the blade.
  • Hold the object tightly by Vice Prier.
