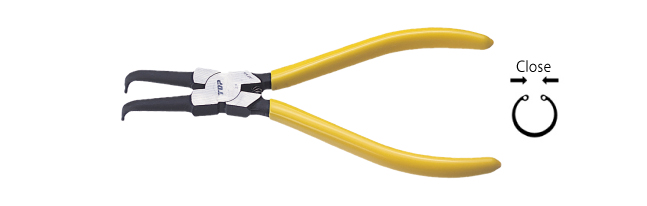

BENT SNAP RING PLIERS HOLE TYPE

BENT SNAP RING PLIERS HOLE TYPE(For hole. Bent nose.)

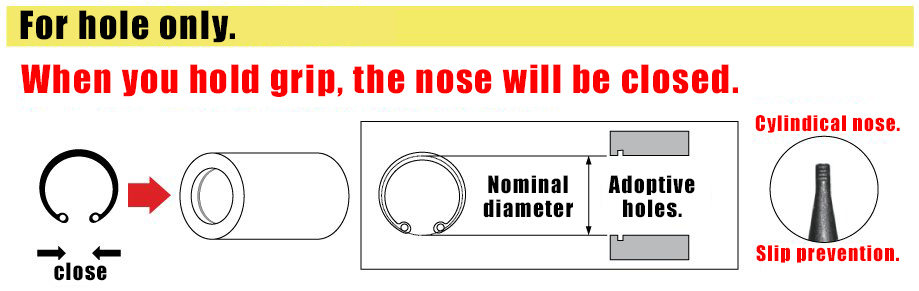

  • For  hole.
  • Nose is 90° bent.
  • Full forged. Integrally molded. Tough. High rigidity.
  • Nose is cylindrical. Slip prevention.
  • Colored by functions. Pliers for hole is with Yellow grip.

ホール(穴)用専用タイプ-3

Item No. JAN code Price
(¥)
Adoptive ring diameter
(㎜)
L
(㎜)

(㎜)
Weight
(g)
Inner box
HB-125 531988 2,900 12~25 135 25 80 6 pcs
HB-125F 532442 3,250 6~11 135 25 80 6 pcs
HB-175 530400 3,250 19~65 170 30 125 6 pcs
HB-230 530820 3,950 32~80 229 32 270 6 pcs
Item No. H
(㎜)
h
(㎜)
T1
(㎜)
T2
(㎜)
Torque
(N・m)
Package(㎜)
H×W
Material
HB-125 48 8 1.3 8.1 13.7 175×70 SCM440
HB-125F 48 8 0.5~0.7 8.1 8.2 175×70 SCM440
HB-175 50 12 1.8 9.3 26.5 225×75 SCM440
HB-230 50 17 2.0~2.4 11.1 53 300×95 Cr-V

※Item No. finished with ‘F’ is fine nose.  ※JAN codes are shown with 6 digital numbers without maker code(4975180). ※Prices are for each unit.  Item No. HB-125 HB-125F HB-175 HB-230

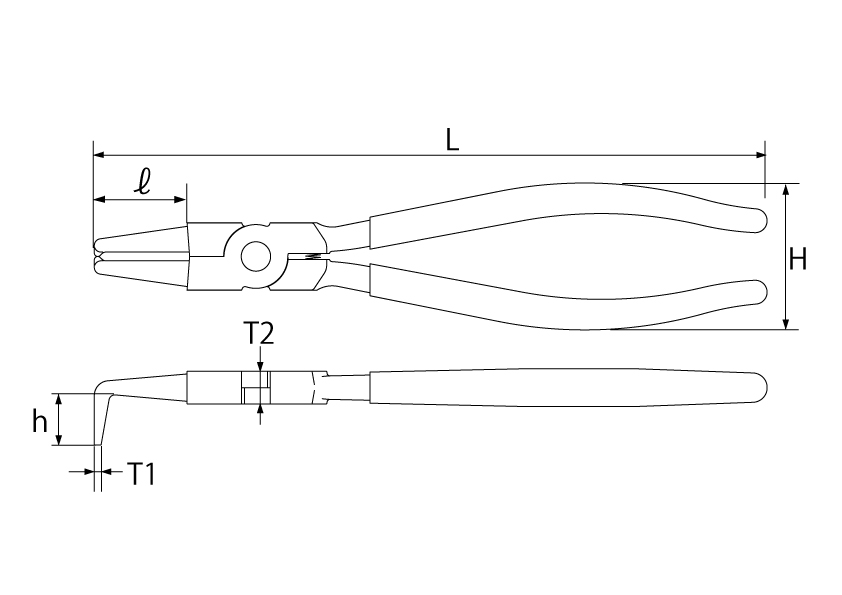

BENT SNAP RING PLIERS HOLE TYPEDrawings

Use

  • Ideal for attaching/detaching snap-rings inside hole.

Caution

  • It may be broken by overused.
  • Please use within proper use. Wear eyes protector to use the item.
  • Do NOT use as any other purposes than as hand tools.
  • Grip is not insulation.
