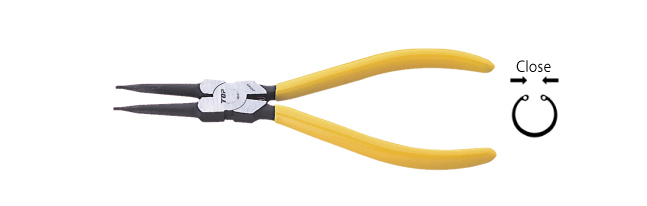

STRAIGHT SNAP RING PLIERS HOLE TYPE

STRAIGHT SNAP RING PLIERS HOLE TYPE(For the Hole, Straight nose )

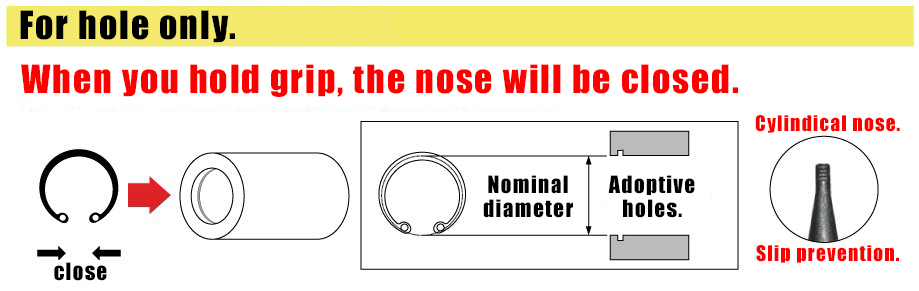

  • For the hole.
  • Full forged integrally mold so,  it is tough and has high rigidity.
  • Cylindrical tip so, it won’t slip.
  • Each pliers are color-coded by functions, shaft is with yellow grip.

Material:SCM440: HS-125, 125F, 175/ Cr-V: HS-230

Item No. JANCode Price
(¥)
Range
(mm)
L
(mm)

(mm)
Weight
(g)
Inner Box
HS-125 531711 3,850 12~25 140 32 80 6 pcs
HS-125F 532367 4,400 6~11 140 32 80 6 pcs
HS-175 530318 4,200 19~65 180 40 125 6 pcs
HS-230 530745 5,100 32~80 241 47 270 6 pcs
Item No. D
(mm)
H
(mm)
T1
(mm)
T2
(mm)
Torque
(N・m)
Package(mm)
H×W
HS-125 2.5~4.0 48 1.3 8.1 13.7 175×70
HS-125F 1.2~1.8 48 0.5~0.7 8.1 8.2 175×70
HS-175 3.4~5.5 50 1.8 9.3 26.5 225×75
HS-230 4.0~5.2 50 2.0~2.4 11.1 53 300×95

*Item No. finished with “F” is fine nose.

*JAN Codes are shown by 6 digits numbers, which removed as maker code (4975180).

*The prices are for each unit.

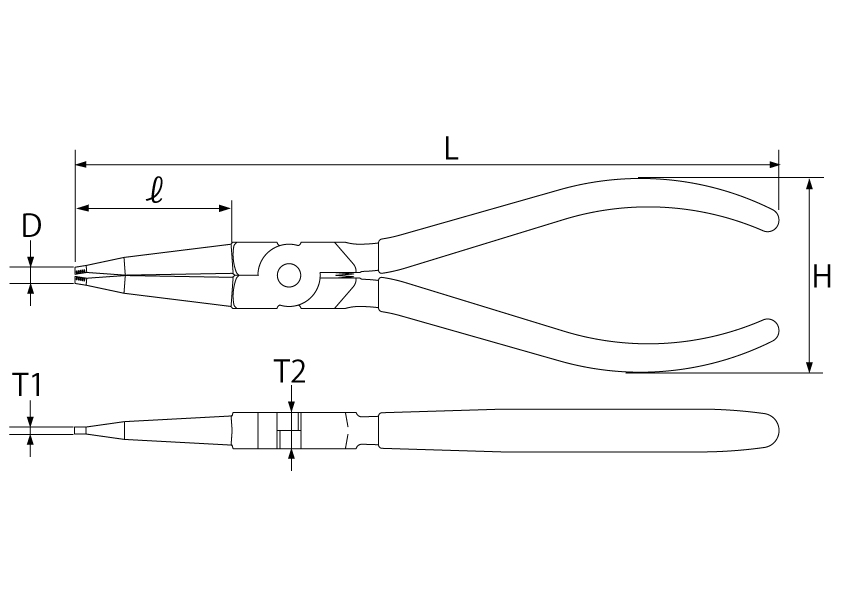

STRAIGHT SNAP RING PLIERS HOLE TYPEDrawings

Use

  • For attaching and detaching snap-ring for hole.

Caution

  • Please use within the capability to prevent bending and snapping off  the tool.
  • Please wear eyes protector to use the tool.
  • DO NOT use as any other purposes than as hand tool.
  • Grip is not insulation.
