BENT SNAP RING PLIERS SHAFT TYPE

BENT SNAP RING PLIERS SHAFT TYPE

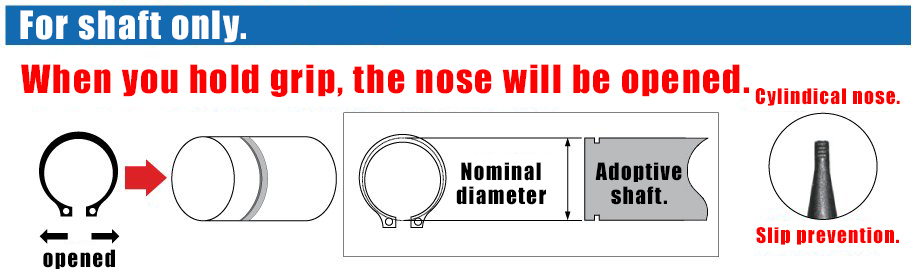

  • For shalt only.
  •  Nose is 90° bent.
  • Full forged. Tough・Excellent rigidity.
  • Cylindrical nose prevent slipping.
  • For shalt only.
  • Nose is 90° bent.
  • Full forged. Tough・Excellent rigidity.
  • Cylindrical nose prevent slipping.
  • Color coded by functions. For shalt has light blue grip.

シャフト(軸)用専用タイプ-3

Item No. JAN code Price
(¥)
Corresponding diameter of rings
(㎜)
L
(㎜)

(㎜)
Weight
(g)
Inner Box
SB-125 531636 2,900 10~25 135 25 90 6 pcs
SB-125F 532282 3,250 3~9 135 25 90 6 pcs
SB-175 530233 3,250 19~40 165 30 130 6 pcs
SB-230 530660 3,950 32~80 219 32 290 6 pcs
Item No. H
(㎜)
h
(㎜)
T1
(㎜)
T2
(㎜)
Torque
(N・m)
Package(㎜)
H×W
Material
SB-125 69 8 1.3 8.1 13.7 175×70 SCM440
SB-125F 69 8 0.5~0.7 8.1 8.2 175×70 SCM440
SB-175 94 12 1.8 9.3 26.5 225×75 SCM440
SB-230 134 17 2.0~2.4 11.1 53 300×95 Cr-V

※Item No. finish with ‘F’ means Fine Nose.

※JAN code are shown with 6 digital numbers removed maker code (4975180).

※Prices are for each unit.  Item No.  SB-125 SB-125F SB-175 SB-230

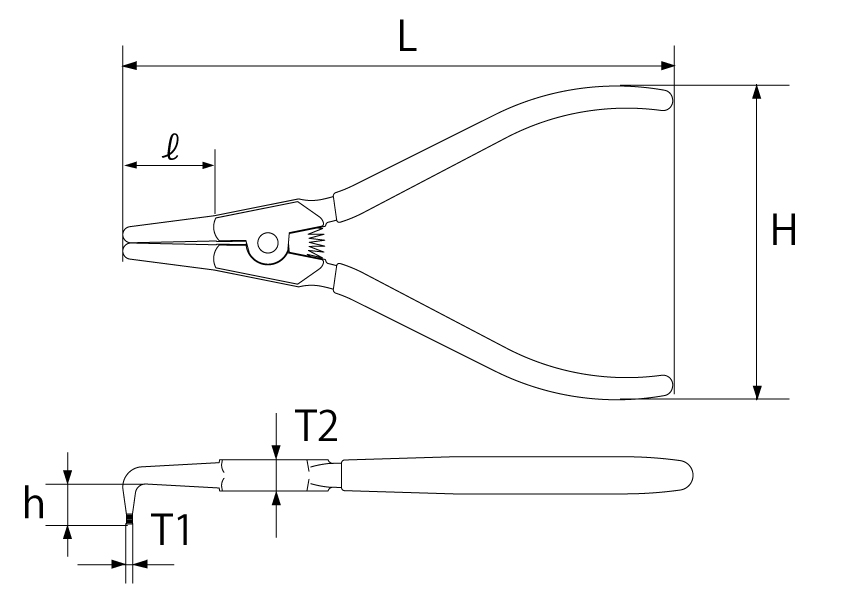

BENT SNAP RING PLIERS SHAFT TYPEDrawings

Use

  •  For attaching/detaching Snap-Rings for shalt.

Caution

  • Please do not overuse to prevent breaking/bending this tool.
  • Wear eye protector. use properly within the range of use.
  • Do Not use as any other purposes than as hand tool.
  • Grip is not insulation.
