Material：SCM440: SS-125, 125F, 175/ Cr-V: SS-230
| Item No. | JAN Code | Price （￥） |
Range （mm） |
L （mm） |
ℓ （mm） |
Weight （ｇ） |
Inner Box |
|---|---|---|---|---|---|---|---|
| SS-125 | 531551 | 3,850 | 10～25 | 140 | 32 | 90 | 6 pcs |
| SS-125F | 532107 | 4,400 | 3～9 | 140 | 32 | 90 | 6 pcs |
| SS-175 | 530158 | 4,200 | 19～40 | 175 | 40 | 130 | 6 pcs |
| SS-230 | 530585 | 5,100 | 32～80 | 236 | 47 | 290 | 6 pcs |

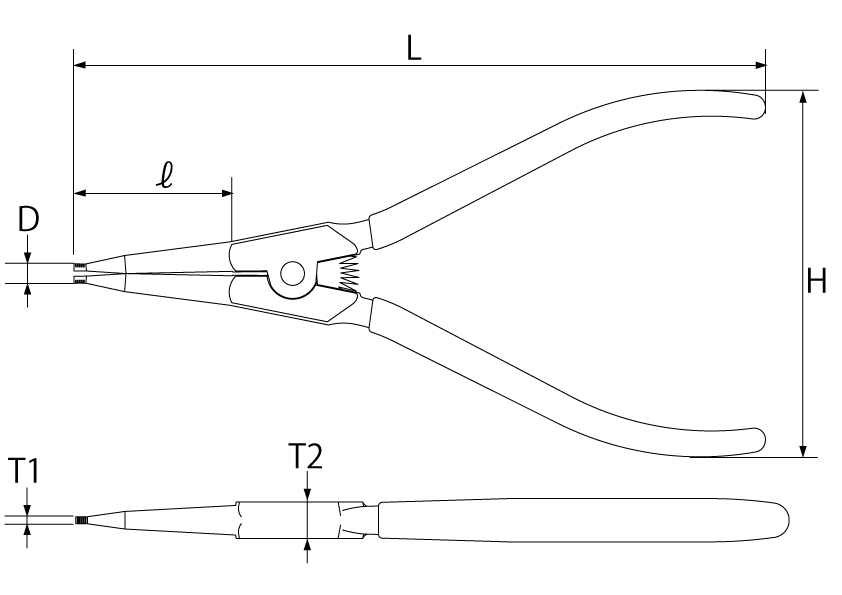

| Item No. | D （mm） |
H （mm） |
T1 （mm） |
T2 （mm） |
Torque （N・m） |
Package（mm） H×W |
|---|---|---|---|---|---|---|
| SS-125 | 3.0～4.5 | 69 | 1.3 | 8.1 | 13.7 | 175×70 |
| SS-125F | 1.2～1.8 | 69 | 0.5～0.7 | 8.1 | 8.2 | 175×70 |
| SS-175 | 3.4～5.5 | 94 | 1.8 | 9.3 | 26.5 | 225×75 |
| SS-230 | 6.0～8.0 | 134 | 2.0～2.4 | 11.1 | 53 | 300×95 |
*Item No. finish with “F” means Fine Nose type.
*JAN Codes are shown by 6 digits numbers, which removed as maker code (4975180).
*The price is for each unit.
Use
- For attaching and detaching snap-ring for shaft.
Caution
- Please use within the capability to prevent bending and snapping off the tool.
- Please wear eyes protector to use the tool.
- DO NOT use as any other purposes than as hand tool.
- Grip is not insulation.
