DOUBLE-SIZED RATCHET WRENCH

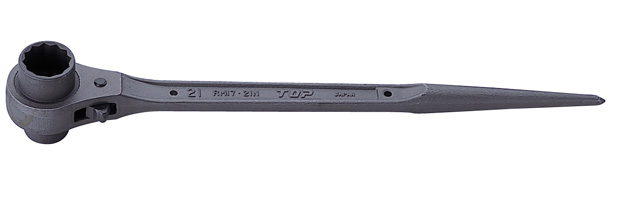

DOUBLE-SIZED RATCHET WRENCH(N type)

  • Not only the body, the claw is also forged and excellent strength.
  • Filled with hole on the head part during processing, it maintains smooth ratchet drive.
  • Podger is useful to match the holes of steels.
  • Finishing withparkerizing coating so, the surface is non-slip.
  • Same function with affordable price.

Material:Body:S55C Socket:Cr-V

Item No. JAN Code List Price

(¥)

Range

(mm)

Length

(mm)

Weight

(g)

Inner Box
RM-17×21N 385123 3,750 17・21 310 420 6
RM-19×21N 385208 4,450 19・21 310 420 6
Item No. Head Diameter
(mm)
Socket  Diameter

(mm)

Head Thickness
(mm)
Socket Length

(mm)

Guaranteed Torque

(N・m)

 d1 d2 Smaller Bigger Smaller Bigger
RM-17×21N 41.0 23.5 28.5 18.0 16.0 16.0 308.9 426.6
RM-19×21N 41.0 26.0 28.5 18.0 16.0 16.0 367.7 426.6
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.

M-17x21N RM-19x21N

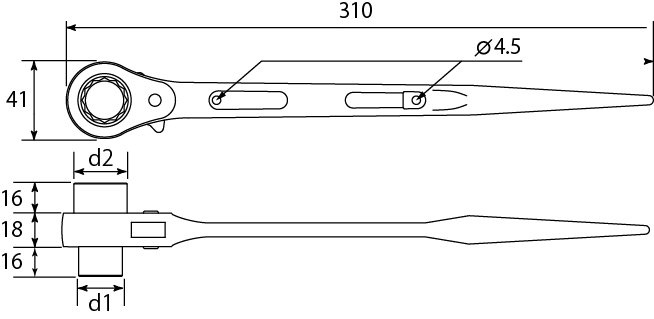

DOUBLE-SIZED RATCHET WRENCHDrawings

Use

  • Suitable for assembling scaffold and  formwork.
  • For scaffolders, farmers, or DIY.

Caution

  • Chose proper size which suits to the size of bolt and nut.
  • DO NOT extend the handle by inserting a pipe.
  • Please DO NOT use this item as a hammer.
  • Connect to safety code for fall prevention to use at height.
  • Please connect to safety code to use at height.
  • DO NOT use for purposes other than as hand tool.
