THIN STRAIGHT ADJUSTABLE WRENCH

THIN STRAIGHT ADJUSTABLE WRENCH

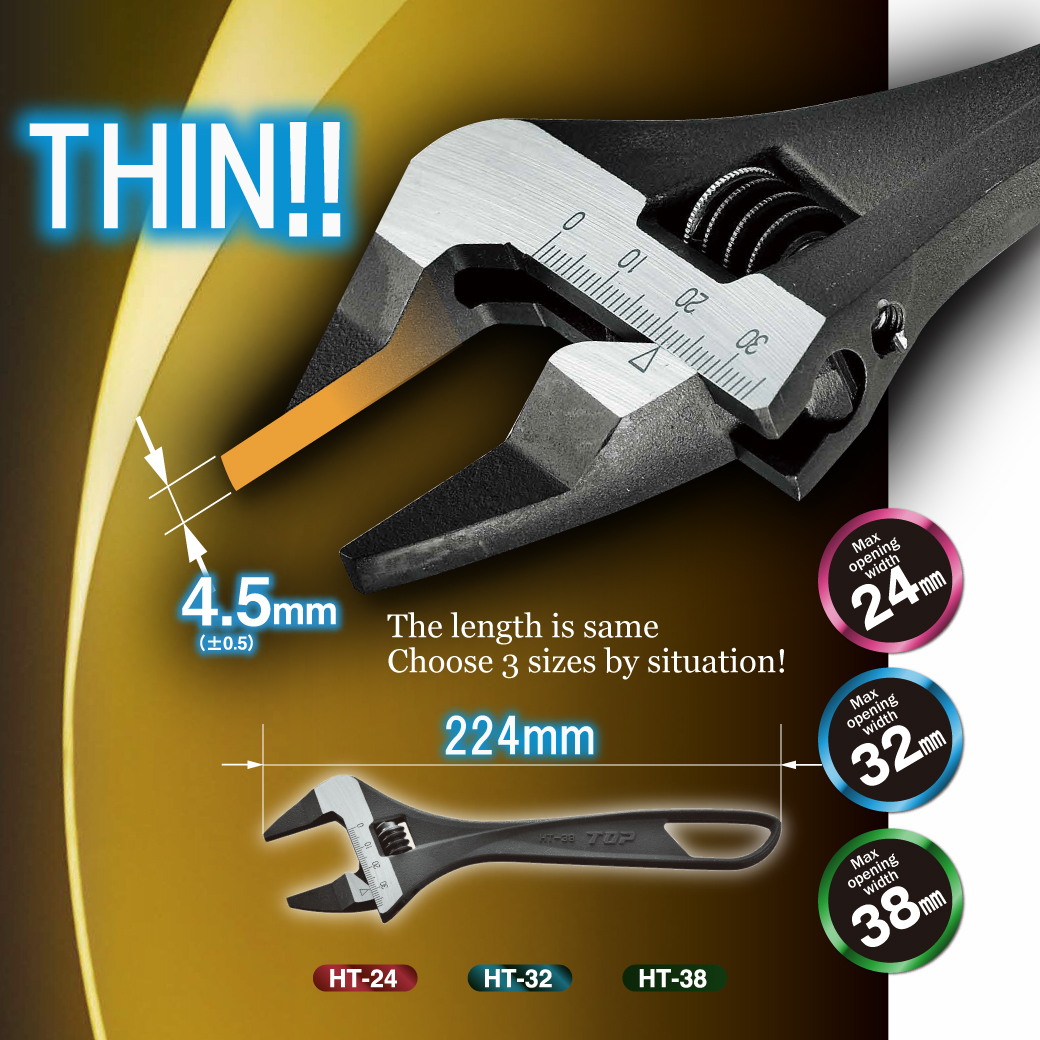

  • The thickness of the tip is 4.5mm, suitable for retitivily work in a narrow space and use 2 pcs to tighten.

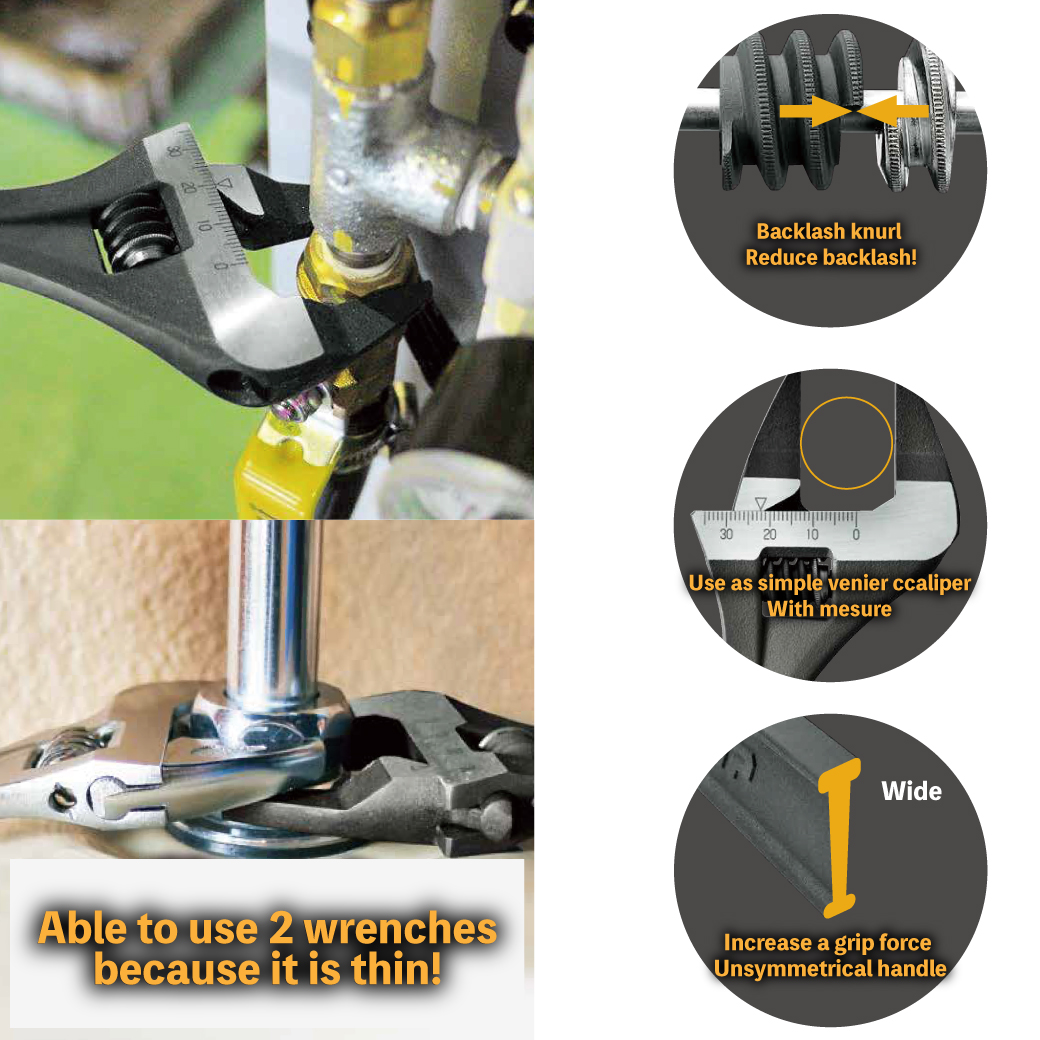

  • Prevent backlash by “Backlashless knurl”, it caatches a bolt and nut.
  • Able to use it as spanner.
  • With measure, able to use as a simple vernier caliper.
  • The total length is 224mm, choosable 3 opening width sizes for working situations.
  • 20° bent point Click here.

Thin Tip! Suitable for tighten the nuts or a narrow space.



Material：Cr-V

Item No. List Price
（￥）		 Opening Width
（mm）		 D
（mm）		 Weight
（g）		 Guaranteed Torque
（N・m）		 Package

（H×W ）

 Inner Box JAN Code
HT-24 5,450 0～24 57.5 230 137.5 270×85 6 132505
HT-32 6,350 0～32 65 240 137.5 270×85 6 132512
HT-38 7,300 0～38 72 265 137.5 270×85 6 132529
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.



  • Light weight design

    Light weight designEfficient performance with reducing weight and fatigue.

  • backlash less knurl

    backlash less knurl2 knurls of Backrush less knurl holds jaw without tolerance. It can be used like open end spanner.

Use

  • For maintaining precision machines, electronic components, vehicles or etc.

Caution

  • Due to the tip of jaw is very thin, please use the base of jaw as you tighten.
  • Adjust the jaw to the width across flats of the bolt or nut.
  • DO NOT extend the handle by inserting a pipe.
  • DO NOT hit with a hammer.
  • DO NOT use for purposes other than as hand tool.
