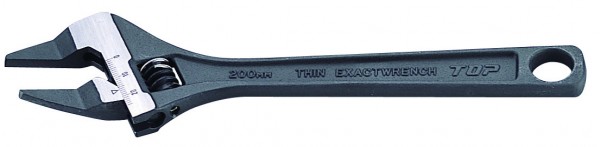

THIN EXACT WRENCH

THIN EXACT WRENCH(Bent type)

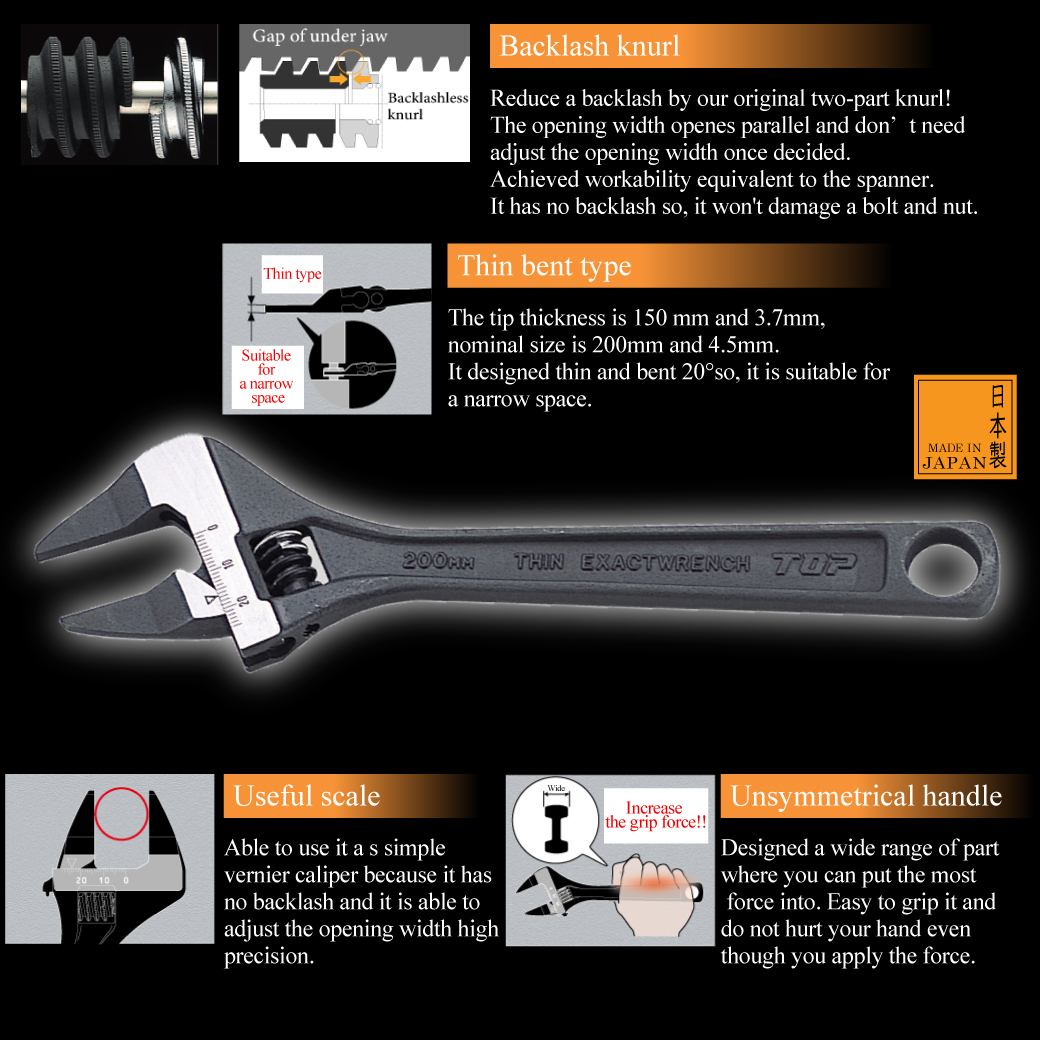

  • Adapt Backlash less knurl. Parallel opening jaw.no needs to adjusting size. No damage on object.
  • Able to use like a spanner.
  • The point is thin.
  • 20° bent point
  • With measure. Able to use as simple vernier

ht_b___tokuchou

HT_B_使用例

Item No. Price
(¥)
Open range
(mm)
Weight
(g)
Guaranteed Torque
(N・m)
Package(mm)
H×W
Inner Box JANcode
HT-150B 4,300 0~20 135 58.8 220×67 6 132062
HT-200B 4,600 0~24 235 137.3 270×85 6 132116
Item No. L
(mm)
D
(mm)

(mm)
T1
(mm)
T2
(mm)
t
(mm)
HT-150B 168 47 18 3.7 10 8
HT-200B 216 57.5 20 4.5 13 8

※JAN Codes are shown with 6 digital numbers which removed maker code (4975180).
※The price is for each unit.
Item No.  HT-150B HT-200B

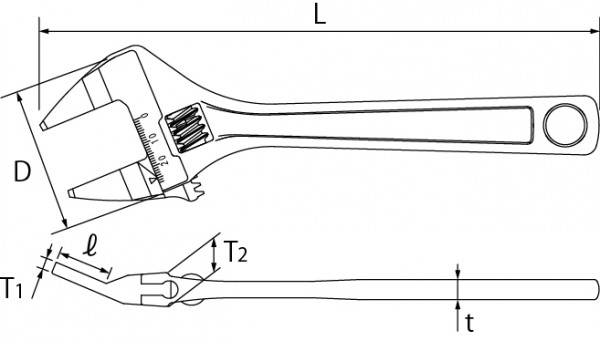

THIN EXACT WRENCHDrawings

  • PAT

    PATPATENTED

  • Light weight design

    Light weight designEfficient performance with reducing weight and fatigue.

  • backlash less knurl

    backlash less knurl2 knurls of Backrush less knurl holds jaw without tolerance. It can be used like open end spanner.

Use

  • 薄いボルト・ナットの脱着作業に最適です
  • 精密機械・電子部品・車両関連等幅広い分野でご使用頂けます

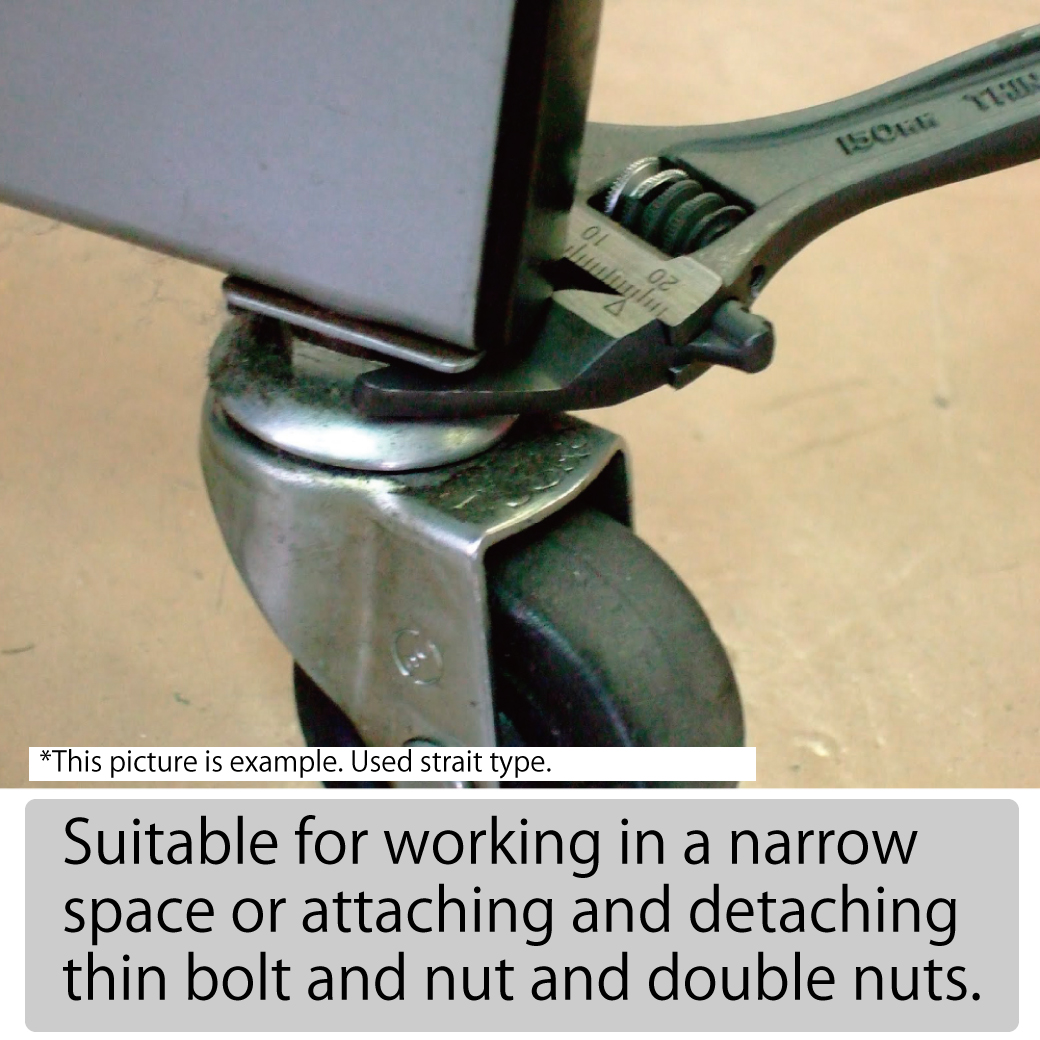

  • Useful for tightening nut by 2 wenches such as setting sign board.

Caution

  • The point is extremely thin. please use the root to tightening strongly.
  • ボルト・ナット等の二面幅に合わせてご使用ください
  • Do not use by inserting pipe to the stick.
  • Do not use as a hummer.
