Item No. | List Price
(¥) |
Opening Width
(mm) |
Weight
(g) |
Guaranteed Torque
(N・m) |
Inner Box | JAN Code |
---|---|---|---|---|---|---|
HM-25 | 5,500 | 0~25 | 135 | 163.9 | 6 | 131508 |
HM-32 | 6,500 | 0~32 | 255 | 305.1 | 6 | 131515 |
HM-38 | 8,350 | 0~38 | 410 | 508.5 | 6 | 131522 |
HM-43 | 11,500 | 0~43 | 655 | 864.4 | 6 | 131539 |

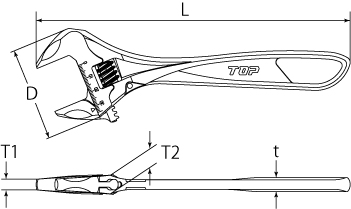

Item No. | L
(mm) |
D
(mm) |
T1
(mm) |
T2
(mm) |
t
(mm) |
---|---|---|---|---|---|
HM-25 | 165 | 52 | 6 | 10.5 | 7.6 |
HM-32 | 216 | 63 | 7.5 | 13 | 9.7 |
HM-38 | 263 | 76 | 9 | 15.4 | 10.5 |
HM-43 | 317 | 92 | 10 | 18.3 | 11.2 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
Use
- For a vehicle production and vehicle maintenance.
- Best for a machine production and maintenance as well.
- Also for an electrical installation, construction work at height.
Caution
- Please use it to match a bolt and nut size.
- DO NOT extend the handle by inserting a pipe.
- Please do not use this item as a hammer.
- DO NOT use for purposes other than as a hand tool.
