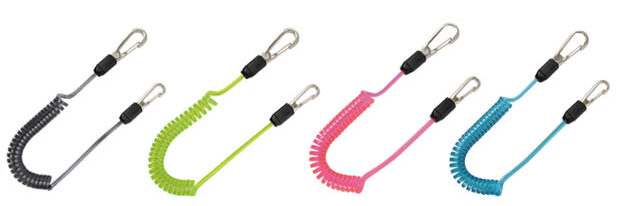

SQUARE COIL SAFETY CODE

SQUARE COIL SAFETY CODE(Hisquare)

  • No space between coils. rarely entangled.
  • Square coil has high stability. 1.6 times tougher than round coil.
  • Able to connect tools up to 1 kg.
  • Stainless wire in the code.

Won METI Minister Award of  JAPAN DIY HOMECENTER CONTEST 2014.

  • No space between coils. rarely entangled.
  • Square coil has high stability. 1.6 times tougher than round coil.
  • Able to connect tools up to 1 kg.
  • Stainless wire in the code.

Material:Polyacetal (unwinding parts), Polyurethane / Stainless (wire)

Item No. List Price
(¥)
Color Code Diameter
(mm)
Wire Diameter
(mm)
Equilibrium Length
(mm)
Maximum extension
(mm)
Safety intensity
(kgf)
Weignt
(g)
Inner box JANcode
SFC-412SYG 3,000 Yellow green □4 Φ0.81 about 380 about 1,300 about 50 54.5 10 947819
SFC-412SBK 3,000 Black □4 Φ0.81 about 380 about 1,300 about 50 54.5 10 947826
SFC-412SB 3,000 Neon Blue □4 Φ0.81 about 380 about 1,300 about 50 54.5 10 947833
SFC-412SP 3,000 Neon Pink □4 Φ0.81 about 380 about 1,300 about 50 54.5 10 947840

※JAN codes are shown with the last 6 digital numbers which are removed maker code (4975180)
※List Price is for each unit.
製品番号 SFC-412SYG SFC-412SBK SFC-412SB SFC-412SP

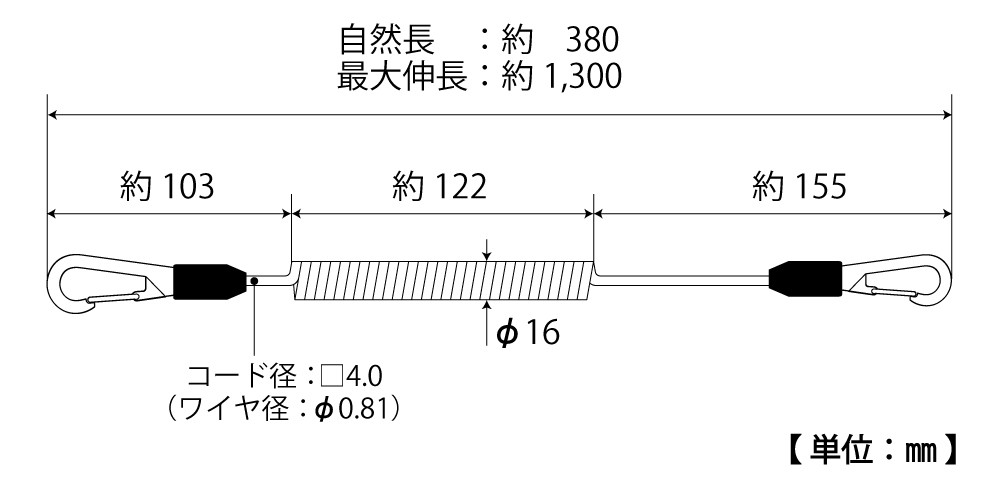

SQUARE COIL SAFETY CODEDrawings

  • PAT

    PATPATENTED

Use

  • For fall and loss prevention.
  • Suitable for using 2 items as its hard to get entangle.

Caution

  • DO NOT approach fire and sharp knives.
  • For security, use within the guaranteed durability.
  • DO NOT hang heavy stuff  and apply loads suddenly. it may hurt people.
  • DO NOT use as towing or hanging tool.
  • Do not use if you see damage on this product.
  • Use is only as a safety code.
