Lineup

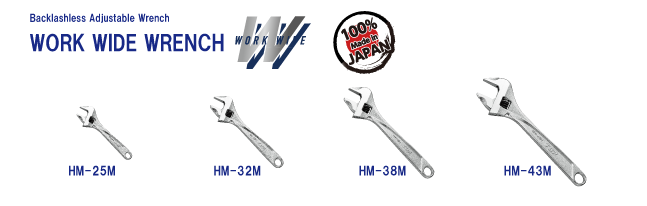

| Work Wide Wrench | Work Wide With Grip Wrench | Short Work Wide Wrench |
 |
 |
 |
Material：Cr-V
| Item No. | List Price
（￥） |
Opening Width
（mm） |
Weight
（g） |
Guaranteed Torque
（N・m） |
Inner Box | JAN Code |
|---|---|---|---|---|---|---|
| HM-25M | 4,150 | 0~25 | 150 | 163.9 | 6 | 133588 |
| HM-32M | 4,600 | 0～32 | 270 | 305.1 | 6 | 133595 |
| HM-38M | 5,750 | 0～38 | 450 | 508.5 | 6 | 133601 |
| HM-43M | 7,950 | 0～43 | 690 | 864.4 | 6 | 133618 |

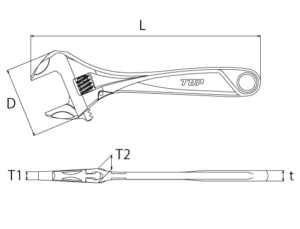

| Item No. | L
（mm） |
D
（mm） |
T1
（mm） |
T2
（mm） |
t
（mm） |
|---|---|---|---|---|---|
| HM-25M | 163 | 52 | 6 | 10.5 | 7.6 |
| HM-32M | 210 | 63 | 7.5 | 13 | 9.7 |
| HM-38M | 260 | 76 | 9 | 15.4 | 10.5 |
| HM-43M | 313 | 92 | 10 | 18.3 | 11.2 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
HM25MGBK HM32MGBK HM38MGBK HM43MGBK HM25MGNB HM32MGNB HM38MGNB HM43MGNB HM25MGNB HM32MGNB HM38MGNB HM43MGNB がた無しモンキーレンチ 水回り HM25M HM32M HM38M HM-43-M HM-25-M HM-32-M H
Use
- Attaching and detaching a bolt and nut.
- For work around water and indoor work, and construction metal fitting.
- For water service installations.
- For air conditioners.
- For construction metal fittings.
Caution
- DO NOT extend the handle by inserting a pipe.
- DO NOT hit with a hammer.
- DO NOT use for purposes other than as a hand tool.
