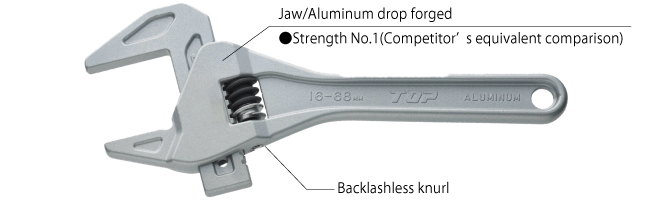

Material:Aluminum alloy
Item No. | JAN Code | List Price
(¥) |
Opening Width
(mm) |
Length
(mm) |
Weight
(g) |
Inner Box |
---|---|---|---|---|---|---|
TMW-1665 | 371096 | 7,200 | 16~68 | 242 | 245 | 6 pcs |

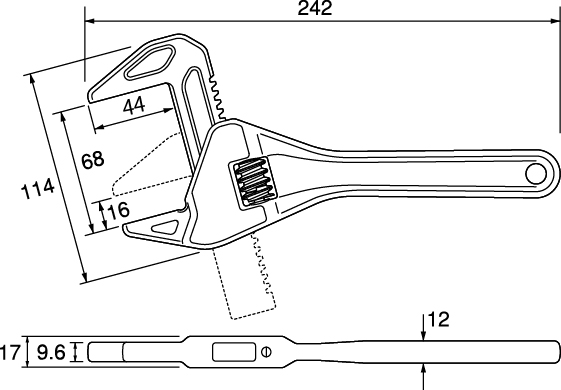

Item No. | Head Diameter(mm) | Jaw Depth(mm) | Head thickness(mm) | Handle thickness(mm) | Guaranteed Torque
(N・m) |
Package | |
---|---|---|---|---|---|---|---|
Point | Base | (H×W) | |||||
TMW-1665 | 114 | 44 | 9.6 | 17 | 12 | 235 | 290×120 |
*Guaranteed torque is simulated as the case width across flats 50 mm.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
TMW1665 TM-W-1665 縦型アルミモーターレンチ 立て型アルミモーターレンチ
Use
- For attaching and detaching trap pipes, etc inside the washbasin.
- For piping work when you don’t want to damage objects such as plated pipes or decoration nuts.
- Also for a large diameter nut which doesn’t need a strong tightening.
Caution
- After tightening bolt, marks may remain on this tool as both of body and jaw are made of aluminum.
- Not able to use as usual adjustable wrench.
- Adjust jaw to widths across flats of bolt or nut.
- DO NOT extend the handle by inserting a pipe into the handle.
- Please do not use this item as a hammer.
