Material：Aluminum alloy
| Item No. | JAN Code | List Price
（￥） |
Opening Width
（mm） |
Length
（mm） |
Weight
（ｇ） |
Inner Box |
|---|---|---|---|---|---|---|
| TMW-1665 | 371096 | 7,200 | 16～68 | 242 | 245 | 6 pcs |

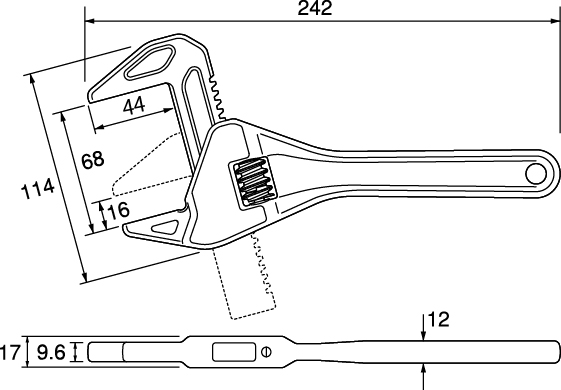

| Item No. | Head Diameter（mm） | Jaw Depth（mm） | Head thickness（mm） | Handle thickness（mm） | Guaranteed Torque
（N･m） |
Package | |
|---|---|---|---|---|---|---|---|
| Point | Base | （H×W） | |||||
| TMW-1665 | 114 | 44 | 9.6 | 17 | 12 | 235 | 290×120 |
*Guaranteed torque is simulated as the case width across flats 50 mm.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
TMW1665 TM-W-1665 縦型アルミモーターレンチ 立て型アルミモーターレンチ
-

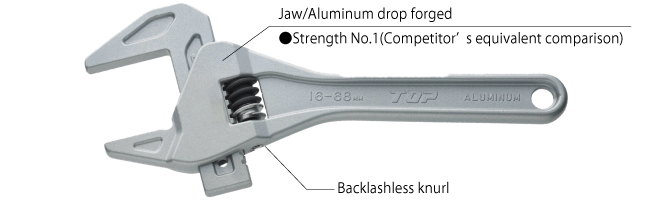

Light weight designEfficient performance with reducing weight and fatigue.
-
backlash less knurl2 knurls of Backrush less knurl holds jaw without tolerance. It can be used like open end spanner.
Use
- For attaching and detaching trap pipes, etc inside the washbasin.
- For piping work when you don’t want to damage objects such as plated pipes or decoration nuts.
- Also for a large diameter nut which doesn’t need a strong tightening.
Caution
- After tightening bolt, marks may remain on this tool as both of body and jaw are made of aluminum.
- Not able to use as usual adjustable wrench.
- Adjust jaw to widths across flats of bolt or nut.
- DO NOT extend the handle by inserting a pipe into the handle.
- Please do not use this item as a hammer.
