Large diameter model has additionally released. Suitable shaped blade prevent crack and dents on the pipe.
◎15~25℃…cut normally 〇10~14℃…cut slowly △Under 10℃…warm up pipe and cut slowly
※slowly…1 stroke 3 seconds
| Item No. | List Price （￥） |
Weight （ｇ） |
Inner Package（㎜） H×W |
Inner Box | JAN Code | Accessory | Specification |
|---|---|---|---|---|---|---|---|

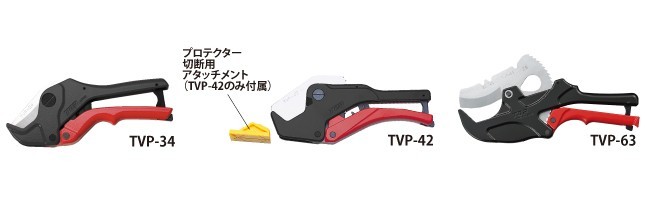

| TVP-34 | 8,100 | 270 | 235×90 | 6 | 296375 | —- | R shaped blade, One-Push Open, Opening Stopper Hook |
| TVP-42 | 9,950 | 400 | 290×120 | 6 | 295057 | Attachment for cutting protecttor | R shaped blade, One-Push Open, Opening Stopper Hook,
Able to cut piping protector |
| TVP-63 | 16,500 | 540 | 345×168 | 6 | 296610 | —- | R shaped blade、One-Push Open, Opening Stopper Hook Chamfering Function, Protector、Flat shaped handle |
| TVP-34K | 2,450 | 45 | 165×78 | 6 | 296450 | (Spare Blade for TVP-34) | R shaped blade |
| TVP-42K | 2,800 | 70 | 170×90 | 6 | 295132 | (Spare Blade for TVP-42) | R shaped blade |
| TVP-63K | 4,750 | 140 | 204×135 | 6 | 296702 | (Spare Blade for TVP-63) | R shaped blade |
※ Item No. finished with K are Spare Blade.
※The way to change TVP-63 is different from the others. Please refer this page for the details.
※The way to change TVP-63 is different from the others. Please refer this page for the details.
※JAN codes are shown without maker code（4975180）.
| Main Objects | ||||
|---|---|---|---|---|
| Item No. | TVP-34 Outer diameter up to φ34mm |
TVP-42 Outer diameter up toφ42mm |
TVP-63 Outer diameter up toφ63mm |
|
| Rigid PVC Pipe | Ordinal pipe | VP(HIVP)25 | VP(HIVP)30 | VP(HIVP)50 |
| Water Pipe | VW25 | VW30 | VW50 | |
| Conduit Pipe | VE(HIVE)28 | VE(HIVE)36 | VE(HIVE)54 | |
| Heat Resistant Pipe | HT25 | HT30 | HT50 | |
| Polyethylene Pipe | PE25 | PE30 | PE50 | |
| Polybutene Pipe | PB25 | PB30 | PB50 | |
| Protectors | — | 1~5号 | — | |
※Cannot use for cutting Thin-Walled Pipe VU.
TVP-34 Spare Parts
| No. | Parts Name | No. | Parts Name |
|---|---|---|---|
| 1 | Cutter（Spare Blade）TVP-34K | 8 | Cutter bolt |
| 2 | Body | 9 | Spring roll pin |
| 3 | Handle | 10 | Link Coil |
| 4 | Link | 11 | Cutter Coil |
| 5 | Ratchet Claw | 12 | Handle Pin |
| 6 | Hook | 13 | E-Ring |
| 7 | Stable Nut Thin | 14 | Claw Spring |

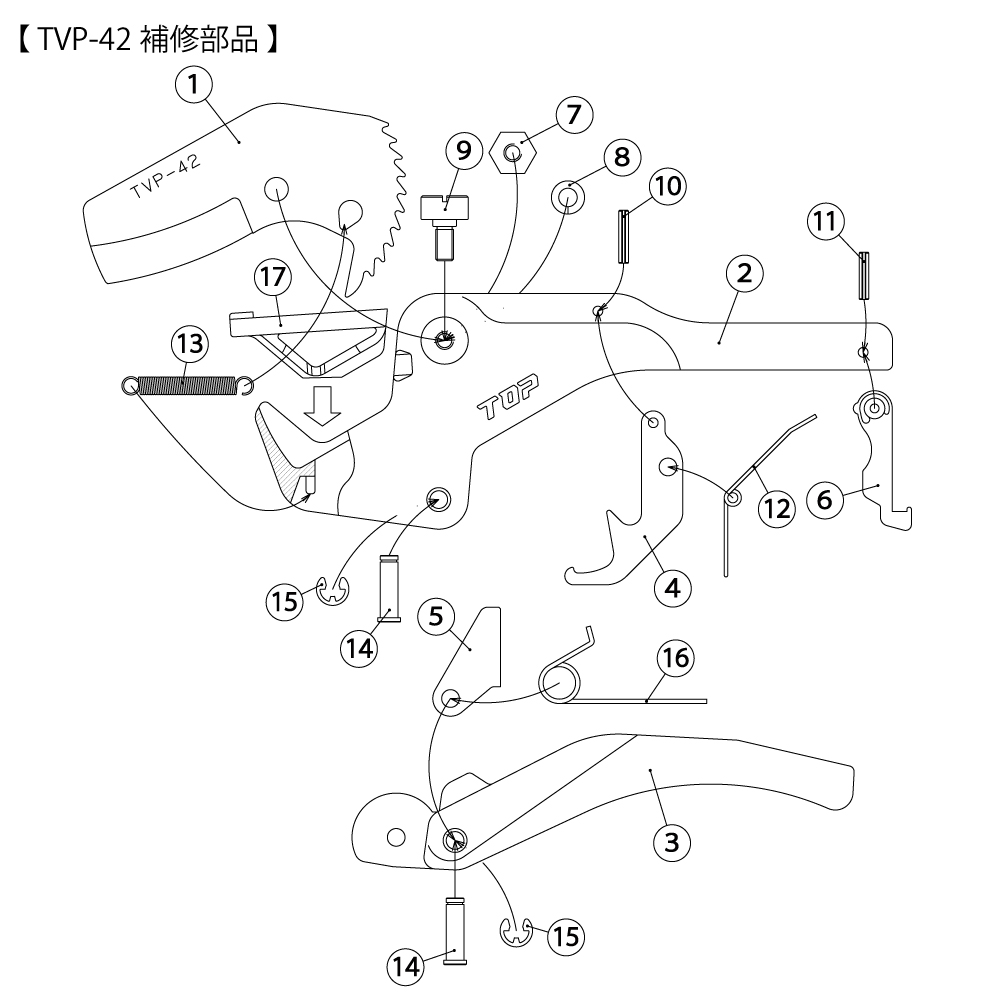

TVP-42 補修部品
| No. | Parts Name | No. | Parts Name |
|---|---|---|---|
| 1 | Cutter（Spare Blade） TVP-42K | 10 | Spring Roll Pin |
| 2 | Body | 11 | Spring Roll Pin |
| 3 | Handle | 12 | Ring Spring |
| 4 | Link | 13 | Cutter Spring |
| 5 | Ratchet Claw | 14 | Handle Pin |
| 6 | Hook | 15 | E-ring |
| 7 | Nut | 16 | Claw Spring |
| 8 | Spring Washer | 17 | Attachment |
| 9 | Cutter Bolt |

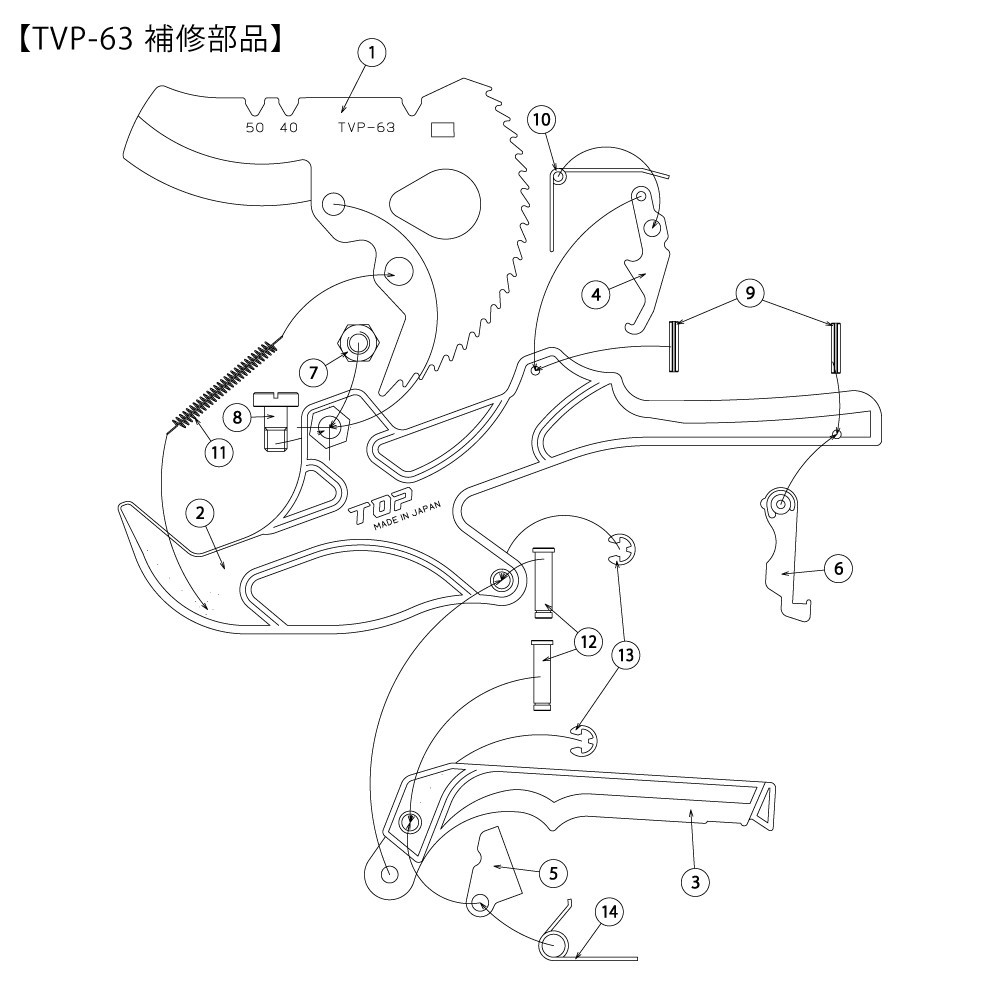

TVP-63 補修部品
| No. | Parts | No. | Parts |
|---|---|---|---|
| 1 | Cutter（Spare Blade） TVP-63K | 8 | Cutter Bolt |
| 2 | Body | 9 | Spring Roll Pin(2 pcs) |
| 3 | Handle | 10 | Link Spring |
| 4 | Link | 11 | Cutter Spring |
| 5 | Ratchet Claw | 12 | Handle Pin(2 pcs) |
| 6 | Hook | 13 | E-Ring(2 pcs) |
| 7 | Nut | 14 | Claw Spring |
※Spare Parts are all open price.
Item No. TVP-34 TVP-34K TVP-42 TVP-42K TVP-63 TVP-63K 塩ビパイプカッター 塩ビ管パイプカッター

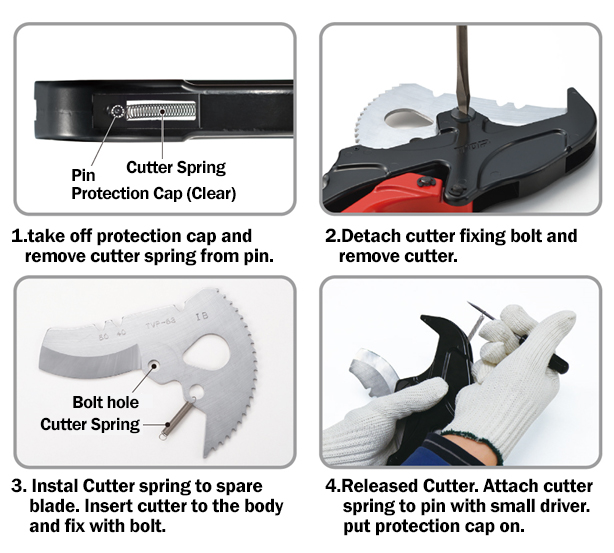

TVP-63 Blade(TVP-63K) Changing way
Use
- For cutting Rigid PVC Pipe, Polyethylene Pipe and Polybutene Pipe which outer diameters are up to 34㎜ （TVP-34）
- For cutting Rigid PVC pipe which diameter is up to 42㎜ （TVP-42）
- General pipe VP30・Water cutting Rigid PVC Pipe, Polyethylene Pipe and Polybutene Pipe which outer diameters are up to 34㎜ （TVP-34）
- For cutting Rigid PVC pipe which diameter is up to 42㎜ （TVP-42）
- For General pipe VP30・Water pipe VW30・Conduit tube VE36・Protectors（TVP-42）
- For cutting Rigid PVC Pipe, Polyethylene Pipe and Polybutene Pipe which outer diameters are up to 34㎜ （TVP-34）
- For cutting Resin tube which didameter is up to 63㎜ (VP・HIVP・VE・PE・PB)（TVP-63）
Caution
- It is designed for cutting Resin tubes such as VP pipe. Do not use for Metal tubes such as Copper tube, Steel tube, Stainless Steel tube or Cables.
- When the temperature is low, pipe will be broken easily. Please cut slowly or heat up the cutting point.
- Please wear eye protector to cut pipes. broken pieces may hurt you.
- Please change to spare blade when the blade is cracked or lost sharp cutting.
- Blade is really sharp. please wear protection gloves to touch the blade.
- Do not close your finger to cutting gear to release the blade.
- To remove attachment, pless the tip to hard thing and push the attachment up.（TVP-42）
- Do not use for any other purposes than as hand tools.
