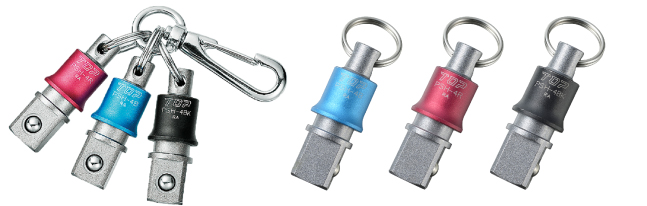

PORTABLE IMPACT SOCKET HOLDER

PORTABLE IMPACT SOCKET HOLDER(Square Drive 9.5mm) (Square Drive 12.7mm)

  • Convenient for carrying and keeping the impact socket and socket wrench socket.
  • Able to take it out easily by one hand as you would like to use it.
  • Able to take it out easily by one hand as you would like to use it as well.
  • Convenient for carrying and keeping the impact socket and socket wrench socket.
  • Both Square Drive 9.5mm (3/8”) and 12.7mm (1/2”)  are available.
  • Achived the 400kgf pull-out test, do not come out easily.
  • Attach it to the belt, is for improve the work safety and efficiency.
  • Able to take it out easily by one hand as you would like to use it.
  • Lightweight design using some aluminum alloy.
  • 3 colors and a 3-colors set with a swivel.

Material：Slide Color : Aluminum Alloy/ Others : Iron

PORTABLE IMPACT SOCKET HOLDER 3 COLORS SET（9.5mm）（12.7mm）

Item No. JAN Code Price List
（￥）		 Square Drive
S（mm）		 Range Color Maximum Diameter to Hold by Swivel

(mm)

 Weight
（ｇ）		 Package
（mm）
H×W		 Inner Box
PSH-3BRBKN 935038 8,150 9.5（3/8”） Less than 500g each Blue
Red
Black		 Φ6.5 105 125×40 6
PSH-4BRBKN 935090 8,900 12.7（1/2”） Less than 500g each Blue
Red
Black		 Φ6.5 135 130×40 6



PORTABLE IMPACT SOCKET HOLDER（9.5mm）（12.7mm）

Item No. JAN Code List Price
（￥）		 Square Drive
S
（mm）		 Range Color Length
L
(mm)		 Weight
（ｇ）		 Package
（mm）
H×W		 Inner Box
PSH-3B 935007 2,700 9.5（3/8”） Less than 500g each Blue 42.5 32 110×40 6
PSH-3R 935014 2,700 9.5（3/8”） Less than 500g each Red 42.5 32 110×40 6
PSH-3BK 935021 2,700 9.5（3/8”） Less than 500g each Black 42.5 32 110×40 6
PSH-4B 935069 2,950 12.7（1/2”） Less than 500g each Blue 47.6 43 115×40 6
PSH-4R 935076 2,950 12.7（1/2”） Less than 500g each Red 47.6 43 115×40 6
PSH-4BK 935083 2,950 12.7（1/2”） Less than 500g each Black 47.6 43 115×40 6

*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.

  • deep socket

    deep socketdeep socket for quick double nuts operation. It also holds nut by depth.

  • 6 points (round corners)

    6 points (round corners)6 points (round corners) socket has surface fit design which prevents damaging of bolts or nuts. 6 points sockets are standard for electric impact screw driver accessories.

  • impact wrench

    impact wrenchcan be used with impact wrench.

Use

  • For carrying and keeping the impact socket and socket wrench socket.

Caution

  • DO NOT hang weighing more than 500g object in one holder.
  • Please use the proper size which match to the square drive.
  • Please align to a hole for the pin hole and the ball on the holder as you attach the impact socket.
  • Please make sure it is securely locked before hanging it as installing.
  • DO NOT use for anything other than the purpose of use of hand tool.
