LIGHT MOTOR WRENCH

LIGHT MOTOR WRENCH

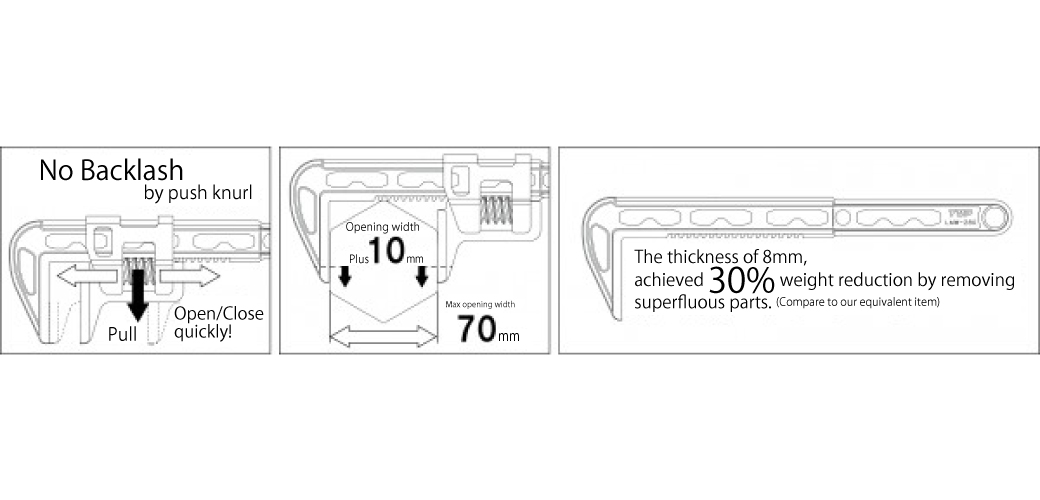

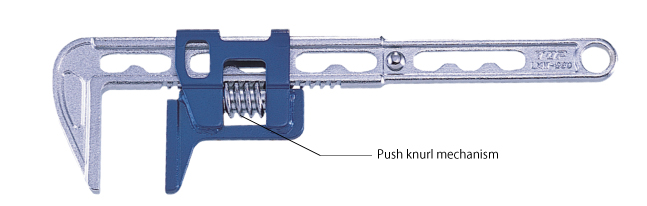

  • The push knurl mechanism and fit body groove, there is no backlash.
  • The push knurl mechanism, the work efficiency can be improved.
  • The thickness of 8mm, achieved 30% weight reduction by removing superfluous parts.(Compare to our equivalent item)
  • Add 10mm to the length of  opening width conventional products, able to tighten large dimension joint.
  • The body and slide parts are dropforge and heated treatment, these strengths are same as conventional product.



Material：S55C

Item No. List Price

（￥）

 Opening Width

（mm）

 Weight

（g）

 Guaranteed Torque

（N・m）

 Package

（H×W）

 Inner Box JAN Code
LMW-280 5,850 0～70 440 147 335×95 6 370600

*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.

製品番号 LMW-280

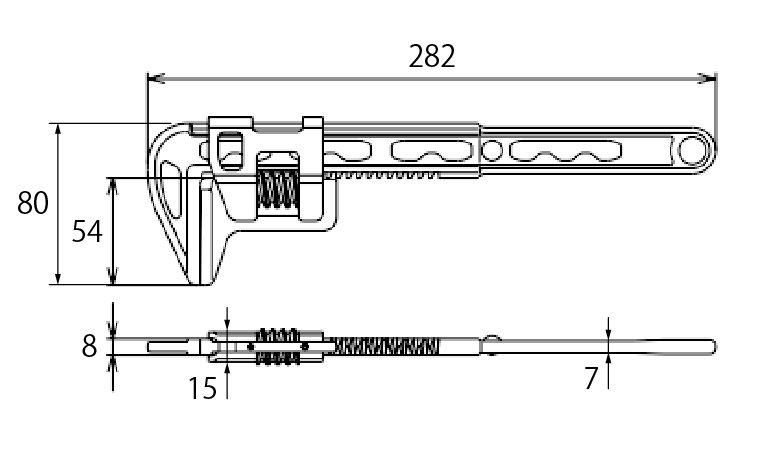

LIGHT MOTOR WRENCHDrawings

  • PAT

    PATPATENTED

  • Light weight design

    Light weight designEfficient performance with reducing weight and fatigue.

Use

  • For tightening and loosing resin pipe connector for water pipe, plated nut of toilet and water faucet.
  • For soft nut such as of copper, brass and plastics.
  • For removing or assembling water facilities.

Caution

  • DO NOT use when the knurl is not on groove of the body.
  • Adjust the jaw to the width across flats of bolt and nut.
  • DO NOT extend the handle by inserting a pipe.
  • DO NOT use this item as a hammer.
  • DO NOT use for purposes other than as hand tool.
