IMPACT UNIVERSAL SOCKET

IMPACT UNIVERSAL SOCKET(Square Drive 12.7mm) (Square Drive 19.0mm)

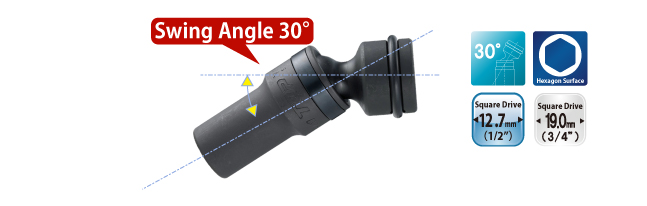

  • Swing 30°angle, suitable for at close walls and narrow spaces.

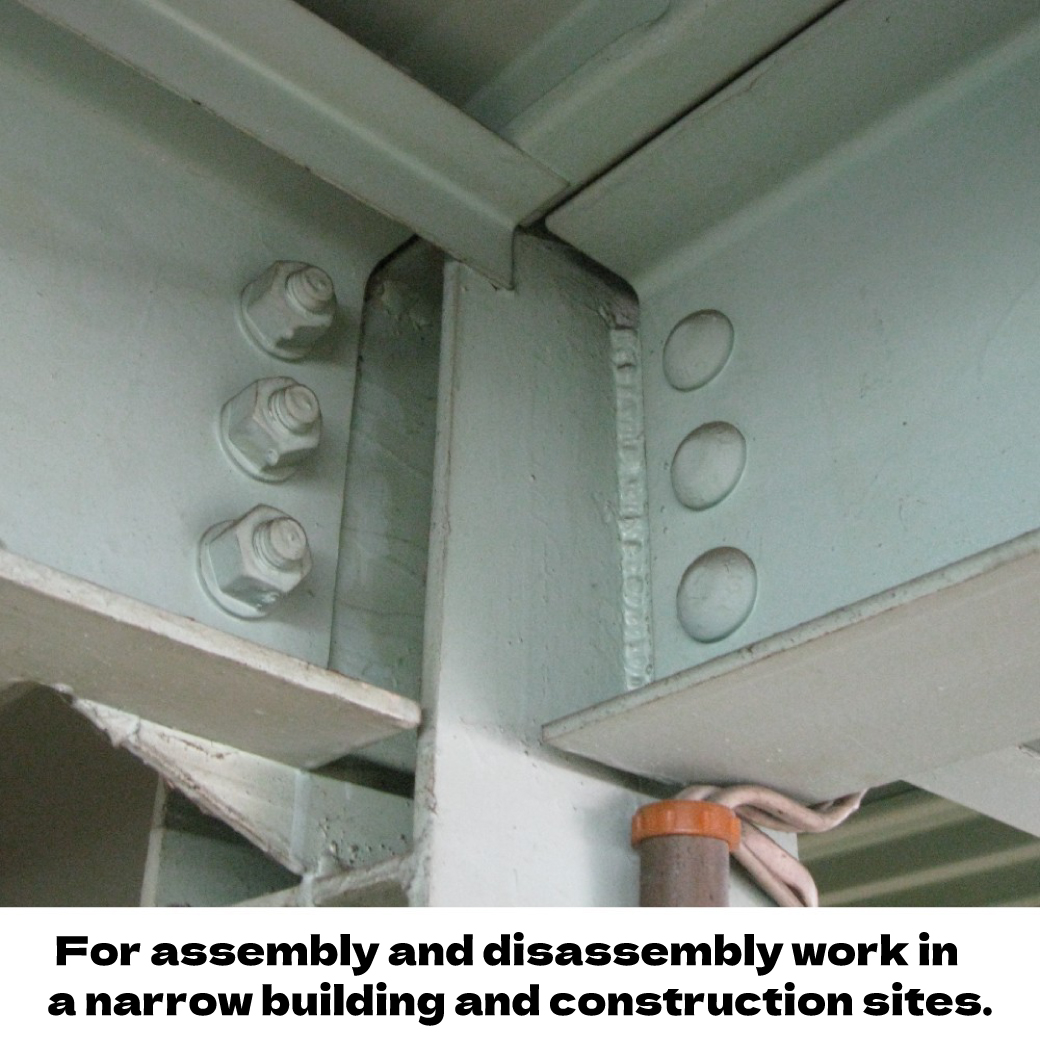

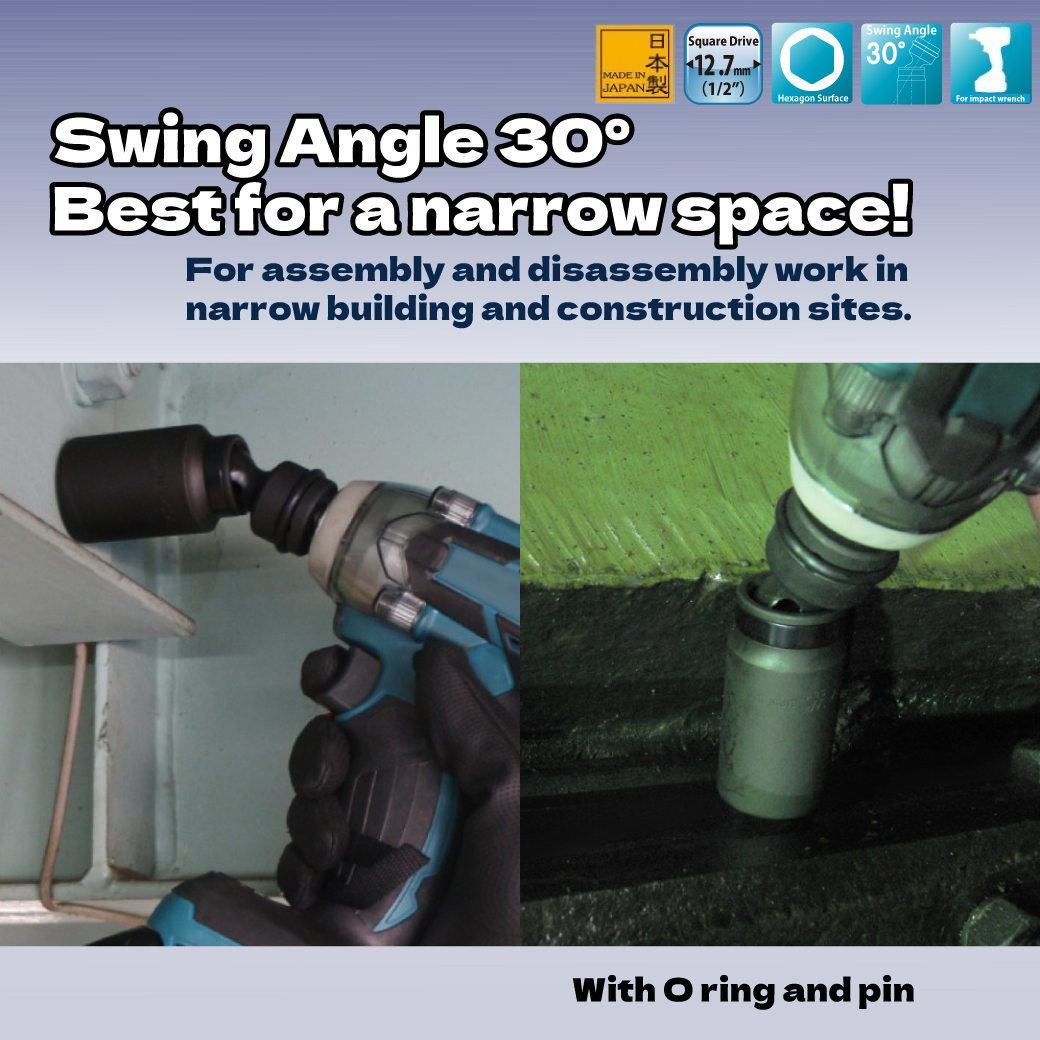

  • For assembly and disassembly work in narrow building and construction sites.
  • Hexagon surface socket shape.

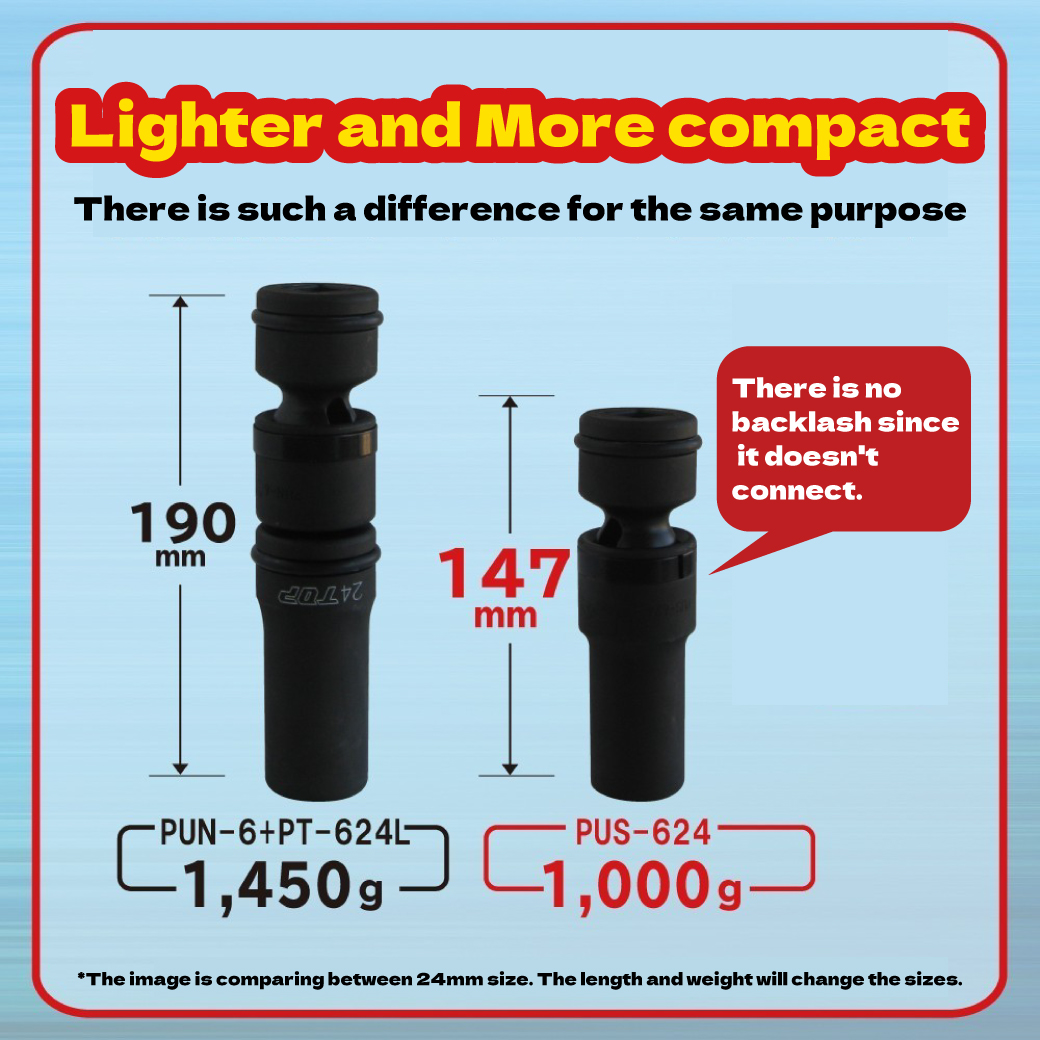

  • Lighter and more compact than using an adapter and socket together.
  • With O-ring and pin.

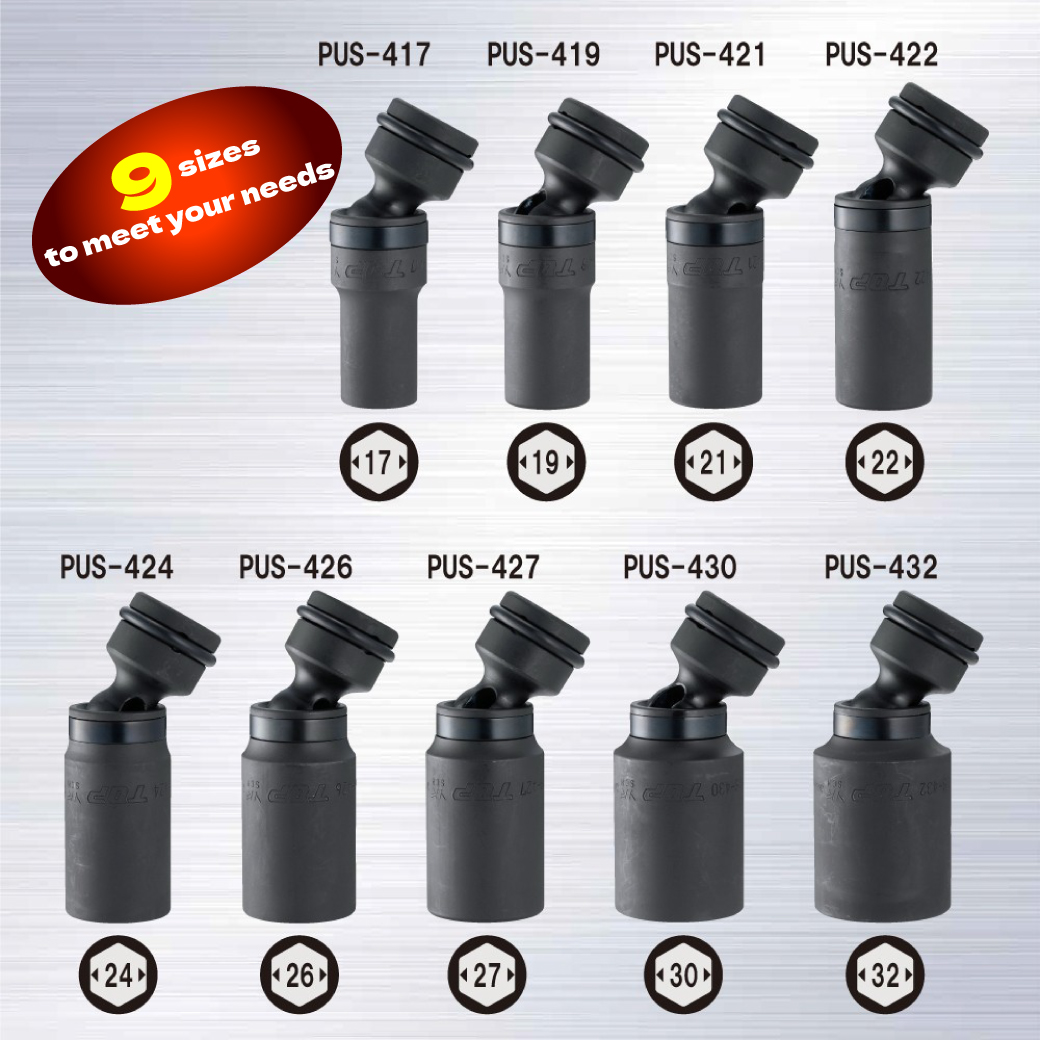

Square Drive 12.7mm 9 sizes to meet your needs

  • Click here for detail of  IMPACT UNIVERSAL SOCKET.

Square Drive 12.7mm 9 sizes to meet your needs





Material：SCM435

Square Drive 12.7mm 9 sizes to meet your needs

Item No. JAN Code List Price
(￥)		 Square Drive
(mm)		  Width Across Flats
S(mm)		 Swing Angle Length

L
(mm)

 ℓ
(mm)		 Weight
(ｇ)
PUS-417 738608 7,150 12.7 17 30° 93.5  60 275
PUS-419 738622 7,300 12.7 19 30° 93.5  60 285
PUS-421 738639 7,400 12.7 21 30° 93.5  60 295
PUS-422 738646 7,450 12.7 22 30° 98.5  65 320
PUS-424 738660 7,500 12.7 24 30° 98.5  65 340
PUS-426 738677 7,850 12.7 26 30° 98.5  65 365
PUS-427 738684 7,930 12.7 27 30° 98.5  65 380
PUS-430 738707 8,250 12.7 30 30° 98.5  65 420
PUS-432 738714 8,500 12.7 32 30° 98.5  65 450
Item No. Socket Outside Diameter

D1 (mm)

 D2
(mm)		 d
(mm)		 H1
(mm)		 H2
(mm)		 Package(mm) O ring・ Pin Pin Inner Box
H×W
PUS-417  24.2 30 16  17  35  135×40 OP-4 OP-4-5P  5
PUS-419  26.7 30 18  19  35  135×40  5
PUS-421  29.2 30 20  21  35  135×40  5
PUS-422  30.5 30 21  22  40  140×40  5
PUS-424  33 30 23  24  40  140×40  5
PUS-426  35.5 30 25  26  40  140×40  5
PUS-427  36.7 30 26  27  40  140×40  5
PUS-430  40.5 30 29  30  40  140×40  5
PUS-432  43 30 31  32  40  140×40  5

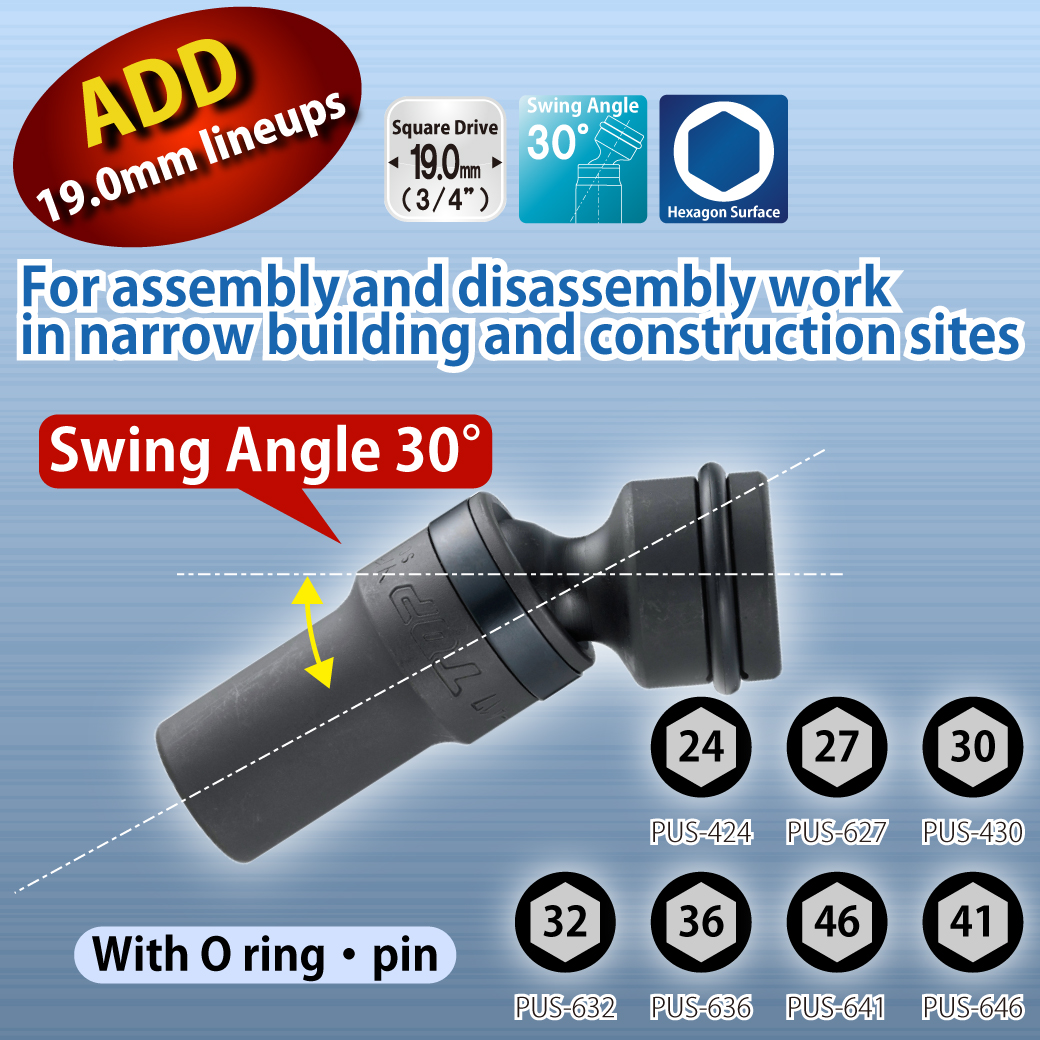

Square Drive 19.0mm, 7 sizes

Item No. JANCode List Price
(￥)		 Square Drive
(mm)		  Width Across Flats
S(mm)		 Swing Angle Length

L
(mm)

 ℓ
(mm)		 Weight
(ｇ)
PUS-624 739032 15,250 19.0 24 30° 146.8 100 1,000
PUS-627 739056 15,600 19.0 27 30° 146.8 100 1,045
PUS-630 739070 16,050 19.0 30 30° 146.8 100 1,090
PUS-632 739087 16,350 19.0 32 30° 146.8 100 1,145
PUS-636 739100 17,250 19.0 36 30° 146.8 100 1,290
PUS-641 739124 18,450 19.0 41 30° 146.8 100 1,445
PUS-646 739131 20,100 19.0 46 30° 146.8 100 1,650
Item No. Socket Outside Diameter

D1(mm)

 D2
(mm)		 d
(mm)		 H1
(mm)		 H2
(mm)		 Package(mm) O ring ・Pin Pin Inner Box
H×W
PUS-624  36.8 44 22 24 63 187×40 OP-6 OP-6-5P ―
PUS-627  40.5 44 25 27 63 187×40.5 ―
PUS-630  44.3 44 28 30 63 187×44.3 ―
PUS-632  46.8 44 30 32 63 187×46.8 ―
PUS-636 51.8 44 34 36 61 187×51.8 ―
PUS-641 58 44 39 38 60  187×58 ―
PUS-646 64.3 44 44 38 58 187×64.3 ―
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.

  • 6 points (round corners)

    6 points (round corners)6 points (round corners) socket has surface fit design which prevents damaging of bolts or nuts. 6 points sockets are standard for electric impact screw driver accessories.

  • impact wrench

    impact wrenchcan be used with impact wrench.

Use

  • Suitable for working in a narrow space.
  • For assembling and disassembly work in a narrow building and construction sites.

Caution

  • Please use the size that matches the width across flats of the bolt and nut.
  • Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
  • Using this tool slantly and shallowly to bolt and nut might be the cause of breakage.
  • DO NOT use for anything other than the purpose of use of hand tool.
