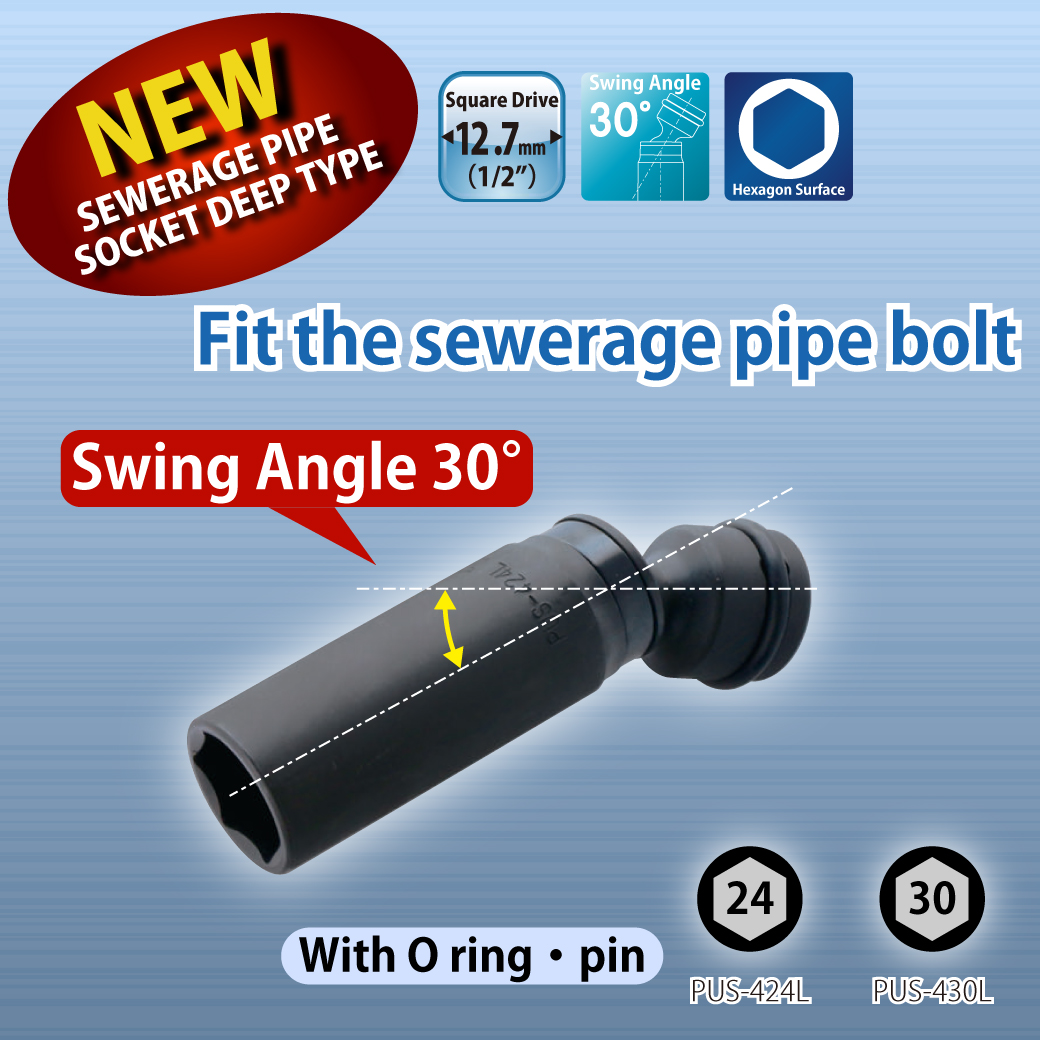

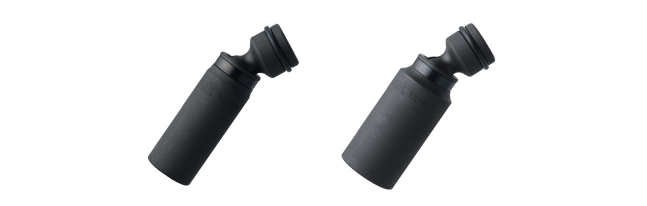

IMPACT SEWERAGE PIPE UNIVERSAL SOCKET

IMPACT SEWERAGE PIPE UNIVERSAL SOCKET(Square Drive 12.7mm)

  • IMPACT SEWERAGE PIPE UNIVERSAL SOCKET DEEP TYPE.

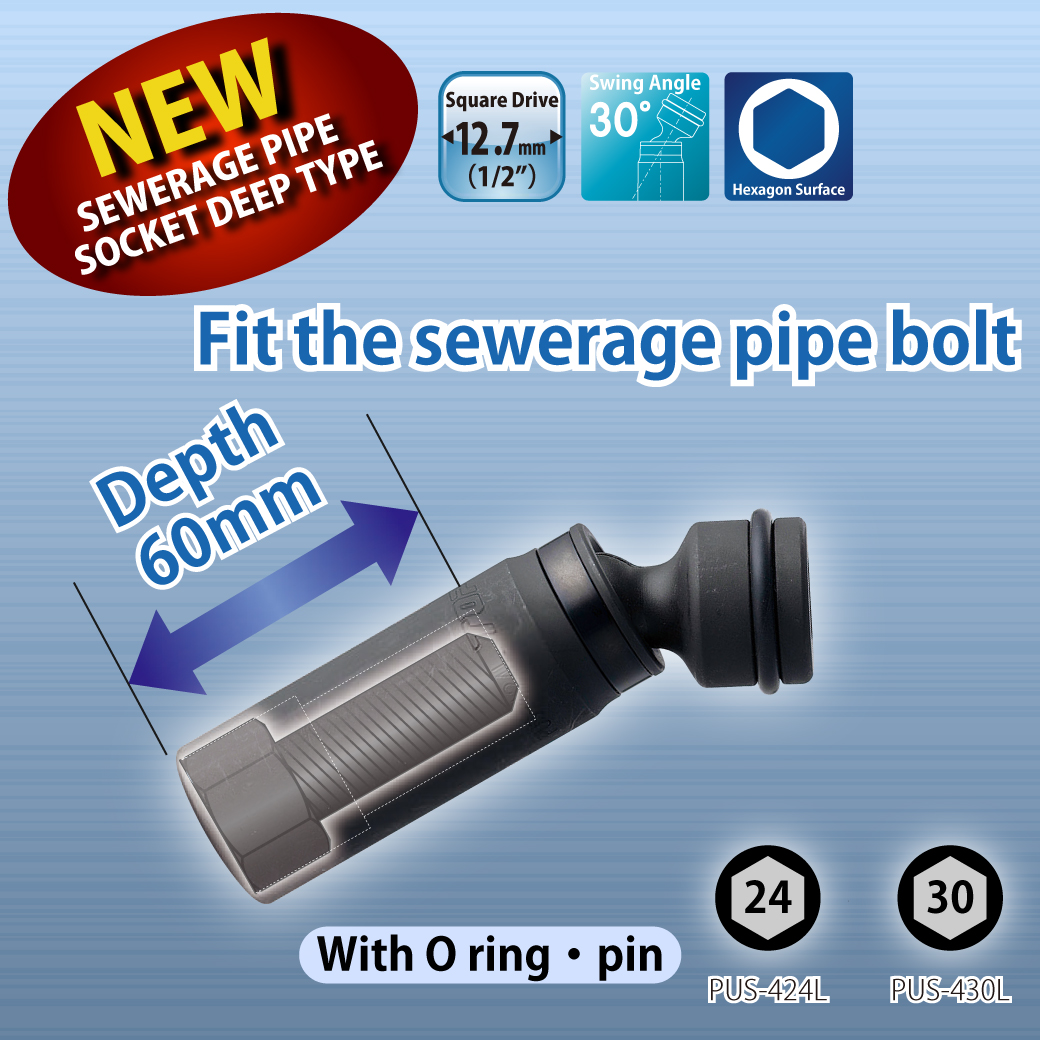

  • Depth 60mm, fit the sewrage bolt.
  • For tightening a water main or saddle ferrule.
  • Hexagon surface shape socket.
  • More lighter and compact than connected adapter and socket to use.
  • With O-ring and pin.

Material：SCM435

IMPACT SEWERAGE PIPE UNIVERSAL SOCKET DEEP TYPE 60mm

Item No. JAN Code List Price
(￥)		 Square Drive
(mm)		  Width Across Flats
S(mm)		 Swing Angle Weight
(ｇ)
PUS-424L 739384 8,750 12.7 24 30° 410
PUS-430L 739391 10,050 12.7 30 30° 530
Item No. Socket  Outside Diameter

D (mm)

 d
(mm)		 H
(mm)		 Socket Depth
(mm)		 Pacage

(mm)

 O ring ・Pin Pin Inner Box
H×W
PUS-424L  33 23  24  60  140×40 OP-4 OP-4-5P  5
PUS-430L  40.5 29  30  60  140×40 OP-4 OP-4-5P  5

*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.

PUS424L　PUS430L　PUS-424-L　PUS-430-L

  • deep socket

    deep socketdeep socket for quick double nuts operation. It also holds nut by depth.

  • 6 points (round corners)

    6 points (round corners)6 points (round corners) socket has surface fit design which prevents damaging of bolts or nuts. 6 points sockets are standard for electric impact screw driver accessories.

  • impact wrench

    impact wrenchcan be used with impact wrench.

Use

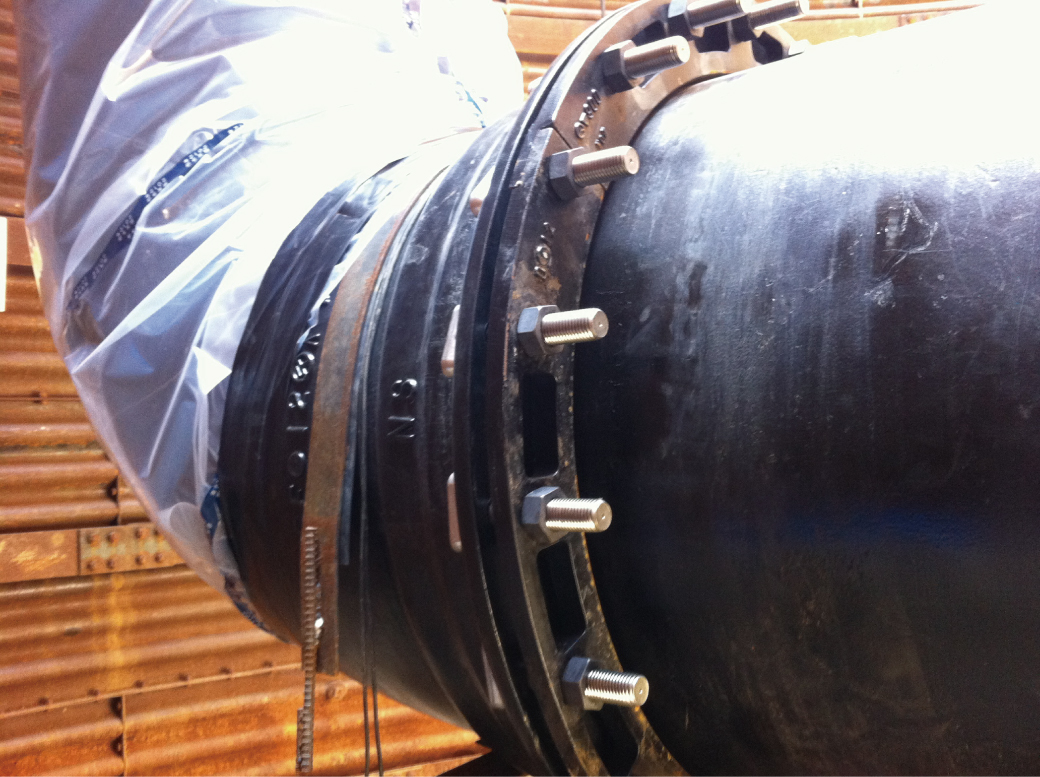

  • For tightening a water main or saddle ferrule nut.

Caution

  • Please be sure to attach the O-ring and pin to the impact wrench before starting a work.
  • Chose proper size witch match with the width across flats or bolt or nut.
  • Using this tool slantly and shallowly to bolt and nut might be the cause of breakage.
  • DO NOT use for anything other than the purpose of use of a hand tool.
