IMPACT SCAFFOLD CLAMP SOCKET

IMPACT SCAFFOLD CLAMP SOCKET(Square Drive 12.7mm)

  • A dodecagonal surface type that can be quickly set on scaffold clamps.
  • For attaching and detaching scaffolding clamps using an impact wrench.
  • With O ring and pin.
  • Use selected low material,  it is made in japan which provide the safety and security.
Item No. JAN Code List price
（￥）		 Nominal Size
（mm）		 Length L
（mm）		 Weight
（ｇ）		 Inner Box
ESS-17CP 223739 2,950 17 70 120 6
Item No. Socket Outside Diameter
D（mm）		 Dodecagon Depth
H（mm）		 Socket Depth
ℓ（mm）		 Package（mm） O ring・Pin Pin Material
H×W
ESS-17CP 24.2 30 45 110×40 EPW-4-OP EPW-4-5P SCM435

*Click here for a list of O rings and pins.

*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.

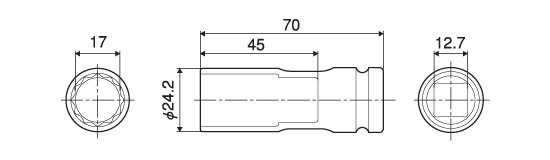

IMPACT SCAFFOLD CLAMP SOCKETDrawings

  • PAT.P

    PAT.PPATENT PENDING

  • 12 points (round corners)

    12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.

  • impact wrench

    impact wrenchcan be used with impact wrench.

Use

  • Suitable for attaching and detaching scaffolding clamps using an impact wrench.

Caution

  • Please be sure to attach the O ring and pin to the impact wrench before starting a work.
  • Using this tool slantly and shallowly to bolt and nut might be the cause of breakage.
  • DO NOT use for anything other than the purpose of use of hand tool.
