Material：Cr-V
| Item No. | List Price （￥） |
Opening Width （mm） |
Weight （g） |
Guaranteed Torque （N・m） |
Package （H×W） |
Inner Box | JAN Code |
|---|---|---|---|---|---|---|---|
| HY-26 | 3,450 | 7～26 | 115 | 163.9 | 205×70 | 6 | 150400 |
| HY-30 | 3,700 | 8～30 | 200 | 305.1 | 270×83 | 6 | 150417 |
| HY-36 | 4,750 | 8～36 | 270 | 305.1 | 300×92 | 6 | 150424 |
| HY-42 | 6,600 | 12～46 | 650 | 864.4 | 373×110 | 6 | 150431 |
| HY-26G | 3,850 | 7～26 | 120 | 163.9 | – | 6 | 150837 |
| HY-30G | 4,300 | 8～30 | 215 | 305.1 | – | 6 | 150844 |
| HY-36G | 5,350 | 8～36 | 285 | 305.1 | – | 6 | 150851 |
| HY-42G | 7,400 | 12～46 | 685 | 864.4 | – | 6 | 150868 |

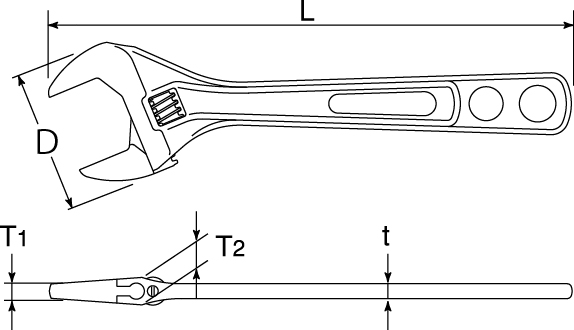

| Item No. | L （mm） |
D （mm） |
T1 （mm） |
T2 （mm） |
t （mm） |
|---|---|---|---|---|---|
| HY-26 | 162 | 49.5 | 5.5 | 10 | 5.5 |
| HY-30 | 210 | 59 | 6 | 12 | 6 |
| HY-36 | 240 | 65 | 6.5 | 13 | 6.7 |
| HY-42 | 315 | 84 | 9 | 17.5 | 9.2 |
| HY-26G | 163 | 49.5 | 5.5 | 10 | 7.5 |
| HY-30G | 211 | 59 | 6 | 12 | 8 |
| HY-36G | 241 | 65 | 6.5 | 13 | 8.7 |
| HY-42G | 316 | 84 | 9 | 17.5 | 11.2 |

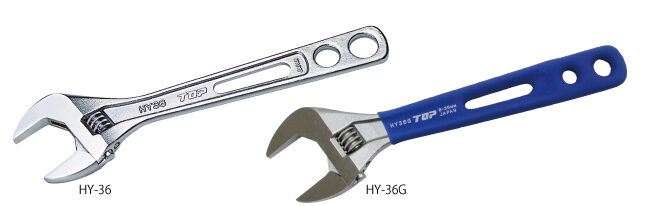

*Item No. finish with G is with Vinyl grip.
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
-
Light weight designEfficient performance with reducing weight and fatigue.
Use
- For attaching and detaching the water faucet, and repairing work.
- For intricated piping work such as the gas and air conditioner as well.
- It is used for a construction work and high-place work such as an electrical facility.
- Use as a maintenance tool.
Caution
- The jaw is designed not to close fully for compactness.
- Chose proper size which fits to both sides of a bolt and nut.
- DO NOT extend the handle by inserting a pipe.
- Please do not use this item as a hammer.
- Please attach a fall prevention accessory as you work at height. Recommend to use with our safety code.
- DO NOT use for purposes other than as a hand tool.
- DO NOT use it for a live wire. Vinyl grip is not insulated.
