Material:Cr-V
Item No. | List Price (¥) |
Opening Width (mm) |
Weight (g) |
Guaranteed Torque (N・m) |
Package (H×W) |
Inner Box | JAN Code |
---|---|---|---|---|---|---|---|
HY-26S | 4,150 | 7~26 | 100 | 163.9 | 170×70 | 6 | 151056 |

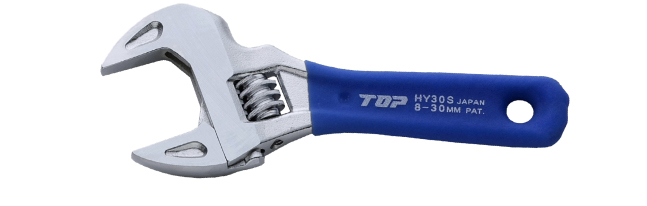

HY-30S | 4,400 | 8~30 | 160 | 305.1 | 200×83 | 6 | 151063 |
HY-38S | 5,650 | 8~38 | 215 | 305.1 | 210×92 | 6 | 151070 |
HY-49S | 6,900 | 12~49 | 450 | 508.5 | 250×110 | 6 | 150448 |
Item No. | L (mm) |
D (mm) |
T1 (mm) |
T2 (mm) |
t (mm) |
---|---|---|---|---|---|
HY-26S | 117 | 49.5 | 5.5 | 10 | 7.5 |
HY-30S | 142 | 59 | 6 | 12 | 8 |
HY-38S | 157 | 67 | 6.5 | 13 | 8.7 |
HY-49S | 184 | 91 | 9 | 16.5 | 11.2 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
Use
- Suitable for pipework for such as Plumber, Gas, Air Conditioner.
- Able to use this item in a narrow space.
- Please use this item as maintenance tool for various occasion.
Caution
- Due to pursuing the compactness, the jaw doesn’t close the end.
- Please use to adjust width across flats of bolt and nut.
- DO NOT extend the handle by inserting a pipe.
- DO NOT use this item as a hammer.
- The plastic grip doesn’t have an insulation function so, DO NOT while the electrics are on.
