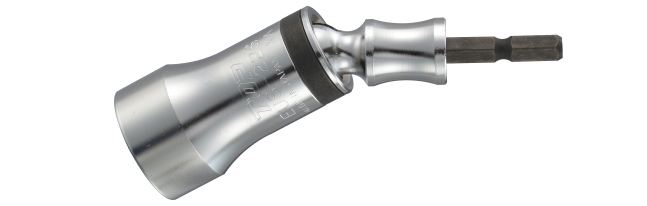

UNIVERSAL SHORT SOCKET BIT

UNIVERSAL SHORT SOCKET BIT

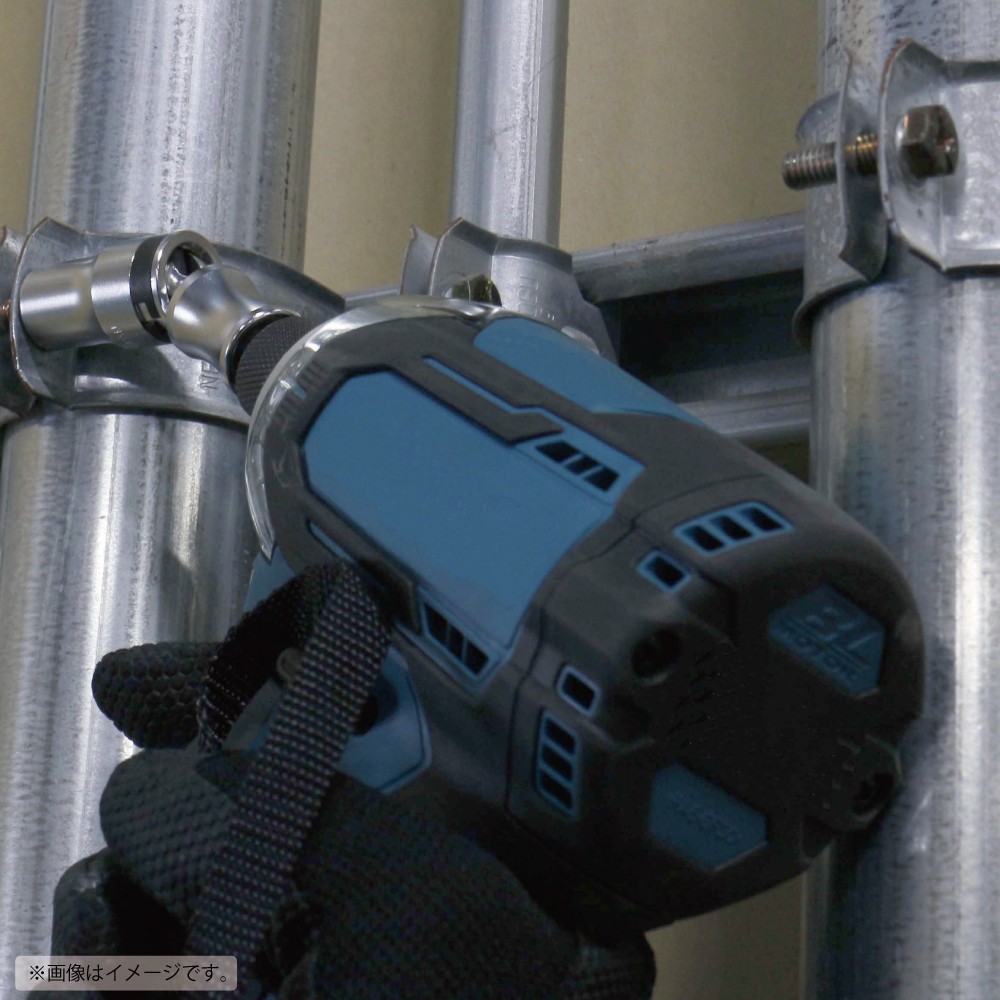

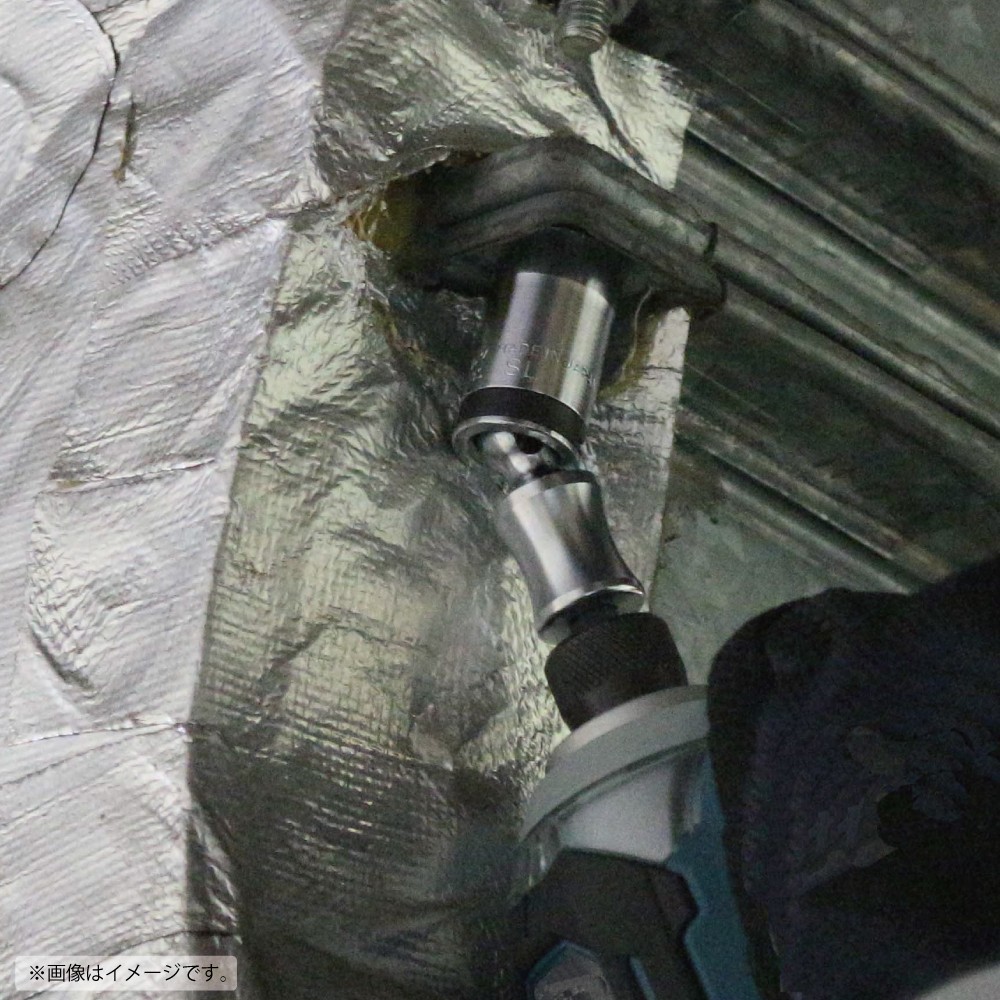

Oscillation angle 30°. Easy to use at narrow space.

  • Hexagon shank is 6.35 mm. quick attach to impact driver.
  • Hexagon Surfaace not to damage bolt/nut.
  • 100% made in Japan to provide safety. use only selected materials.

Material:SCM435

Item No.  JAN code List price
(¥)
Opposite side Dimension
S(mm)
L(mm) Weight
(g)
Inner Box
EUS-7S 222503 3,430 7 84.5 68 6 pcs
EUS-8S 222510 3,430 8 84.5 70 6 pcs
EUS-10S 222527 3,430 10 84.5 72 6 pcs
EUS-12S 222534 3,430 12 84.5 75 6 pcs
EUS-13S 222541 3,480 13 84.5 75 6 pcs
EUS-14S 222558 3,480 14 84.5 75 6 pcs
EUS-17S 222565 3,730 17 99.5 125 6 pcs
EUS-19S 222572 3,900 19 99.5 125 6 pcs
EUS-21S 222589 4,000 21 104.5 136 6 pcs
EUS-22S 222657 4,000 22 104.5 140 6 pcs
EUS-24S 222596 4,380 24 109.5 160 6 pcs
Item No. Socket Outside
D(mm)
Hexagon Depth
H(mm)
Socket Depth
ℓ1(mm)
Socket Depth
ℓ2(mm)
Package(mm) Torque (N・m)
H×W
EUS-7S 11 5 15 32 136×35 75
EUS-8S 12.7 6 15 32 136×35 75
EUS-10S 14.5 7 15 32 136×35 75
EUS-12S 17.5 8 15 32 136×35 75
EUS-13S 18.2 8 15 32 136×35 75
EUS-14S 19.7 9 15 32 136×35 75
EUS-17S 23.5 12 25 46 152×35 75
EUS-19S 26 12 25 46 152×35 75
EUS-21S 28.5 13 30 51 157×35 75
EUS-22S 29.5 13 30 51 157×35 75
EUS-24S 32.8 15 35 56 162×35 75
※JAN codes are shown without the first 7 digital number of maker code (4975180).
※List Price is for each unit.

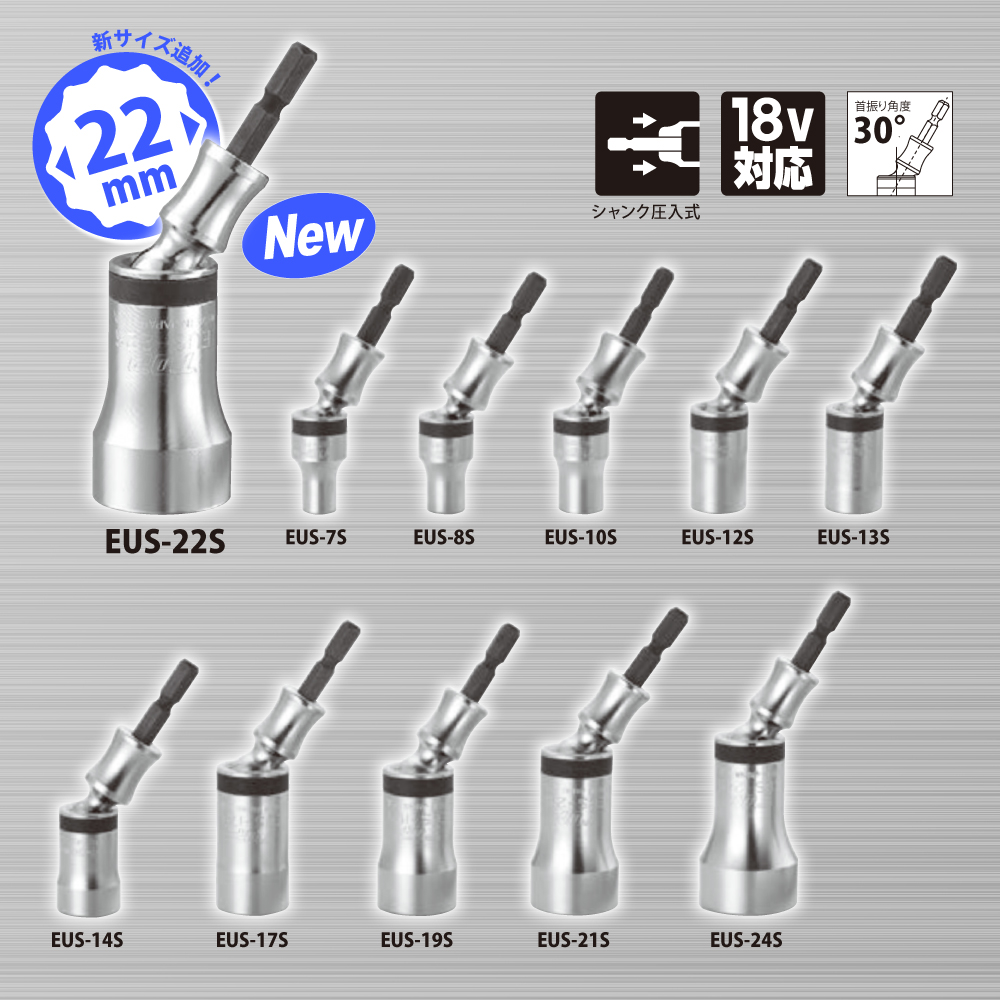

EUS7S EUS8S EUS10S EUS12S EUS13S EUS14S EUS17S EUS19S EUS21S EUS22S EUS24S
  • electric impact screw drivers

    electric impact screw driversIt can be used by ordinary electric impact screw drivers.

  • Inserted shank

    Inserted shankThe shank is heat treated and inserted into socket by force. It endures twist and breakage.

  • impact drill driver

    impact drill driverimpact drill driver which is more powerful than ordinary electric impact screw drivers.

  • 18V acceptable

    18V acceptableIt can be used for more torqueful 18V electric impact screw drivers.
