Material:S45C(Body)/SKS2(Dice)
Item No. | List Price (¥) |
Screw size /Specification | Set Screw | Weight (g) |
Inner Box | JAN Code |
---|---|---|---|---|---|---|

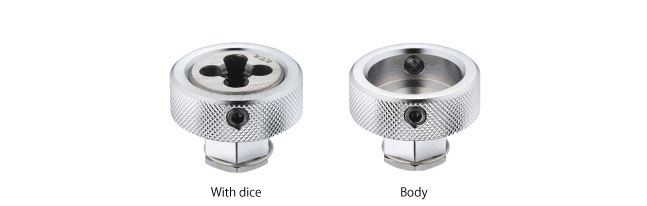

NA-25-3 | 6,300 | W3/8
(With dice) |
M6(Width across flats 3mm)
|
85 | 6 | 895592 |
NA-25 | 2,700 | Dice Diameter 25mm
(Body only)
|
M6(Width across flats 3mm) | 65 | 6 | 895837 |
NA-38-M16 | 8,800 | M16×2.0 (With dice) |
M6(Width across flats 3mm) | 220 | 6 | 895622 |
NA-38 | 3,550 | Dice Diameter 38mm (Body only) |
M6(Width across flats 3mm) | 150 | 6 | 895882 |
NA-50 | 5,250 | Dice Diameter 50mm (Body only) |
M8(Width across flats 4mm) | 220 | 6 | 810502 |

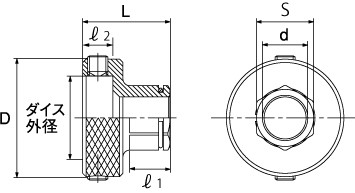

Item No. | L (mm) |
ℓ1 (mm) |
ℓ2 (mm) |
D (mm) |
S (mm) |
d (mm) |
---|---|---|---|---|---|---|
NA-25-3 | 26 | 12 | 9 | 35 | 17 | 12.5 |
NA-25 | 26 | 12 | 9 | 35 | 17 | 12.5 |
NA-38-M16 | 33 | 15 | 13 | 49 | 24 | 16.5 |
NA-38 | 33 | 15 | 13 | 49 | 24 | 16.5 |
NA-50 | 40 | 19 | 16 | 61 | 32 | 26.3 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
*The price is for each unit.
*Bolt and nut chart is here.
NA253 NA25 NA38M16 NA38 NA50 ねじ修正アダプター ねじ山修正アダプター ネジ山修正アダプター ねじ山修正ツール ネジ山修正器 NA25-3 NA25 NA38-M16 寸切りボルト

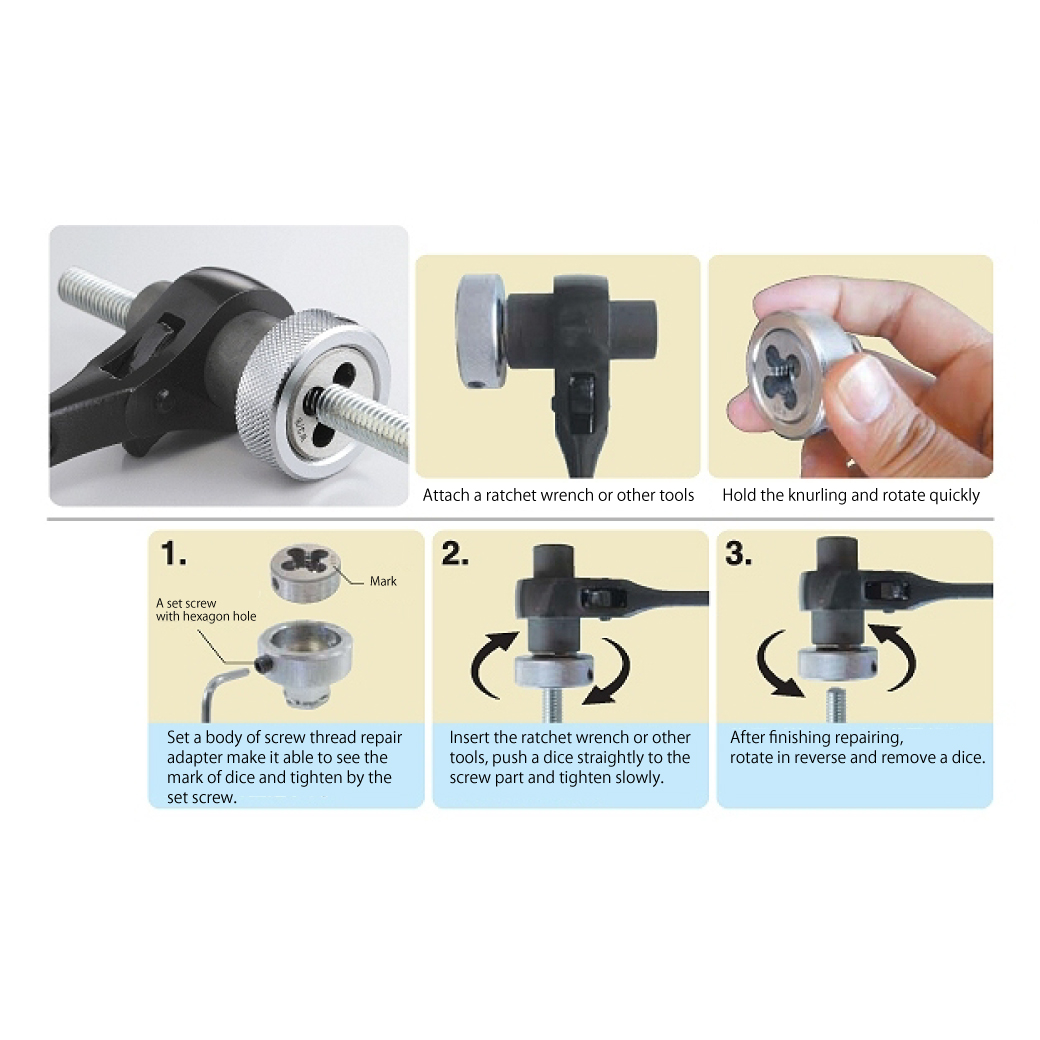

Use
- Repair the damaged thread.
Caution
- For repairing the screw thread only, not for engraving.
- DO NOT use it to be slantingly and apply excessive force.
- CANNOT attach the hexagon socket.
- Please DO NOT use as any other purposes than as hand tool.
- DO NOT use for a heat-treated bolt.
