ADJUSTABLE GRINDER SPANNER

ADJUSTABLE GRINDER SPANNER

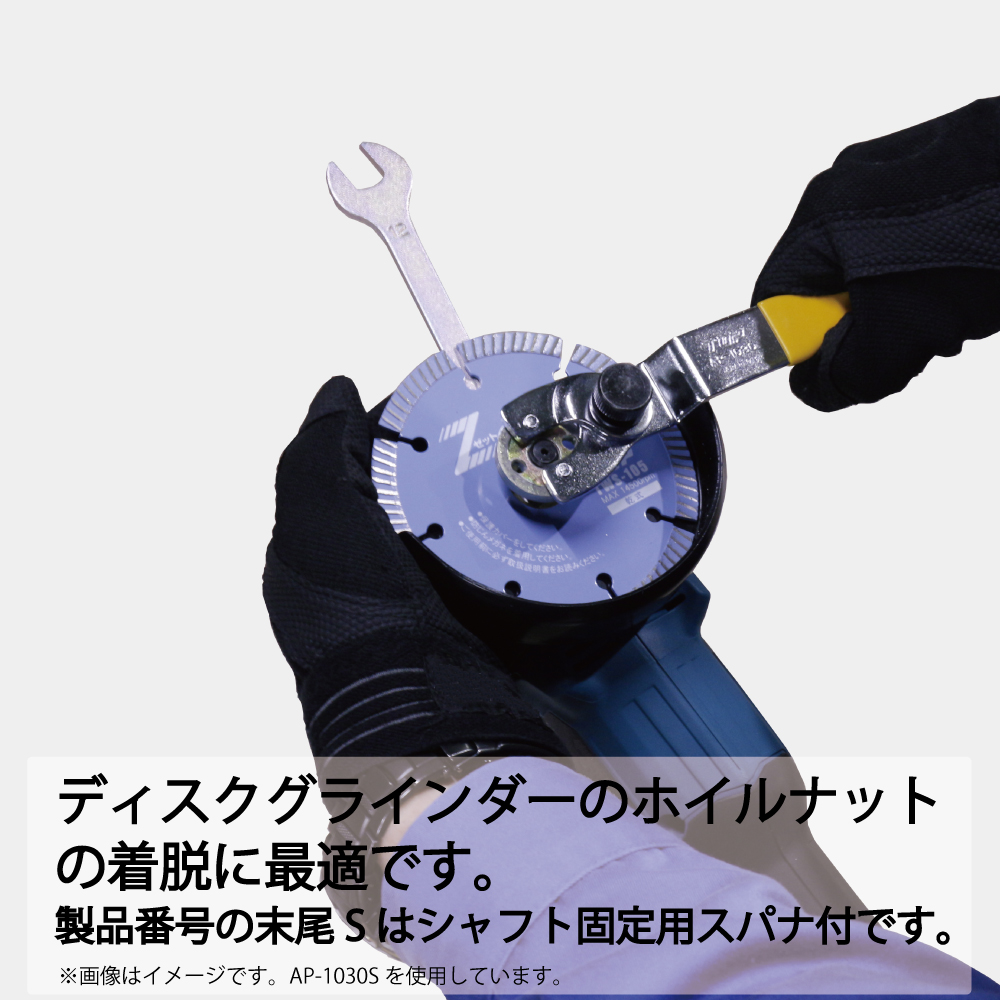

  • For attaching/detaching wheel nut of disc grinder.
  • Able to use for each makers’ wheel nut of disc grinder.

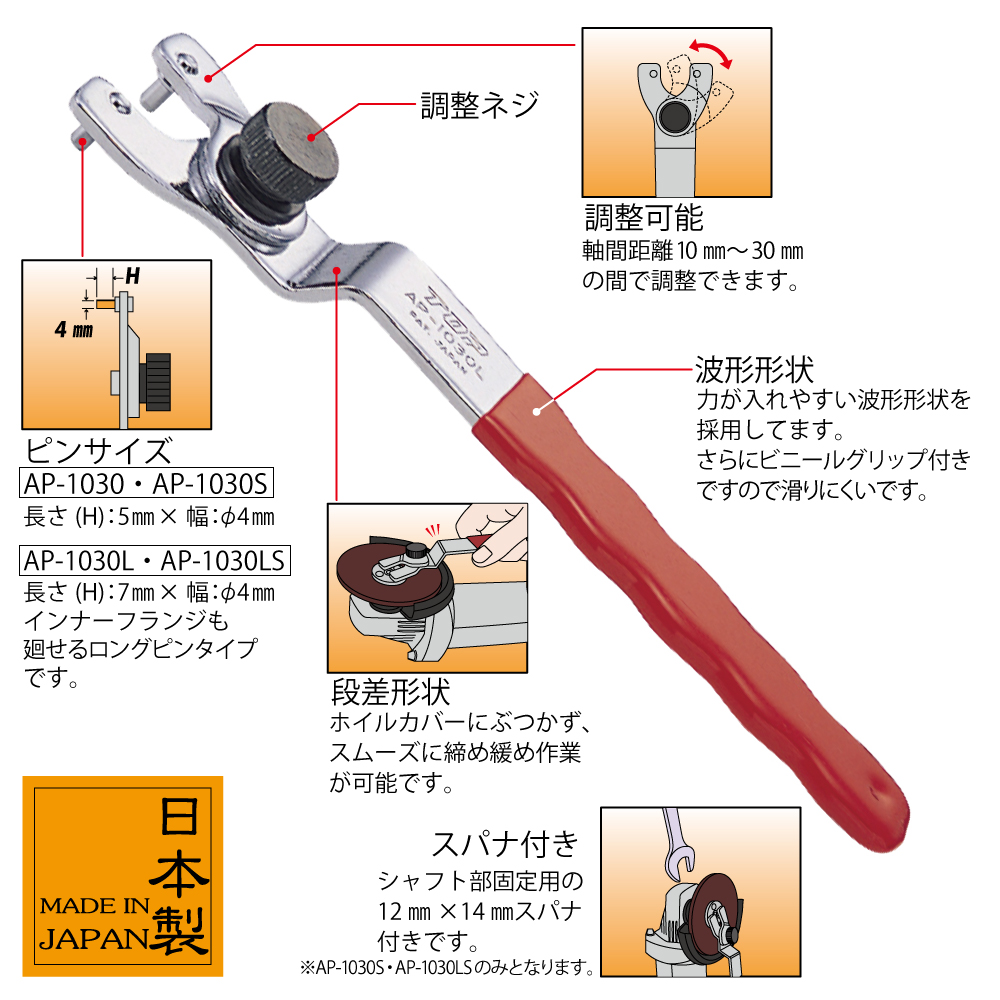

  • AP-1030L・1030LS has 7mm pin. Easy to rotate inner flange.

Item No. List Price
(¥)
Inter Axial
(mm)
H
(mm)
W
(g)
Inner Box JAN code

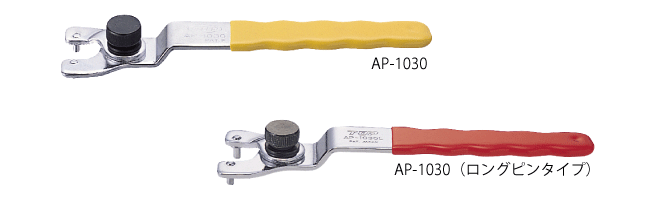

AP-1030 1,050 10~30 5 150 10 640413
AP-1030S 1,300 10~30 5 195 10 640680
AP-1030L 1,300 10~30 7 155 10 640765
AP-1030LS 1,550 10~30 7 200 10 640840

Item No. finished with S is with Plate Spanner.

●Able to purchase plate spanner separately.

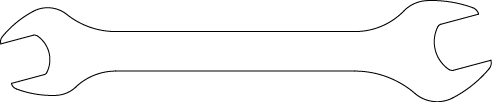

AP-12X14
Parts Name Item No. List Price(¥) JANcode Specification
Plate Spanner AP-12×14 250 936745 Spanner (Part of AP-1030S)
L:140mm  T:3.5mm

※JAN codes are shown without maker code (4975180)
※List Price is for each unit.
Item No.  AP-1030 AP-1030S AP-1030L AP-1030LS AP-12X14

ADJUSTABLE GRINDER SPANNERDrawings

Use

  • For attaching/detaching wheel nut of disc grinder.

Caution

  • Insert pin to wheel nut properly.
  • Tighten adjust screw certainly to fix the pin. It may damage pin/wheel nut if you use under non appropriate condition.
