PLASTIC CUTTING PLIERS

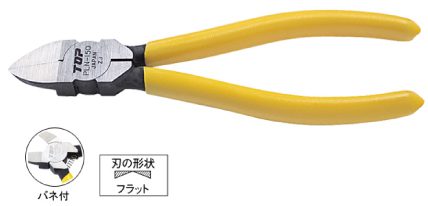

PLASTIC CUTTING PLIERS(Slant flat edge)

  • The blade has processed to thin and has a sharp cutting edge.
  • The blade is a flat type and cut section of material straightly.
  • PLN-125 has a stopper to support opening and closing of the grip.
  • Easy to grip. Hard grip.
  • The spring makes it easy to work long.
  • The spring is exchangeable.

Material:Cr-V

Item No. JAN code Price(¥) range of use(mm) height(mm) weight(g) QTY
PLN-125 455949 4,650 φ5(Plastic) 124 65 6
PLN-150 456168 5,100 φ8(Plastic) 165 160 6
Item No. Head wideness(mm) Head thickness(mm) Blade length(mm) Grip wideness(mm) Mount(mm)
D T H×W
PLN-125 11.4 8 15 50 190×70
PLN-150 20 11 23 50 220×70

PLASTIC CUTTING PLIERSDrawings

Use

  • Suitable for cutting all the plastics.

Caution

  • It’s designed for cutting plastics. do not cut iron wires.
  • Must to wear eye protector.
  • The grip is non-insulation. please be careful to electrification.
  • Please do not use for any purposes than for hand tools
