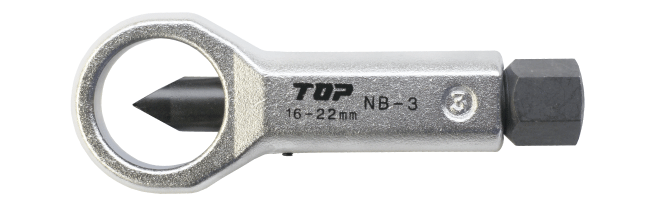

NUT BREAKER

NUT BREAKER

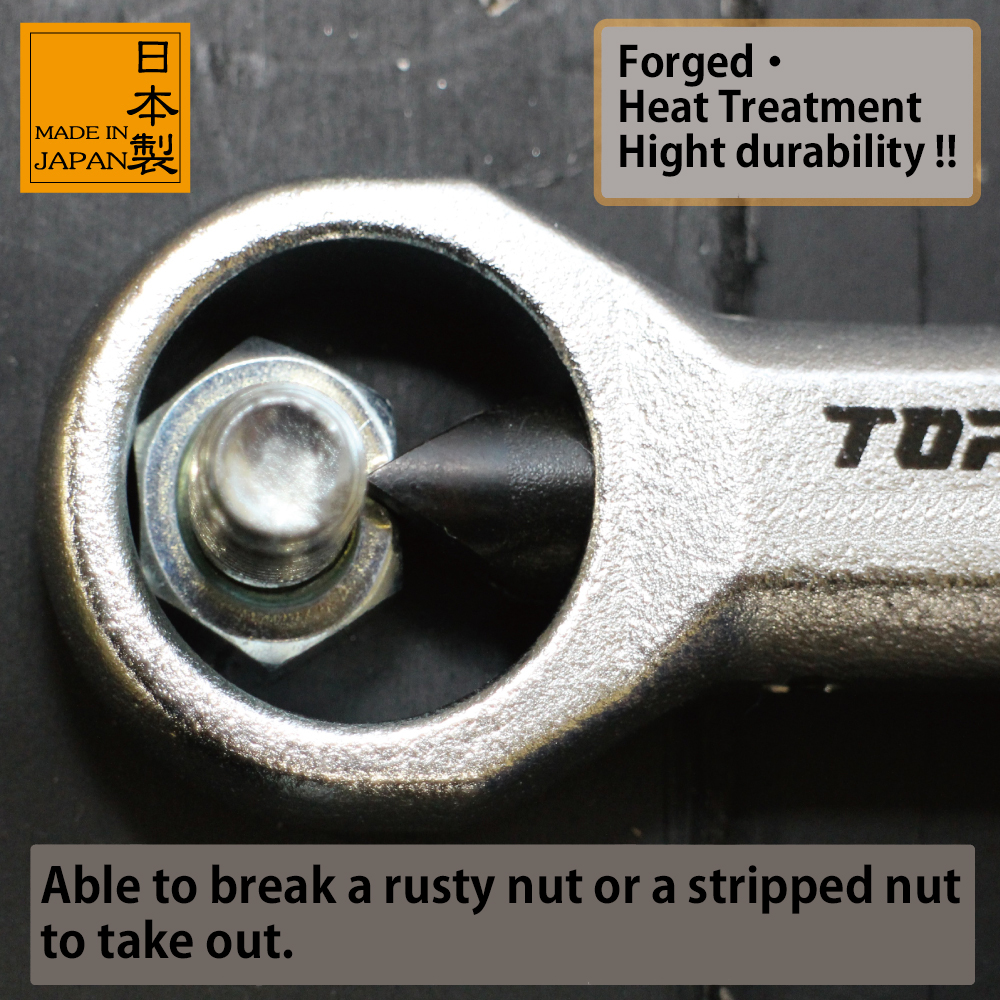

  • Able to remove rusted/damaged nut by breaking the nut.
  • Forged・Heat treated Item. High resistance.

nb_%e4%bd%bf%e7%94%a8%e4%be%8bnb_%e4%bd%bf%e3%81%84%e6%96%b9nb_%e5%90%84%e3%82%b5%e3%82%a4%e3%82%ba_hp%e7%94%a8



Item No. Price
(¥)
Width across flats of target nut
(mm)
L
(mm)
D
(mm)
T
(mm)
t
(mm)
S
(mm)
Weight
(g)
Inner Box JAN Code

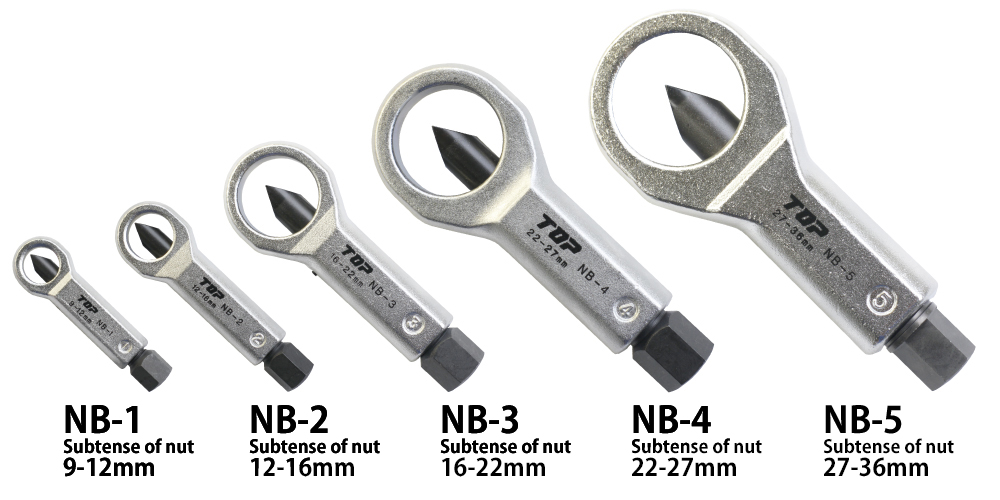

 NB-1  3,350  9~12  75  22  8.5  13  12  80  6 366504
 NB-2  4,000  12~16  100  29  10.5  16  14  160  6 366511
 NB-3  4,650  16~22  128  45  14.5  21  19  350  6 366528
 NB-4  5,600  22~27  148  57  16.5  25  21  600  6 366535
 NB-5  13,200  27~36  170  67  22  30  19  1,000  6 366542

※JAN code is shown with 6 digital numbers removed maker code (4975180)
※The price is for each unit.

nb_%e8%a3%9c%e4%bf%ae%e9%83%a8%e5%93%81

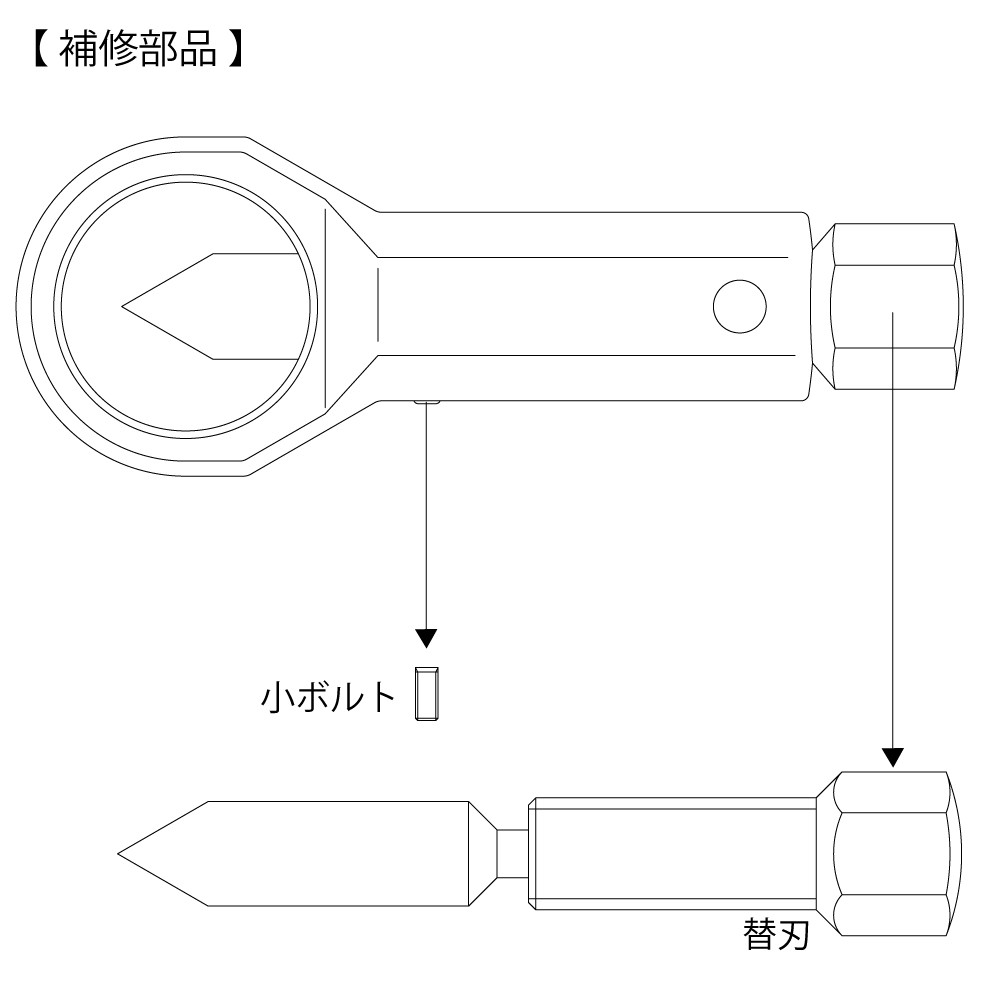

【 Spare blade・Bolt Set 】

Item No. Price
(¥)
JAN Code Specification
NB-1K 1,700 366689 For NB-1
NB-2K 2,050 366696 For NB-2
NB-3K 2,350 366702 For NB-3
NB-4K 2,900 366719 For NB-4
NB-5K 9,450 366726 For NB-5

Able to purchase spare blade/small bolt separately. The price is opened.

※JAN code are shown with 6 digital numbers removed maker code (4975180).
※Price is for each unit.

Item No. NB-1 NB-2 NB-3 NB-4 NB-5 NB-1K NB-2K NB-3K NB-4K NB-5K

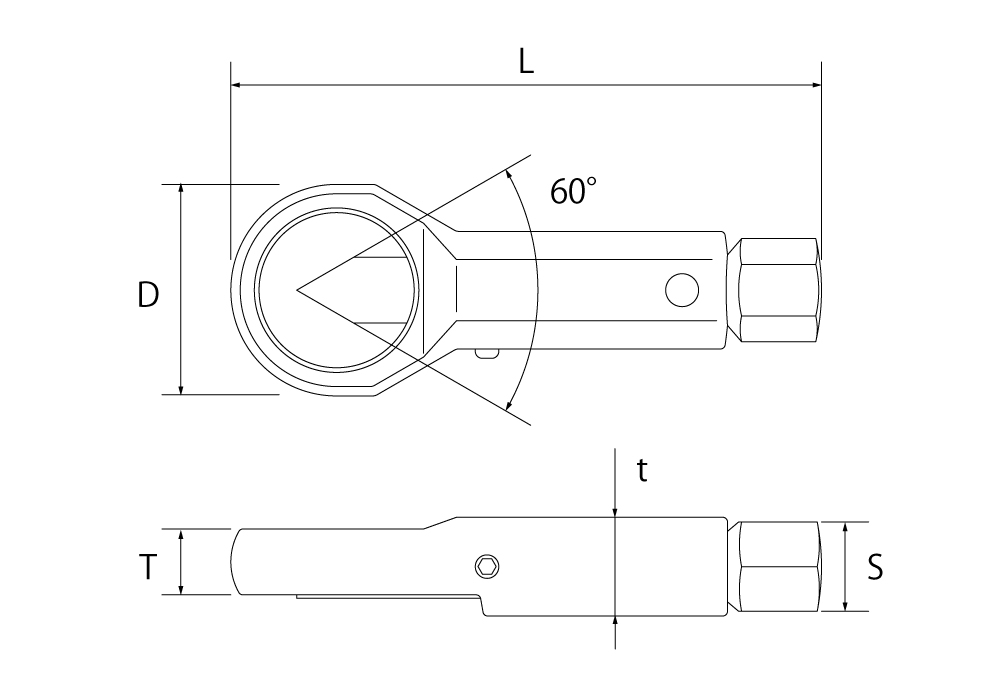

NUT BREAKERDrawings

Use

  • For breaking rusted nut/stacked nut.

Caution

  • Not able to cut stainless steel nut nor heat treated nut.
  • DO NOT use with Impact Driver.
  • Please make sure to use blade which width is wider than thickness of nut.
  • DO NOT make blade cut into nut to turn. It may break blade.
  • DO NOT use any other purposes than as hand tool.
