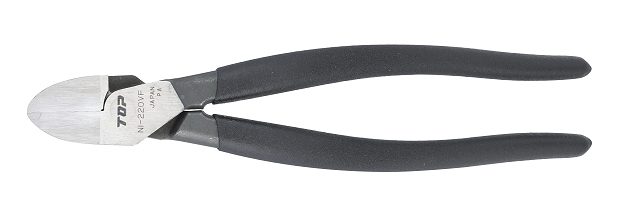

ECCENTRIC SLANT EDGE CUTTING PLIERS

ECCENTRIC SLANT EDGE CUTTING PLIERS(Flat Nose)

Cut 3 core lines at the same time.

NI-220VF NI-220VF
  • easy cut.
  • A fulcrum of Eccentric principle of lever provide less power to cut.
  • Thin cutting edge.
  • Thin and flat nose. suitable for fine work.
  • Designed nose for cutting VVF wire  (up to φ2.6-3 core line).
  • Applied induction hardening on the nose.
  • With Hard Grip.

Material：S70C-V

Item No. JANcode List Price(￥) Cutting Ability（mm） L（mm） W（ｇ） Inner Box
NI-220VF 450807 7,500 ･3 Core Lines：φ2.6 ･Copper wire：φ3.5 218 250 6 pcs
Item No. ℓ（mm） D（mm） T（mm） H（mm） Package（mm）
H×W
NI-220VF 36 26 12 50 266×82
※JAN code are shown with 6 digital numbers removed maker code(4978150).
※The list price is for each unit.

Item No. NI-220VF

ECCENTRIC SLANT EDGE CUTTING PLIERSDrawings

  • It can be used by hand operation.

    It can be used by hand operation.This item can be used for not only electric impact screw drivers but also hand tools.

Use

impact

  • VVF線などの各種被覆線
  • 銅線などの金属線の切断に
  • 電気工事
  • 空調設備作業などに

Caution

  • The grip is not inslator. Be aware of electrification.
  • As the nose is thin, do not cut hard iron wire.
  • Wear eye protector to cut wires.
  •  Use for only wires within the ability.
  • Do not use as any other purposes than as hand tool.
