ADJUSTABLE WRENCH

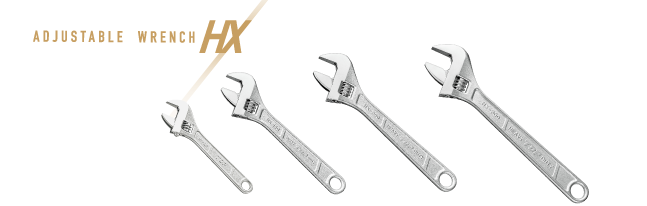

ADJUSTABLE WRENCH(HX series)

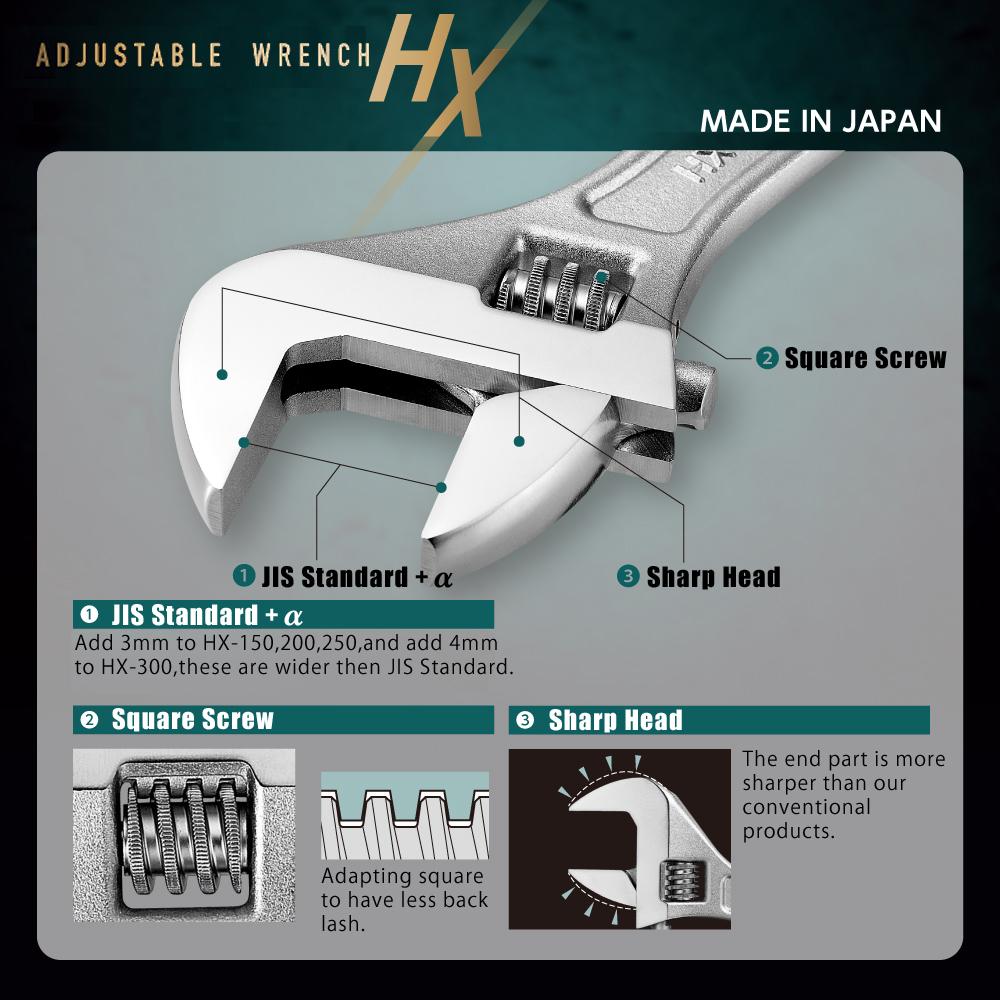

  • Wide open jaw. The size is JIS standard +@
  • Adopting a square screw to have less backlash.
  • The head is more sharper than our conventional products.


Material：Cr-V

Item No. List Price
（￥）		 Opening Width
（mm）		 Weight
（g）		 Package
（H×W）		 Inner Box JAN Code
HX-100 3,700 0~15 50 170×60 6 108043
HX-150 3,600 0～23 110 205×65 6 108128
HX-200 3,950 0～27 230 255×70 6 108203
HX-250 4,950 0～32 390 305×80 6 108395
HX-300 6,700 0～38 620 360×90 6 108470
HX-375 13,000 0~48 1,200 385×95 6 108555
HX-450 18,150 0~58 1,930 465×95 1 108630
HX-600 33,600 0~68 3,500 1 108715
Item No. L
（mm）		 D
（mm）		 T1
（mm）		 T2
（mm）		 t
（mm）
HX-100 110 33.5 5.5 8.5 5
HX-150 159 47 6 10 5.2
HX-200 208 57.5 7.5 13 6.7
HX-250 258 70 9 14.5 7.7
HX-300 308 83 10 17.5 9.2
HX-375 385 104 12 23 11.2
HX-450 465 120 15 27 13
HX-600 615 148 18 32 16
Item No. JIS
Guaranteed Torque
（N・m）		 Our Product

Guaranteed Torque

（N・m）

 JIS
Opening Width Size
（mm）		 Our Product
Opening Jaw Size
（mm）
HX-100 60.8  67.8 JIS Standard
+7.0N・m		 0~13 0~15 JIS Standard+2mm
HX-150 142.2 163.9 JIS JIS Standard
+21.7N・m		 0~20 0~23 JIS Standard+3mm
HX-200 247.6 305.1 JIS JIS Standard
+30.5N・m		 0~24 0~27 〃
HX-250 460.9 508.5 JIS JIS Standard
+47.6N・m		 0~29 0~32 〃
HX-300 784.5 864.4 JIS JIS Standard
+79.9N・m		 0~34 0~38 JIS Standard+4mm
HX-375 1,471  1,694.8 JIS JIS Standard
+223.8N・m		 0~44 0~48 〃
HX-450 2,259.5 0~58 Conventional product +5mm
HX-600 2,825.3 0~68 Conventional product +6mm
*JAN Codes are shown with 6 digital numbers which removed maker code (4975180).
*The price is for each unit.

  • PAT

    PATPATENTED

Use

  • For tightening and loosening bolts and nuts for maintenance inspection, assembly of machinery and equipment, and automobile maintenance and etc.

Caution

  • DO NOT extend the handle by inserting a pipe.
  • DO NOT hit with a hammer.
  • DO NOT use for purposes other than as a hand tool.
