SCAFFOLD ECO WIDE

SCAFFOLD ECO WIDE

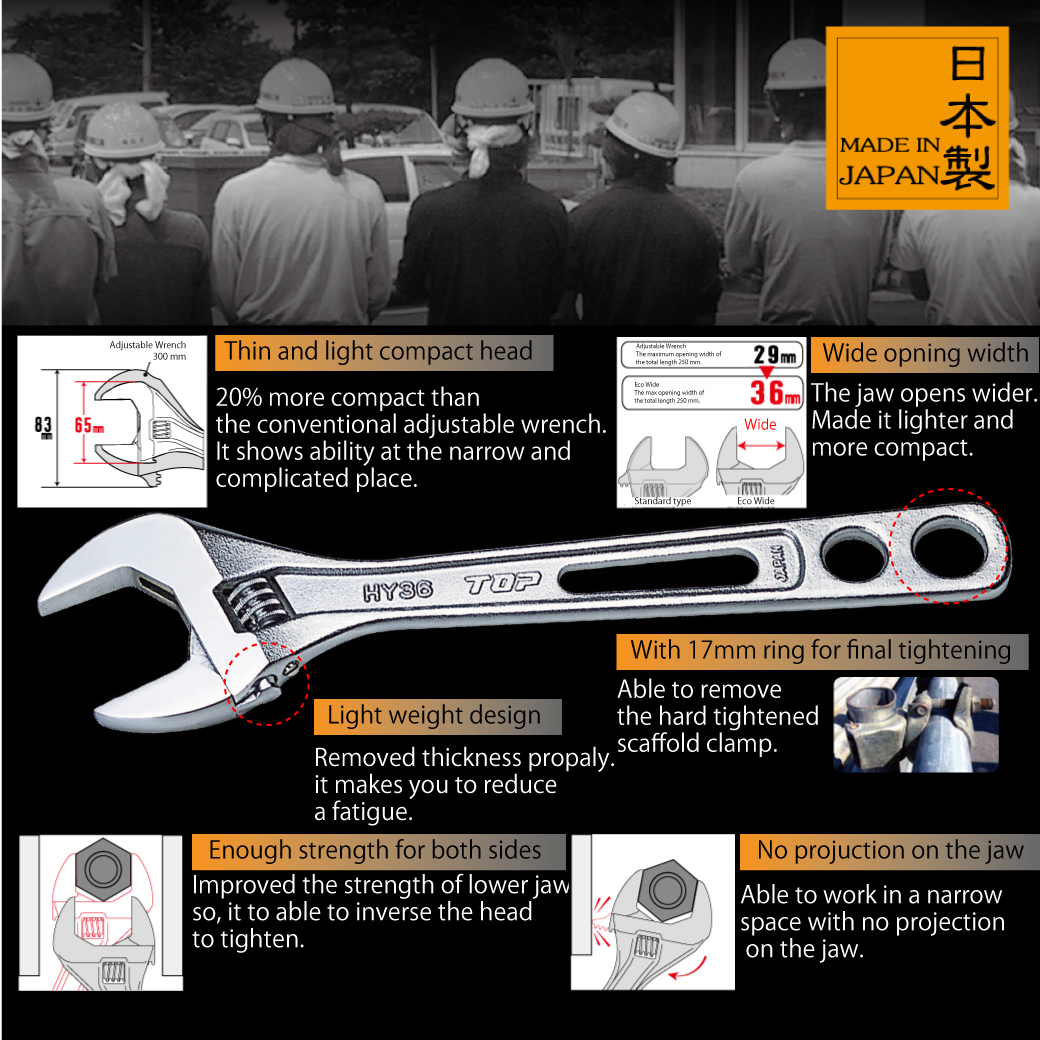

  • Wrench with 17mm ring. Suitable for assembling and demolitioning a scaffold clamp.
  • No projection on the Jaw. Suitable for using it in the narrow space.
  • Able to do a final tightening with 17mm ring.
  • Easy to remove a scaffold clamp.

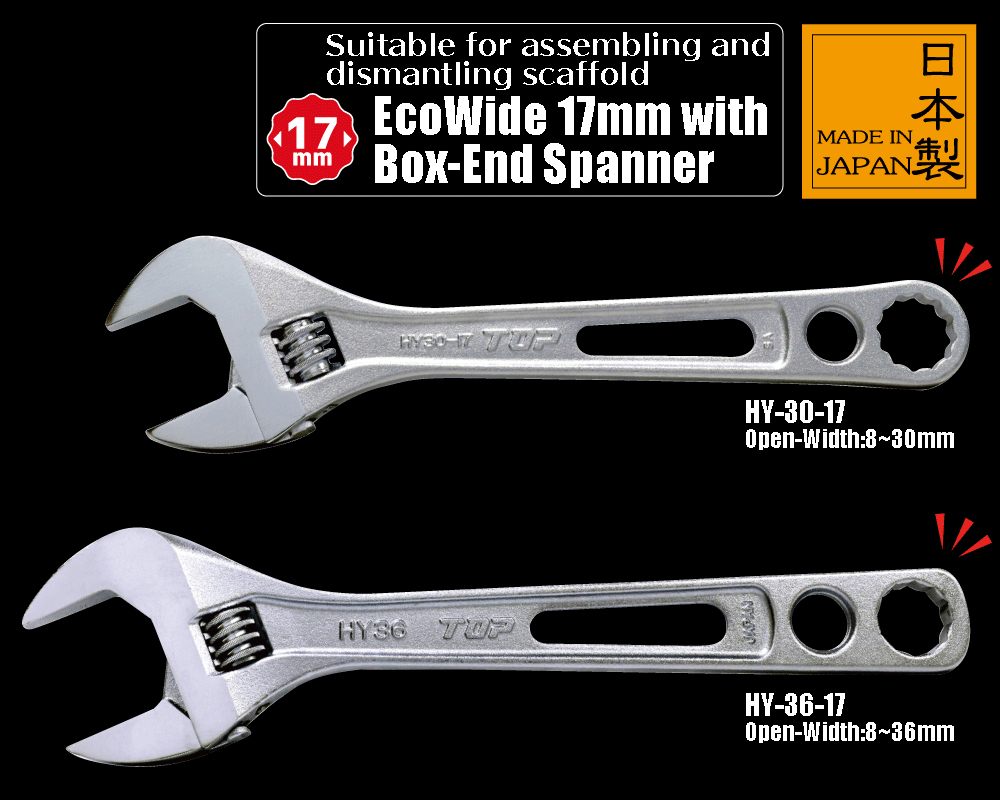

Eco Wide Wrench with 17mm ring. It is for suitable assembling and demolitioning a scaffold clamp.




Material:Cr-V

※The movie shows feature of Eco Wide Adjustable Wrench.



Item No. List Price
(¥)
Opening Width
(mm)
Weight
(g)
Adjustable wrench side
Guaranteed Torque(N・m)
Package Size
(H×W)
Inner Box JAN Code
HY-30-17 Opened 8~30 200 305.1 205×70 6 151551
HY-36-17 Opened 8~36 270 305.1 270×83 6 151568
Item No. L
(mm)
D
(mm)
T1
(mm)
T2
(mm)
t
(mm)
HY-30-17 210 59 6 10 5.5
HY-36-17 240 65 6.5 12 6

*The price is not normal pricing structure.
*JAN Codes are shown with 6 digital numbers which removed as maker code (4975180).
*The price is for each unit.

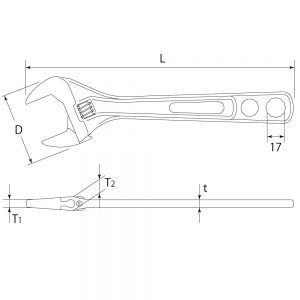

SCAFFOLD ECO WIDEDrawings

Use

  • Suitable for complicated plumbing works.
  • Wide usage. For working at high places, for construction works.
  • Also for as tools of maintenance.



Caution

  • Pursuing compactness, it doesn’t close till the end.
  • Please adjust the jaw to the width across flats of bolt and nut.
  • DO NOT extend the handle by inserting a pipe.
  • Do not use this item as a hammer.
  • Connect to safety code for fall prevention to use at height.
  • For higher safety, recommend to use with our safety code.
  • DO NOT use for purposes other than as a hand tool.
