Material：Body:S55C Socket:Cr-V
| Item No. | JAN Code | List Price
（￥） |
Range
（mm） |
Length
（mm） |
Weight
（ｇ） |
Inner Box |
|---|---|---|---|---|---|---|
| RM-17×19CSN | 389916 | 5,850 | 17・19 | 230 | 275 | 6 pcs |
| RM-17×21CSN | 389923 | 5,550 | 17・21 | 230 | 275 | 6 pcs |

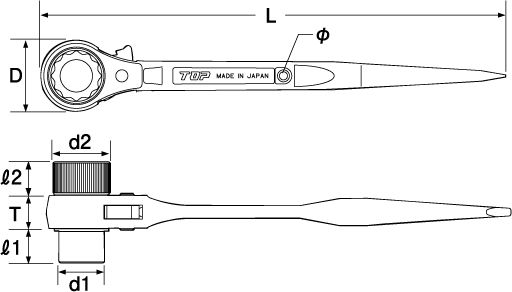

| Item No. | Head Diameter
（mm） |
Socket Diameter
（mm） |
Head Thickness
（mm） |
Socket Length
（mm） |
Guaranteed Torque
（N・m） |
|||
|---|---|---|---|---|---|---|---|---|
| D | d1 | d2 | T | ℓ1 | ℓ2 | Smaller | Bigger | |
| RM-17×19CSN | 35.0 | 23.0 | 26.0 | 16.0 | 17.0 | 17.0 | 225.5 | 269.7 |
| RM-17×21CSN | 35.0 | 23.0 | 28.5 | 16.0 | 17.0 | 17.0 | 225.5 | 308.9 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.

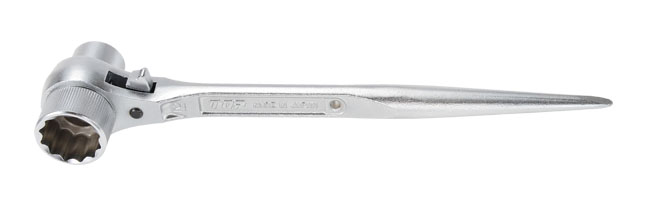

17x19CS RM-17x21CS
-
Light weight designEfficient performance with reducing weight and fatigue.
-
12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.
Use
- For scaffold assembling work and formwork.
- Sutable for scaffolders who work at height.
- Also for complicated water pipes or assembling facilities.
Caution
- Chose proper size which suits to the size of bolt and nut.
- DO NOT extend the handle by inserting a pipe.
- Please DO NOT use this item as a hammer.
- Connect to safety code for fall prevention to use at height.
- DO NOT use any other purposes than as hand tool.
